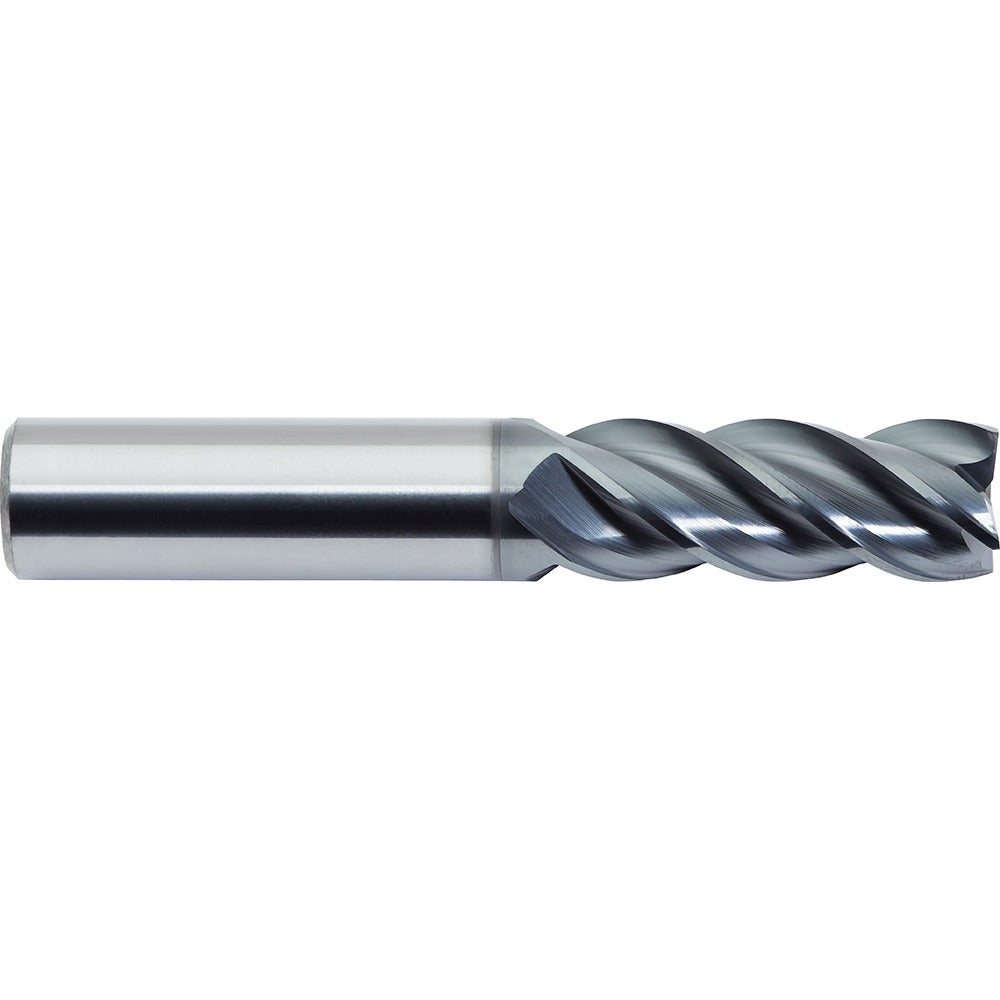

M.a. Ford 27750010B 1/2 in 4-flute Carbide End Mill Alcrn

Product Description

The M.A. FORD 27750010B is a solid carbide square end mill engineered for demanding milling operations in ferrous and non-ferrous materials. Built from micrograin carbide stock, it delivers the rigidity and edge retention needed for high-speed finishing and semi-finish passes. The 1/2-inch diameter cutter runs a 1-inch length of cut and 3-inch overall length on a 1/2-inch shank. An AlCrN coating resists heat buildup at the cutting edge, extending tool life in dry or near-dry machining environments. The variable helix geometry at 38 and 41 degrees reduces harmonic chatter, making this mill well suited for long-reach or thin-wall setups where vibration control matters.

This end mill is a single-end, right-hand cut, right-hand flute tool intended for use in CNC machining centers and manual knee mills where a 1/2-inch collet or end mill holder is available. Typical applications include slotting, profiling, and peripheral milling in tool steel, stainless, cast iron, and hardened alloys. The centercutting design allows plunge entry. Machinists and tool-and-die technicians working in job shops, production environments, and maintenance departments will find this a capable general-purpose cutter for medium-to-hard workpiece materials.

Key Features

• Micrograin solid carbide construction for superior edge retention and rigidity
• AlCrN coating extends tool life in high-temperature cutting conditions
• Variable helix at 38 and 41 degrees reduces chatter and improves surface finish
• Centercutting geometry enables direct plunge milling
• Right-hand cut and flute direction compatible with standard CNC spindle rotation
• Standard length profile fits most common tool holders and collet systems

Compatibility

Designed as a standard 1/2-inch shank square end mill compatible with 1/2-inch collets, shrink-fit holders, and set-screw style end mill holders used in CNC machining centers and conventional knee mills.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines for tool holding and runout specifications. Confirm spindle is powered off and locked before seating or removing the tool from the holder. Use a calibrated torque wrench on set-screw holders and verify tool runout with a dial indicator before beginning a cut. Follow applicable shop safety protocols and machine guarding requirements throughout the tool change process.
