M.a. Ford. 27243310 Chucking Reamer 11mm Solid Carbide

Product Description

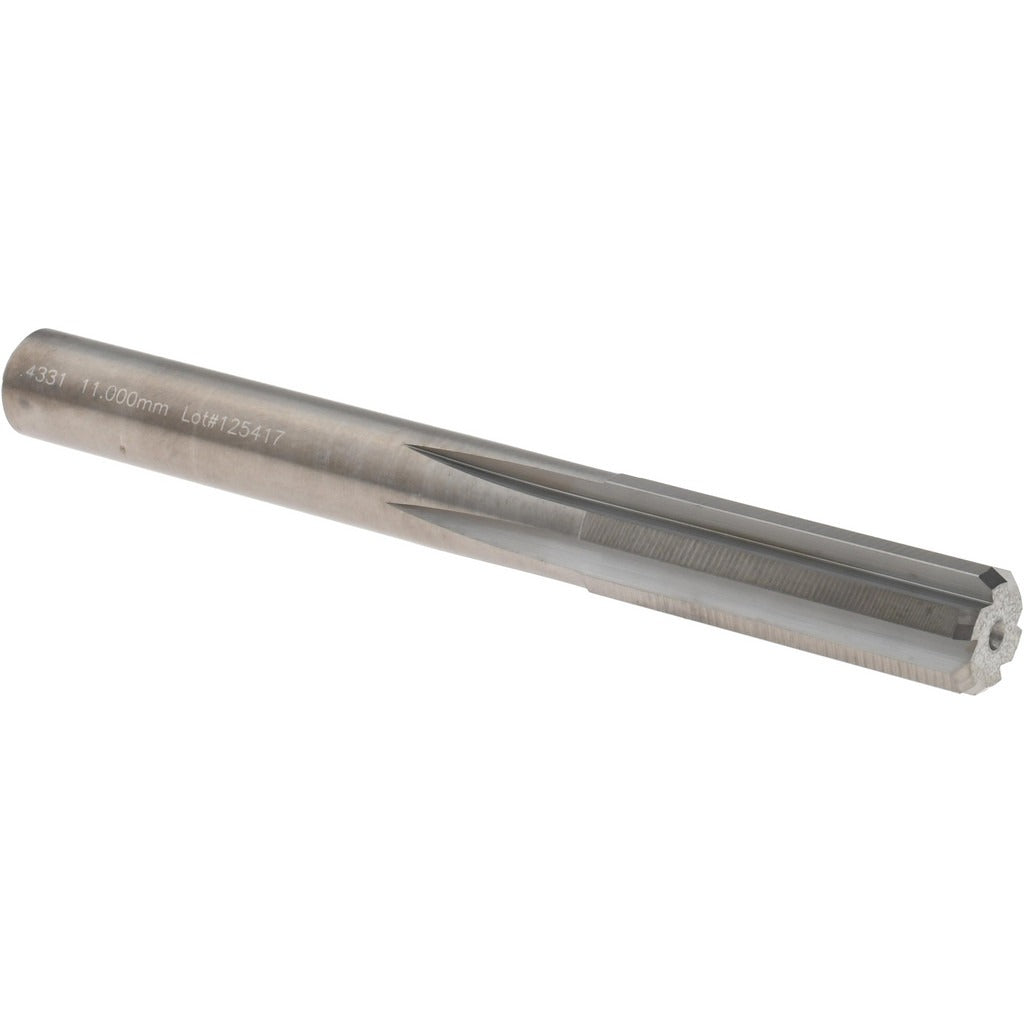

The M.A. FORD. 27243310 is a solid carbide chucking reamer designed for precision hole finishing in metalworking and machining applications. It carries a 11.00mm (0.4331 inch) diameter with a tolerance of +0.008 to +0.015mm, making it suitable for close-tolerance bore work. The reamer features 6 straight flutes with right-hand cutting and right-hand spiral direction. Overall length is 102.00mm (approximately 4.02 inches) with a flute length of 35.00mm (approximately 1.38 inches). The bright, uncoated solid carbide construction provides rigidity and wear resistance in a range of workpiece materials. It is part of the M.A. FORD. Series 272 line.

This chucking reamer is used in machine shop environments for reaming drilled or bored holes to precise finished dimensions. The straight-cylindrical shank allows direct chuck mounting in CNC machining centers, drill presses, or manual mills. It is suited for production and maintenance machining where consistent hole diameter and surface finish are required. The 11.00mm diameter falls within the 10.00mm to 20.00mm reamer diameter range, making it a common size for medium-bore finishing work in ferrous and non-ferrous materials.

Key Features

• 11.00mm (0.4331 inch) reamer diameter with tight tolerance of +0.008 to +0.015mm
• Solid carbide construction for rigidity and extended tool life
• 6 straight flutes with right-hand cutting direction
• Straight-cylindrical shank for direct chuck mounting
• Bright, uncoated finish suitable for a broad range of materials
• Part of M.A. FORD. Series 272

Compatibility

Designed as an OEM-style chucking reamer for use in standard chuck-mount toolholders accepting a straight-cylindrical shank in CNC machining centers, drill presses, and milling machines requiring 11.00mm finished bore capability.

Installation Notes

Installation should be performed by a qualified machinist. Secure the straight-cylindrical shank firmly in a precision collet or drill chuck before use, and verify runout with a dial indicator before cutting. Power down the machine spindle completely before tool changes. Do not exceed the recommended feed and speed parameters for the workpiece material and carbide tooling grade in use.
