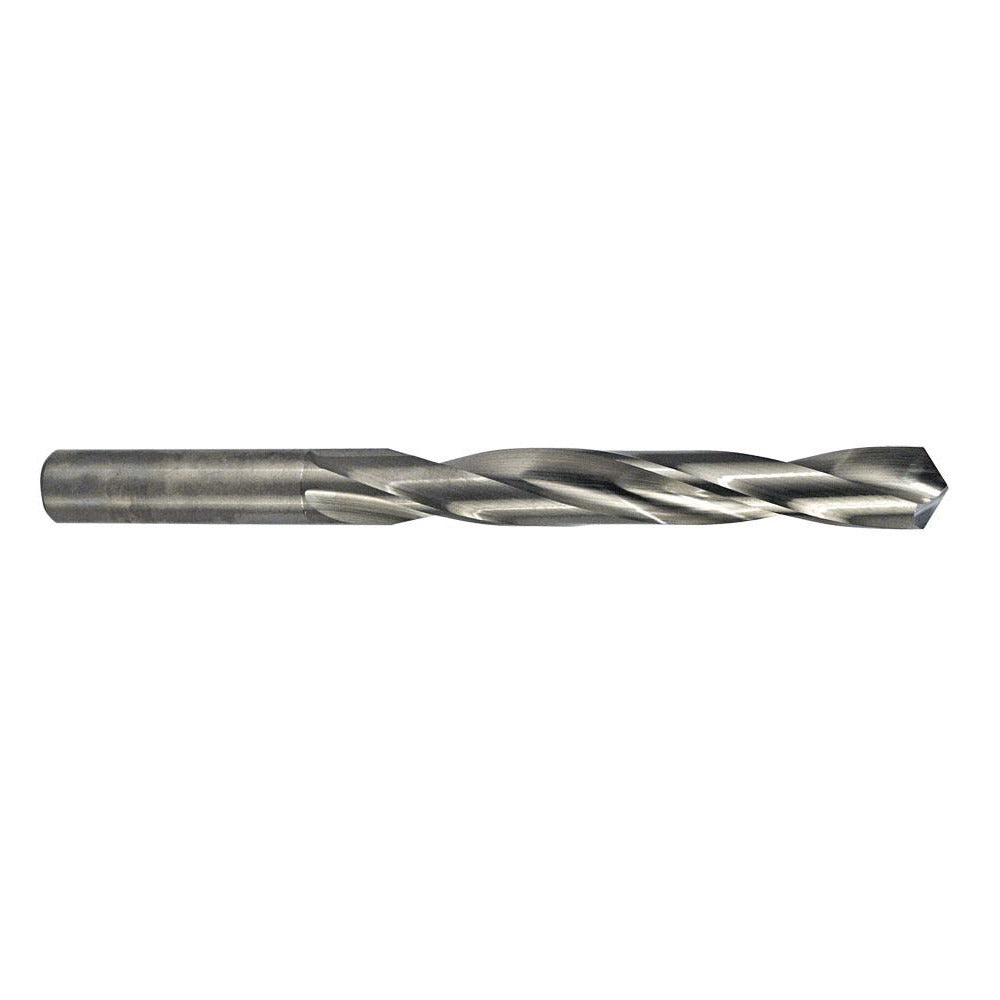

M.a. Ford 22414960 Solid Carbide Jobber Drill 0.1496 in

Product Description

The M.A. FORD 22414960 is a solid carbide jobber-length drill bit designed for general-purpose drilling in steel, aluminum, and non-ferrous materials. It carries a 0.1496 inch (3.80 mm) cutting diameter with a 118-degree facet point and a web-thinned tip geometry that reduces thrust and improves centering at entry. The overall length is 2.9528 inches (75.00 mm), and the flute length measures 1.6929 inches (43.00 mm). Manufactured to DIN 338 standards and produced under ISO 9001:2015 certification, this bit suits machine shops, maintenance facilities, and fabrication environments where dimensional accuracy and consistent tool life are required.

This drill bit is suited for drilling operations in a wide range of production and maintenance settings. It handles steel, aluminum, and other non-ferrous workpiece materials and is appropriate for use in drill presses, CNC machining centers, and hand-held power tools with compatible chucks. The straight cylindrical shank fits standard drill chucks without modification. It is a single-flute-ratio 5xD design, making it practical for through-hole and moderate-depth drilling tasks where a jobber-length reach is sufficient.

Key Features

• Solid carbide construction for extended wear resistance in metalworking applications
• 118-degree facet point with web-thinned tip reduces entry thrust and improves hole location accuracy
• Bright/uncoated finish suitable for use with cutting fluids or dry in compatible materials
• Regular right-hand spiral flute for efficient chip evacuation
• Straight cylindrical shank fits standard drill chucks without adapters
• Manufactured to DIN 338 specification under ISO 9001:2015 certified processes

Compatibility

Designed as a general-purpose jobber drill for machining steel, aluminum, and non-ferrous metals per primary workpiece material codes K, M, N, and P as defined in the product specifications.

Installation Notes

Install and operate this drill bit in accordance with machine tool manufacturer guidelines and applicable shop safety standards. Secure the straight shank fully in the chuck and verify runout before beginning a cut. Power down and de-energize all equipment before changing tooling. Do not exceed the recommended feed and speed parameters for the workpiece material, and use appropriate cutting fluid where required by the application.
