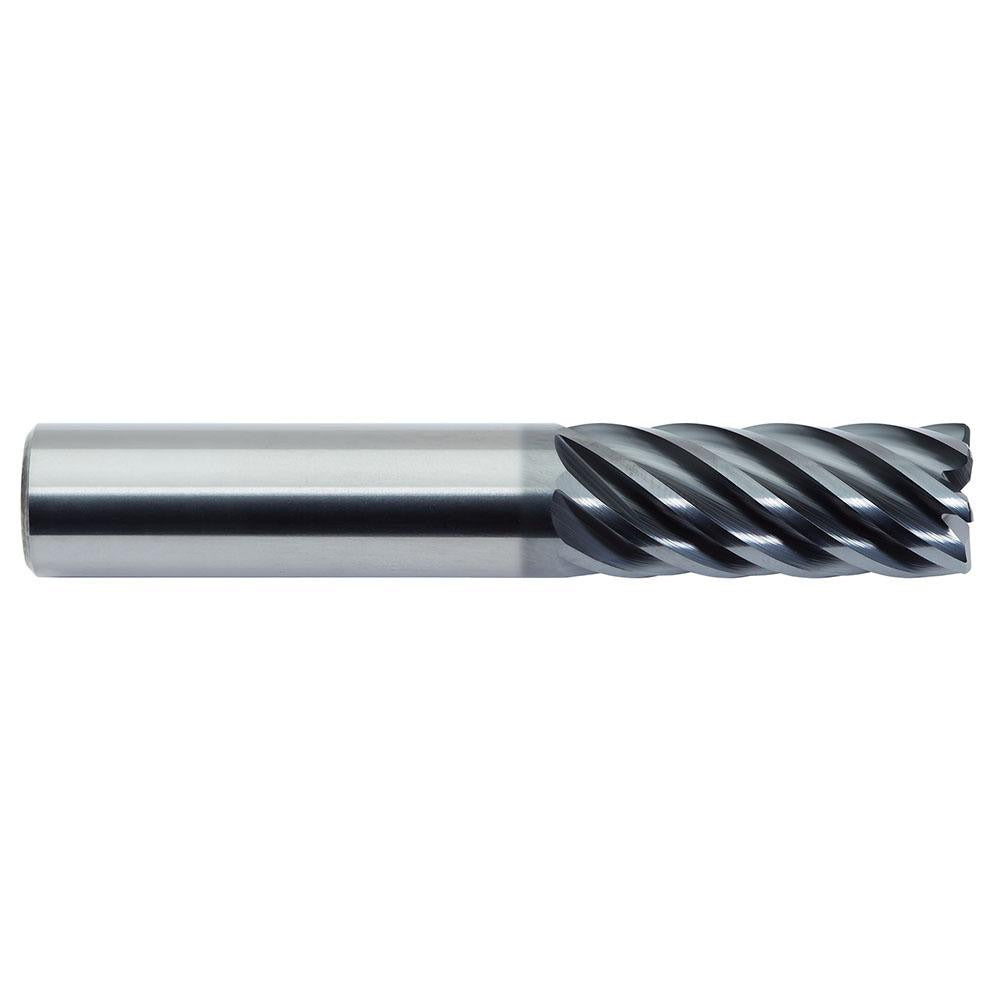

M.a. Ford. 18050017B Corner Radius End Mill 1/2 in 7 Flute

Product Description

The M.A. FORD. 18050017B is a 7-flute solid carbide corner radius end mill designed for high-performance finishing operations in demanding materials. Built to Series 180 specifications, it features a 0.5 inch mill diameter, a 0.09 inch corner radius, and a 1.25 inch length of cut. The ALtima Blaze PVD coating delivers enhanced heat resistance and tool life when cutting steel, stainless steel, superalloys, and titanium. With a super close pitch flute configuration and right-hand spiral flutes, this end mill is engineered for chip control and surface finish quality in CNC milling applications. Machinists and tooling specialists working in aerospace, medical, and precision machining environments are the primary users of this tool.

This end mill is suited for finishing passes in steels, stainless steels, superalloys, and titanium alloys. Its 38-degree helix angle and super close pitch geometry make it effective in vibration-sensitive setups and thin-wall workpieces. The straight cylindrical shank is compatible with standard toolholders and collet chucks. It is a single-end, non-center-cutting tool, making it appropriate for side milling, profiling, and contouring operations rather than plunge entry. The 3 inch overall length provides adequate reach for common milling depths without sacrificing rigidity.

Key Features

• 7-flute super close pitch design for improved surface finish on ferrous and exotic alloys
• ALtima Blaze PVD coating for extended tool life in high-temperature cutting conditions
• 0.09 inch corner radius reduces stress concentration and improves edge durability
• 38-degree helix angle balances cutting forces in finishing operations
• Solid carbide construction provides rigidity and dimensional stability
• Right-hand cut, right-hand spiral with straight cylindrical shank for broad toolholder compatibility

Compatibility

Designed for use with standard toolholders accepting a 1/2 inch straight cylindrical shank. Intended for CNC milling of steel, stainless steel, superalloys, and titanium. Not center-cutting; not suitable for direct plunge entry.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Secure the shank in a clean, properly sized collet or toolholder and verify runout before operation. Ensure the machine spindle is fully stopped and locked out before changing tooling. Do not use this end mill for plunge cuts, as it is a non-center-cutting design.
