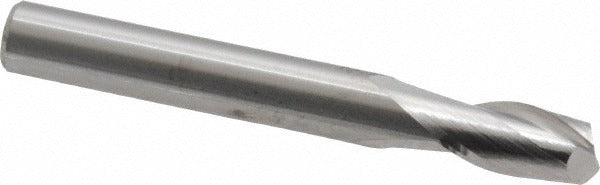

M.a. Ford 16425000 Square End Mill 1/4 in 2 Flute Carbide

Product Description

The M.A. FORD 16425000 is a solid carbide square end mill designed for precision milling in a wide range of materials. Measuring 0.25 inches in diameter with a 0.50-inch length of cut and a 2.0-inch overall length, this stub-length tool delivers rigidity in tight-clearance setups. The two-flute, spiral design with a 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. Micrograin carbide construction provides wear resistance and edge retention across demanding applications. The uncoated finish makes it suitable for use with cutting fluids in materials where coating adhesion or heat buildup is a concern.

This end mill is suited for milling operations on a broad range of workpiece materials including hardened steels, cast irons, stainless steels, non-ferrous metals, structural steels, and superalloys, corresponding to material groups H, K, M, N, P, and S. The straight cylindrical shank fits standard collets and end mill holders. Its centercutting capability allows plunge entry, making it practical for slot milling, pocket entry, and profiling operations on CNC machining centers and manual mills.

Key Features

• Solid micrograin carbide construction for edge retention and wear resistance
• Two-flute spiral design with 30-degree helix angle for efficient chip evacuation
• Centercutting geometry allows direct plunge entry into workpiece
• Right-hand cut and right-hand flute configuration for standard spindle direction
• Stub length profile increases tool rigidity and reduces deflection
• Uncoated finish compatible with flood coolant and cutting oil applications

Compatibility

Designed for use in standard collet chucks and end mill holders accepting a 0.25-inch straight cylindrical shank. Rated for material groups H, K, M, N, P, and S per the M.A. FORD Series 164 designation.

Installation Notes

Installation is performed by machinists or CNC operators. Power down and lock out the spindle before changing tooling. Ensure the shank is fully seated and properly torqued in the collet or holder to the tool holder manufacturer specification before operating. Inspect cutting edges for chipping before each use, as carbide tooling can fracture if used with excessive runout or improper speeds and feeds.
