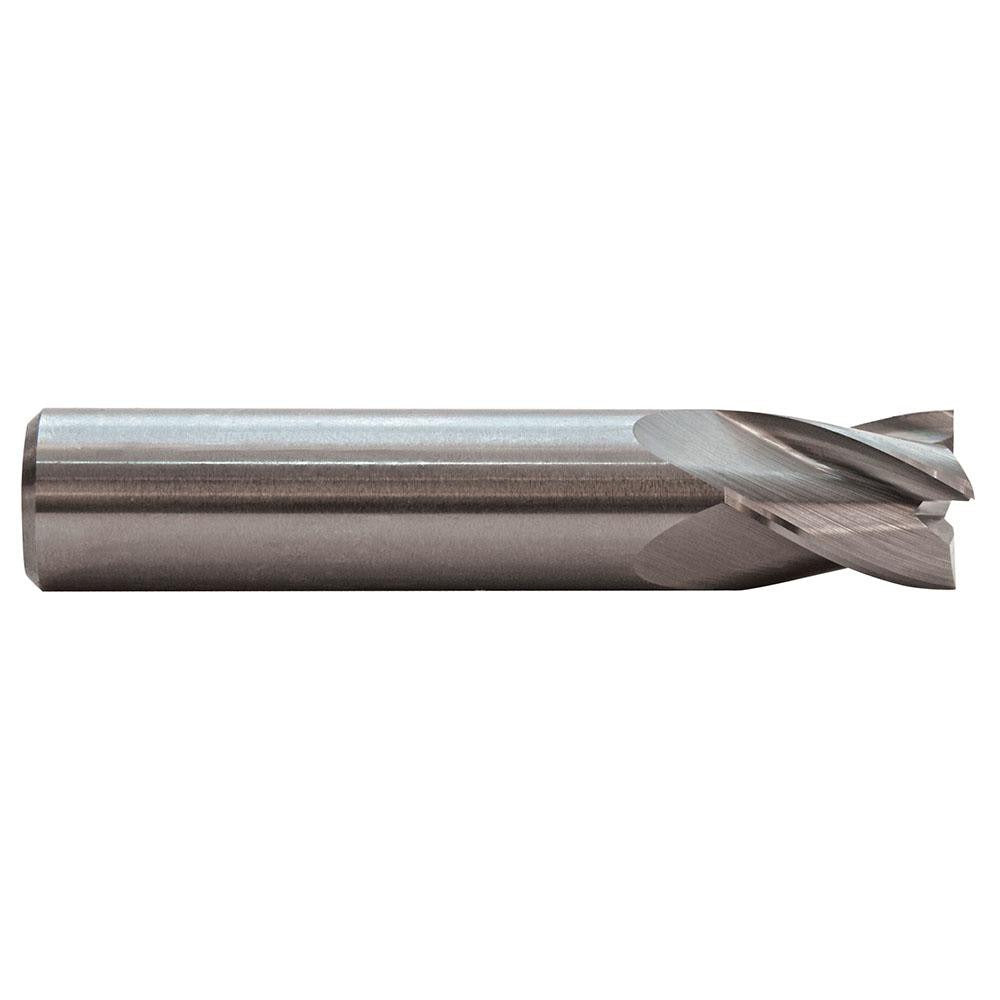

M.a. Ford 16302000 Square End Mill 0.0200 in 4 Flute Carbide

Product Description

The M.A. FORD 16302000 is a solid carbide square end mill engineered for precision milling in demanding industrial applications. Built from micrograin carbide with a bright, uncoated finish, this tool delivers sharp cutting edges and dimensional stability in small-diameter work. It measures 0.0200 inches in diameter with a 0.04-inch length of cut, a 0.125-inch straight-cylindrical shank, and a 1.5-inch overall length. The four-flute, 30-degree spiral helix geometry supports efficient chip evacuation and surface finish quality. Centercutting capability allows plunge entry without a pre-drilled pilot hole. This end mill is installed and used by machinists and tool-and-die professionals running CNC or manual milling equipment.

This stub-length end mill is suited for milling operations requiring tight tolerances in small part features, slots, pockets, and contours. Its compact cutting length and rigid carbide construction make it appropriate for high-speed finishing passes and light slotting in a range of workpiece materials. Per the manufacturer material code designations, this tool is rated for workpiece material categories H, K, M, N, P, and S, covering a broad spectrum of metals and non-metals including cast iron, non-ferrous alloys, and high-temperature alloys. Its Series 163 designation places it within M.A. FORD's standard square end mill lineup.

Key Features

• 0.0200-inch cutting diameter with a tight mill diameter tolerance of plus 0.0005 and minus 0.0005 inches
• Solid micrograin carbide construction for rigidity and wear resistance at small diameters
• Four flutes with 30-degree right-hand spiral helix for efficient chip flow
• Centercutting design allows direct plunge entry
• Stub length classification for maximum rigidity in shallow-feature milling
• Bright, uncoated finish suitable for use across multiple workpiece material categories

Compatibility

Designed as a standard Series 163 square end mill replacement or new installation for CNC and manual milling machines accepting a 0.125-inch straight-cylindrical shank. Rated for workpiece material categories H, K, M, N, P, and S per manufacturer specification.

Installation Notes

This end mill is installed by machinists using a collet or end mill holder rated for a 0.125-inch shank diameter. Ensure the machine spindle is fully de-energized and locked out before changing tooling. Confirm runout at the collet before cutting, as excessive runout at this diameter will accelerate tool wear. Follow the machine manufacturer and cutting tool manufacturer guidelines for feed rate, spindle speed, and depth of cut appropriate to the workpiece material.
