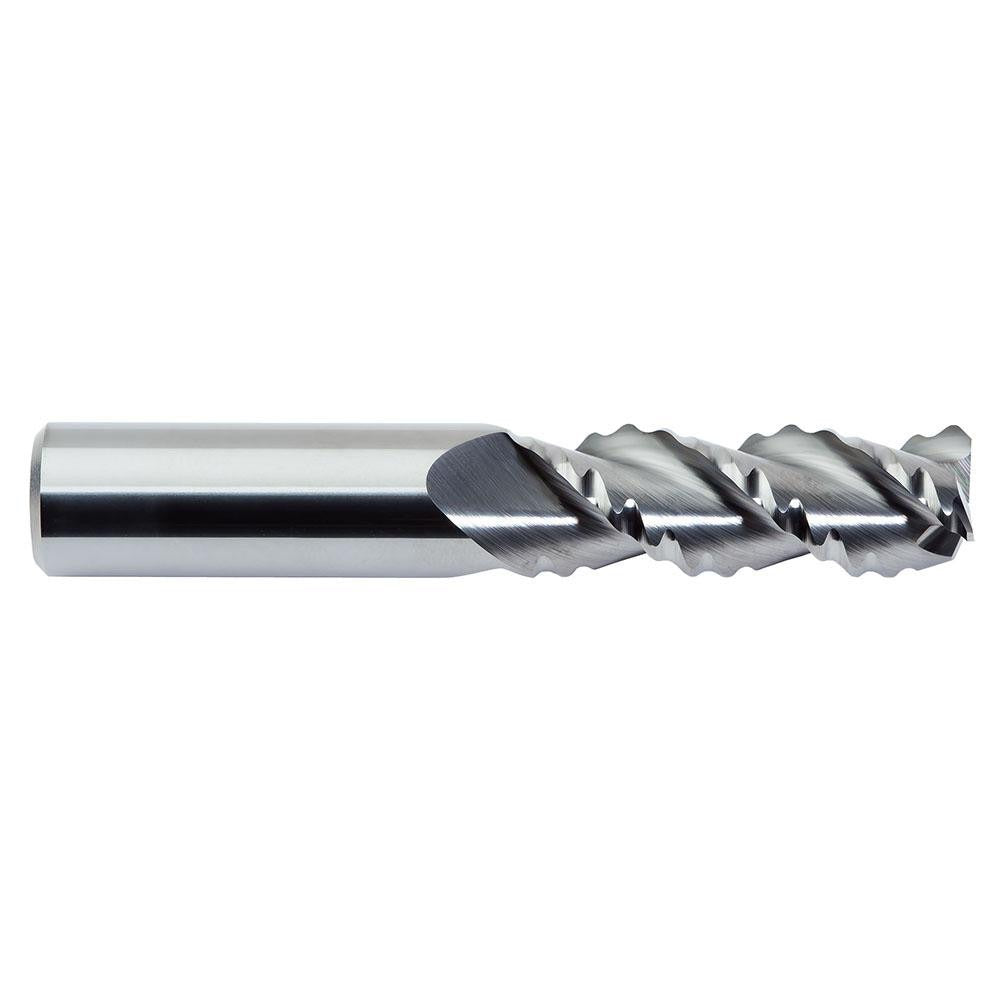

M.a. Ford. 13437500 Square End Mill 3/8 Inch 3 Flute Carbide

Product Description

The M.A. FORD. 13437500 is a solid carbide square end mill designed for precision milling operations in metal, composites, and engineered materials. It features a 3/8 inch cutting diameter, a 7/8 inch length of cut, and a 3/8 inch shank diameter, with an overall length of 2-1/2 inches. The 3-flute, single-end geometry with a 45-degree high helix angle promotes efficient chip evacuation and smooth cutting action. The uncoated carbide construction delivers rigidity and edge retention in general-purpose milling applications. This tool is installed by machinists and tool-and-die professionals working in CNC machining centers and manual mills.

This end mill is suited for slotting, profiling, and peripheral milling in a range of materials including aluminum, steel, and plastics. The centercutting design allows plunge entry, giving machinists flexibility in toolpath programming. The right-hand cut and right-hand helical flute configuration is standard for conventional CNC spindle operation. It fits common 3/8 inch collet and end mill holder systems used in vertical and horizontal machining centers across job shops, production facilities, and maintenance machining environments.

Key Features

• 3/8 inch cutting diameter with 7/8 inch length of cut for precise material removal
• Solid carbide construction for rigidity and edge retention
• 3-flute geometry balances chip evacuation with cutting stability
• 45-degree high helix angle reduces cutting forces and improves surface finish
• Centercutting design allows direct plunge entry into workpiece
• Right-hand cut and right-hand flute direction — compatible with standard CNC spindle rotation
• Uncoated finish suitable for general-purpose milling applications

Compatibility

Designed for use with standard 3/8 inch collet chucks, shrink-fit holders, and end mill holders on CNC machining centers and manual knee mills. Part of the M.A. FORD. Series 134 end mill line.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Secure the shank fully into the holder to the recommended gauge-line depth before tightening. Inspect the cutting edges for chips or damage before each use. Always bring the spindle to a full stop before changing or adjusting tooling.
