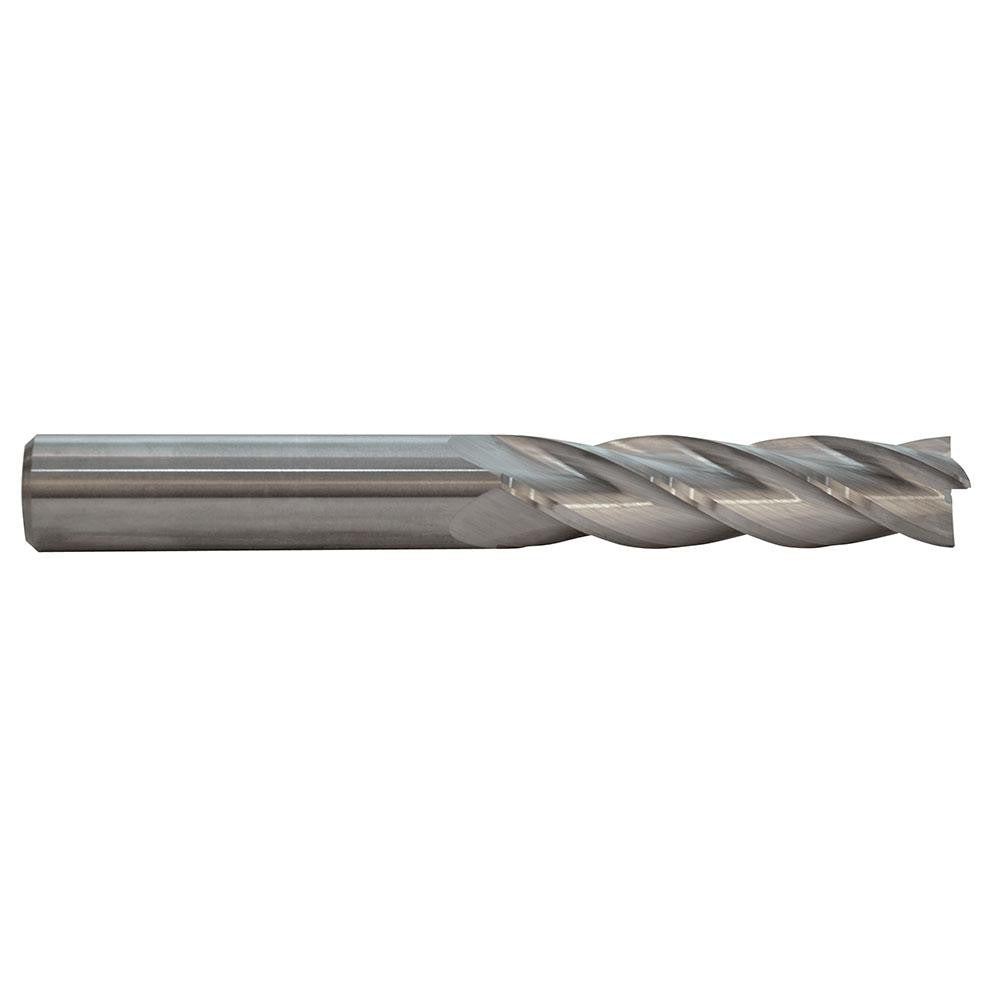

M.a. Ford. 12235430A Square End Mill 0.3543 in 4 Flute

Product Description

The M.A. FORD. 12235430A is a solid carbide square end mill designed for precision milling in demanding industrial and metalworking applications. With a 0.3543-inch (9 mm) cutting diameter and a 1.378-inch (35 mm) length of cut, this is a long-series tool built for deeper axial engagement where standard-length end mills fall short. The 4-flute, 30-degree right-hand spiral geometry promotes efficient chip evacuation and smooth cutting action. An ALtima coating provides enhanced wear resistance and thermal protection. Micrograin carbide construction delivers the rigidity and edge retention required for consistent performance in ferrous and non-ferrous materials. Installed by machinists and tool-and-die professionals in CNC and manual milling setups.

This end mill is suited for slotting, profiling, and peripheral milling across a broad range of workpiece materials. The Series 122 designation identifies it as a long-series tool within the M.A. FORD. product line. Primary workpiece material codes listed for this tool include H, K, M, N, P, and S, covering cast iron, non-ferrous metals, stainless steel, steel, and superalloys. The straight-cylindrical shank at 0.3543 inches accommodates standard collet and end mill holder setups. Centercutting capability allows plunge entry where required.

Key Features

• Solid micrograin carbide construction for rigidity and long edge life
• ALtima coating for wear and heat resistance in demanding cuts
• 4-flute, 30-degree right-hand spiral for balanced chip evacuation and surface finish
• Long-series length of cut (1.378 inches) for deeper reach applications
• Centercutting design permits plunge milling entry
• Straight-cylindrical shank fits standard collets and end mill holders

Compatibility

Rated for use with workpiece material codes H, K, M, N, P, and S as specified by the manufacturer, covering a broad range of ferrous and non-ferrous metals. Fits standard 9 mm (0.3543-inch) collets and end mill holders used in CNC machining centers and manual knee mills.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and the machine locked out per applicable shop safety procedures. Ensure the collet or holder is clean and free of debris before seating the shank to the specified engagement depth. Do not exceed the manufacturer-rated depth of cut or feed rate for the workpiece material and coating type. Inspect the cutting edges for chipping or wear before each use.
