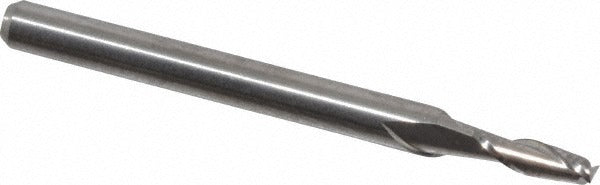

M.a. Ford 12109000 Square End Mill 3/32 in 2 Flute Carbide

Product Description

The M.A. FORD 12109000 is a solid carbide square end mill designed for precision milling in a wide range of metalworking and machining applications. With a 3/32 inch (0.0900 inch) cutting diameter and a 2-flute spiral geometry, this tool removes material efficiently at small scales where rigidity and edge sharpness are critical. The 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces. It is centercutting, allowing plunge entry as well as peripheral cutting. This end mill is uncoated and manufactured from solid carbide, making it suitable for controlled environments where coating is not required or where re-sharpening is intended.

This end mill is built for use in CNC machining centers, manual mills, and high-speed spindle applications where small-diameter precision tooling is needed. It is suited for milling ferrous and non-ferrous metals, stainless steels, cast irons, high-temperature alloys, and titanium, as indicated by its primary workpiece material codes H, K, M, N, P, and S. The straight cylindrical shank fits standard 1/8 inch collets. Typical users include machinists, tool and die makers, and precision manufacturers working in aerospace, medical device, and general metalworking environments.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cutting conditions
• 2-flute spiral geometry with 30-degree helix angle for efficient chip evacuation
• Centercutting design allows direct plunge entry into workpiece material
• Right-hand cut and right-hand flute configuration for standard spindle operation
• Uncoated finish suitable for applications where base carbide performance is preferred
• Mill diameter tolerance of plus 0.0005 inch / minus 0.0005 inch for precision fitment

Compatibility

The 12109000 belongs to M.A. FORD Series 121 and accepts a 1/8 inch straight cylindrical shank, compatible with standard ER and precision collet systems sized for 1/8 inch tooling. Suitable for workpiece materials coded H, K, M, N, P, and S, covering a broad range of metals including steels, stainless, cast iron, non-ferrous alloys, high-temperature alloys, and titanium.

Installation Notes

This tool is installed by a machinist or CNC setup technician using a collet chuck or end mill holder rated for 1/8 inch shank diameter. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Verify collet condition and runout before use, as small-diameter carbide end mills are sensitive to excessive runout and can fracture under eccentric loading. Do not exceed manufacturer-recommended feeds and speeds for the workpiece material and depth of cut.
