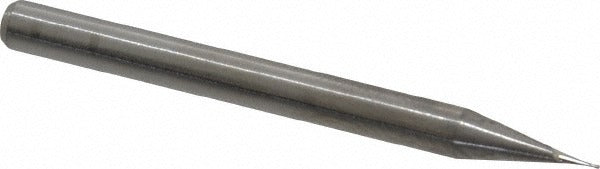

M.a. Ford. 12101000 Square End Mill 0.01 in 2 Flute Carbide

Product Description

The M.A. FORD. 12101000 is a solid carbide square end mill designed for precision micro-milling applications. With a 0.01 inch cutting diameter and a 1/32 inch (0.03 inch) length of cut, this tool is engineered for fine-detail work in tight tolerances. The 1/8 inch straight-cylindrical shank and 1-1/2 inch overall length make it compatible with standard collet and toolholder setups on CNC machining centers and manual mills. Two right-hand spiral flutes with a 30-degree helix angle provide efficient chip evacuation at this scale. The tool is centercutting, allowing direct plunge entry. Uncoated solid carbide construction delivers consistent performance across a range of workpiece materials.

This end mill is suited for precision machining of metals and non-metals at the micro scale. The Series 121 designation covers regular-length, straight-shank square end mills intended for finishing and light slotting passes. Primary workpiece material codes H, K, M, N, P, and S indicate suitability for hardened steels, cast iron, stainless steel, non-ferrous metals, carbon and alloy steels, and heat-resistant superalloys. Typical use cases include mold and die work, prototype machining, and precision component manufacturing where extremely small features are required.

Key Features

• 0.01 inch cutting diameter for micro-scale feature machining
• Solid carbide construction for rigidity and wear resistance at small diameters
• 2 right-hand spiral flutes with 30-degree helix angle for efficient chip flow
• Centercutting geometry allows direct plunge and ramp entry
• Right-hand cut and right-hand flute direction for standard spindle operation
• Uncoated finish suitable for use across multiple workpiece material categories

Compatibility

Designed for use in CNC machining centers and manual mills equipped with standard 1/8 inch collets or toolholders. Compatible with workpiece materials designated H, K, M, N, P, and S per supplier material code classification, covering hardened steels, cast iron, stainless steels, non-ferrous metals, carbon and alloy steels, and superalloys.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before loading or removing the tool. Seat the 1/8 inch shank fully and evenly in a properly sized collet or toolholder to prevent runout at this diameter. At 0.01 inch diameter, tool deflection and runout tolerances are critical — verify holder concentricity before running production cuts.
