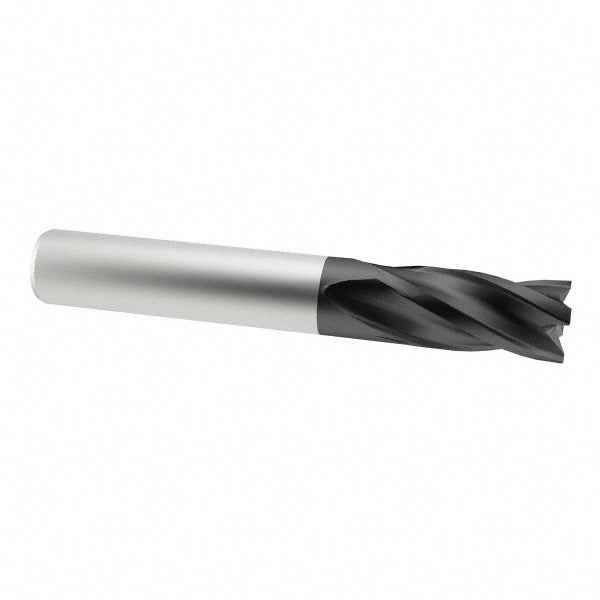

M.a. Ford. 11650000A Square End Mill 1/2 in 3 Flute Carbide

Product Description

The M.A. FORD. 11650000A is a solid carbide square end mill designed for precision milling in demanding machining environments. Built from micrograin carbide stock, it carries a TiAlN finish that extends tool life under high-heat cutting conditions. The 1/2-inch diameter cutter features a 1-inch length of cut, a 3-inch overall length, and a straight cylindrical 1/2-inch shank. Three spiral flutes with a 30-degree helix angle promote chip evacuation and smooth cutting action. This is a centercutting tool, allowing it to plunge directly into workpiece material. Right-hand cut and right-hand flute orientation follow standard mill conventions.

The 11650000A is suited for milling operations on a range of workpiece materials including cast iron, non-ferrous metals, steel, stainless steel, high-temp alloys, and hardened materials, corresponding to ISO material groups H, K, M, N, P, and S. Its regular-length geometry fits standard milling machine spindles and tool holders without extended reach requirements. Machinists in job shops, production environments, and tool rooms will find this a straightforward replacement or stocking unit for general-purpose and finishing passes.

Key Features

• Solid micrograin carbide construction for rigidity and edge retention
• TiAlN coating improves heat resistance and extends tool life in ferrous and exotic alloy cuts
• Three spiral flutes at 30-degree helix angle for efficient chip removal
• Centercutting geometry allows direct plunge milling
• Right-hand cut, right-hand flute - compatible with standard vertical and horizontal milling setups
• Diameter tolerance of +0.000 / -0.003 inches ensures consistent fit in close-tolerance work

Compatibility

Designed for use in standard straight-shank milling chucks, collet holders, and end mill adapters accepting a 1/2-inch straight cylindrical shank. Rated for ISO material groups H, K, M, N, P, and S as specified by the manufacturer.

Installation Notes

Installation is performed by a machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before loading or removing the tool. Secure the shank to the full recommended engagement depth in the tool holder and verify runout before cutting. Follow the machine tool manufacturer guidelines and applicable shop safety standards for speeds, feeds, and coolant application.
