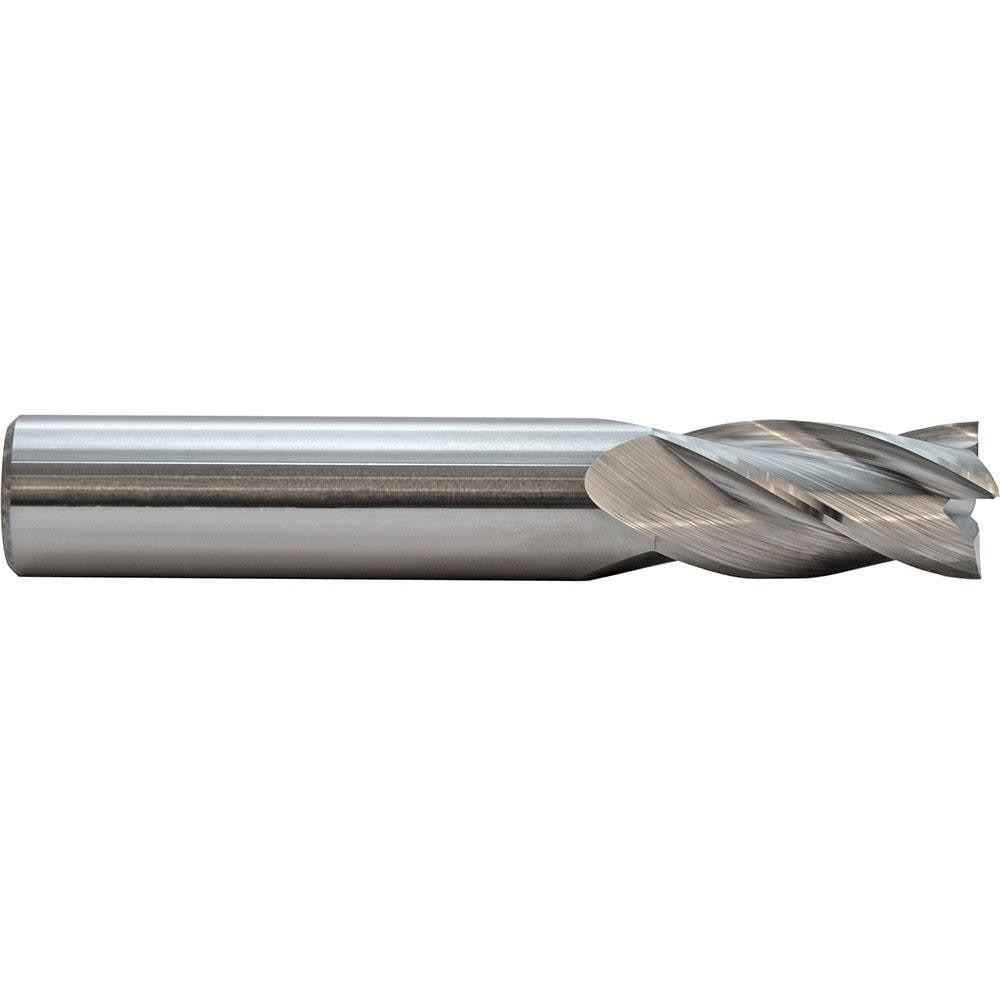

M.a. Ford. 11150005 Corner Radius End Mill 1/2 in 4 Flute

Product Description

The M.A. FORD. 11150005 is a solid carbide corner radius end mill built for material removal in demanding machining environments. It features a 1/2 inch cutting diameter, a 1 inch length of cut, and a 0.06 inch corner radius that reduces stress concentration at the cutting edge and extends tool life in both roughing and finishing passes. The 4-flute, right-hand spiral design runs at a 30-degree helix angle, promoting efficient chip evacuation and stable cutting action. This is a single-end, centercutting tool suited for machinists running CNC mills and machining centers on production and job-shop floors.

This end mill is designed for use across a broad range of workpiece materials including steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. Its micrograin carbide substrate and uncoated bright finish make it a versatile choice for operations where post-coat regrinding or specific coating compatibility is required. The straight cylindrical shank mounts directly into standard end mill holders and collet toolholders. Typical applications include profile milling, slotting, and contour passes where a corner radius is required to reduce part notch sensitivity or meet drawing callouts.

Key Features

• 0.06 inch corner radius reduces edge chipping and part stress concentration
• Solid micrograin carbide construction for rigidity and wear resistance
• 4 flutes with 30-degree helix angle for balanced chip load and smooth finish
• Centercutting geometry allows plunge entry without a pre-drilled hole
• Right-hand cut and right-hand flute direction for standard CNC spindle compatibility
• Rated for roughing and finishing in steel, stainless, cast iron, non-ferrous, superalloys, and hard materials

Compatibility

Designed for use with standard end mill toolholders and collet systems accepting a 1/2 inch straight cylindrical shank. Part of M.A. FORD. Series 111.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the toolholder is clean and free of chips or debris before seating the end mill. Confirm runout with a dial indicator after tool clamping to avoid premature edge wear. Follow the toolholder manufacturer torque guidelines when tightening collet nuts or set screws.
