Lynn Electronics FPPADSU206 Lgx Panel 6 Duplex Sc Upc Sm

Product Description

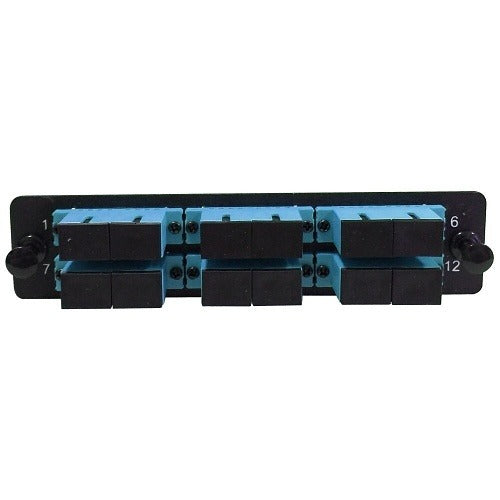

The LYNN ELECTRONICS FPPADSU206 is a singlemode LGX-style fiber optic panel configured with six duplex SC/UPC ports. It is designed for structured cabling installations where high-density fiber termination is required in a compact LGX form factor. The blue port color indicates singlemode SC/UPC connectivity, making it straightforward to identify fiber type at a glance. Telecommunications technicians and low-voltage cabling contractors install this panel in fiber distribution frames and patch enclosures to organize and protect singlemode fiber runs.

This panel is suited for singlemode fiber optic cabling systems in commercial, data center, and campus network environments. The LGX form factor is a widely adopted standard for fiber distribution hardware, allowing the panel to seat into compatible LGX chassis and enclosures. The six duplex SC/UPC ports provide twelve individual singlemode fiber termination points. It is typically used in backbone and horizontal cabling segments where SC/UPC connector polish is specified for low insertion loss performance.

Key Features

• Six duplex SC/UPC ports providing twelve singlemode fiber termination points
• Blue port color denotes singlemode SC/UPC connector type for quick visual identification
• LGX form factor for compatibility with standard LGX fiber distribution chassis and enclosures
• Supports singlemode fiber for long-distance, low-attenuation cabling applications
• Single-unit packaging for straightforward integration into existing fiber infrastructure

Compatibility

Designed as an OEM-style replacement or addition for LGX-compatible fiber distribution frames and enclosures that accept standard LGX adapter panels with SC duplex port configurations.

Installation Notes

Installation should be performed by a qualified low-voltage or fiber optic cabling technician familiar with structured cabling standards such as ANSI/TIA-568. Ensure the host LGX chassis or enclosure is de-energized and all active fiber links are dark before inserting or removing the panel. Clean all SC/UPC ferrules and adapter sleeves with appropriate fiber cleaning tools prior to mating connectors to prevent contamination-related insertion loss. Follow all applicable local and national cabling codes when routing and securing fiber in the enclosure.
