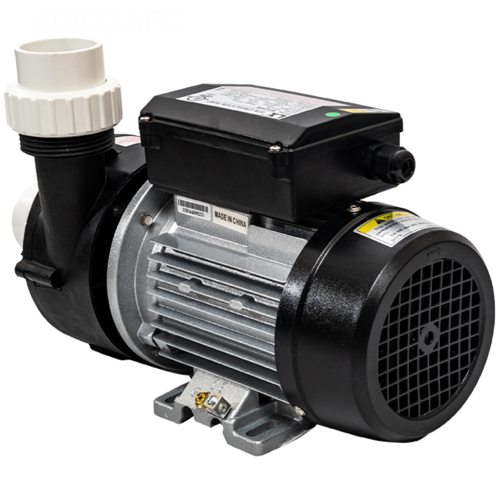

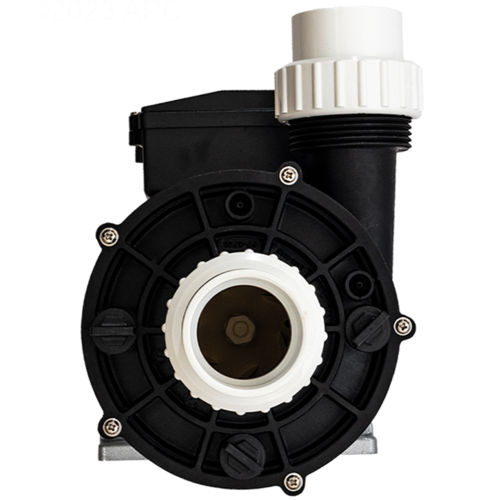

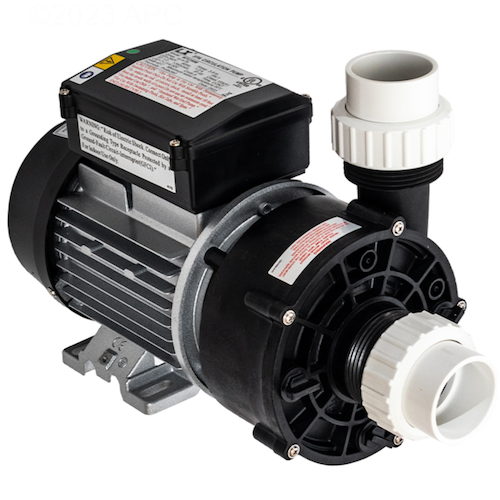

LX WTC50M Long Snout Spa Circulation Pump 0.35 HP 230V 60Hz Single Speed Replacement for Sundance/Jacuzzi 6500-907

Product Description

The LX WTC50M is a long snout spa circulation pump designed to provide continuous water circulation for compatible Sundance and Jacuzzi spas. Featuring a 0.35 HP single-speed motor, this pump delivers reliable flow through the spa's heater, filtration, and sanitation systems to maintain clean water and consistent operating temperatures. The long-thread (long snout) wet end is specifically designed as a direct replacement for OEM part number 6500-907 used on many Sundance and Jacuzzi spa models manufactured after 2011. :contentReference[oaicite:0]{index=0}

Constructed with a corrosion-resistant thermoplastic wet end, pure copper motor windings, and a durable mechanical seal, the WTC50M is built for quiet, energy-efficient, continuous-duty operation. The wet end can be rotated in 90-degree increments for easier installation on compatible spa plumbing. :contentReference[oaicite:1]{index=1}

• Long snout circulation pump for Sundance and Jacuzzi spas

• Direct replacement for OEM part number 6500-907

• 0.35 HP single-speed motor

• 230V, 60 Hz, single-phase operation

• Side discharge with center suction configuration

• Long-thread 1-1/2 inch MBT intake and discharge connections

• Wet end rotates in 90-degree increments for installation flexibility

• Pure copper motor windings for improved cooling and durability

• Designed for continuous-duty spa circulation

Product Highlights

The LX WTC50M provides dependable, energy-efficient water circulation for compatible hot tubs and spas. Its long snout configuration, quiet operation, and durable construction make it an ideal OEM replacement for Sundance and Jacuzzi circulation pump applications. :contentReference[oaicite:2]{index=2}

Product Information

Standard Information

• Brand: LX

• Manufacturer Part Number: WTC50M

• OEM Part Number: 6500-907

• Product Type: Spa Circulation Pump

Technical Specifications

• Pump Configuration: Long Snout

• Application: Spa and Hot Tub Circulation

• Horsepower: 0.35 HP (250 Watts)

• Pump Speed: Single Speed

• Voltage: 230 VAC

• Frequency: 60 Hz

• Phase: Single Phase

• Current Draw: 1.0 Amp

• Frame Size: 48 Frame

• Motor Speed: 1,700 RPM

• Maximum Flow Rate: 63 GPM

• Suction Connection: 1-1/2 Inch MBT (Long Thread)

• Discharge Connection: 1-1/2 Inch MBT (Long Thread, Side Discharge)

• Suction Configuration: Center Suction

• Wet End Rotation: Adjustable in 90-Degree Increments

• Motor Windings: Pure Copper

• Mechanical Seal: Silicon Carbide/Viton

• Pump Housing Material: Reinforced Thermoplastic

• Maximum Water Temperature: 122°F (50°C)

• Certifications: UL, cUL

• Warranty: 1-Year Manufacturer Limited Warranty

• Compatible OEM Part Numbers: 6500-907, 6500-905, 6500-913
