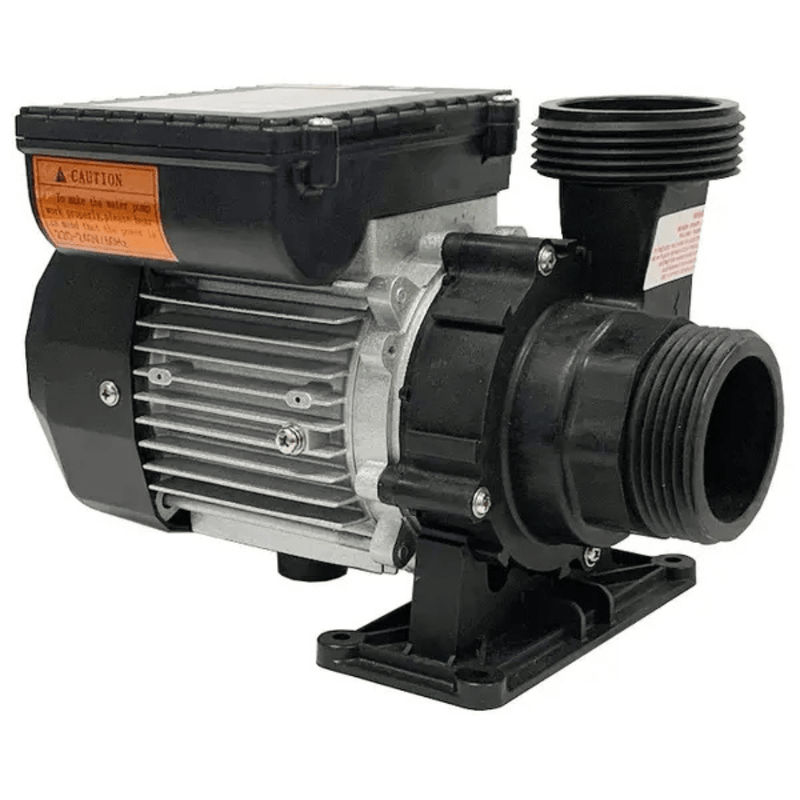

Lx Pumps We14-240v Circulation Pump 1/4 Hp 1 1/2 Inch Plumbing Replacement We14

Product Description

The LX PUMPS WE14-240V is a 230 volt 1-speed circulation pump that connects to 1 1/2 inch plumbing. This 1/4 HP single speed LX WE14 pump is designed for spa, hot tub, and pool filtration systems, delivering steady and efficient water flow for proper water turnover and filtration.

• Connects to 1 1/2 inch plumbing

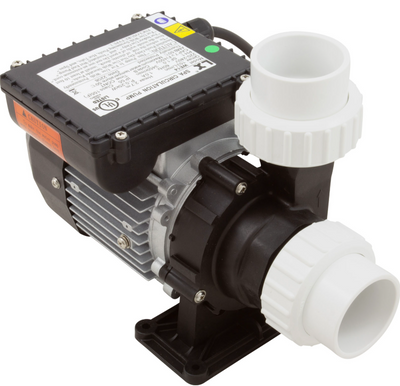

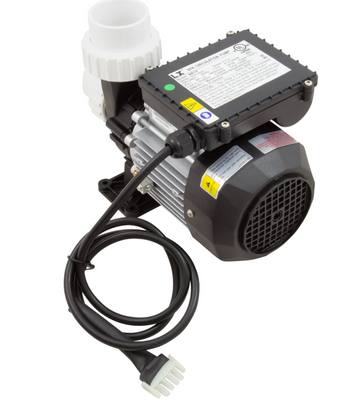

• Includes AMP cord and unions
• Adjustable wet end to line up with existing plumbing

Product Highlights

Ideal for circulating water in spa or hot tub systems, ensuring water is constantly moving through the filtration system.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: WE14-240V

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 230 V
• Speed: 1 Speed
• Frame Size: 48Y
• Amps: 1.0 A
• Intake Size: 1-1/2" MBT (2 7/16" across pump threads)
• Intake/Suction type: Center
• Discharge Size: 1.5" MBT
• Discharge Type: Side
• Number of Speeds: 1
• Model: WE14
• Part Numbers: HQP-10-0005, 10WE14240, LXWE14240
• Frequency (Hz): 60
• Discharge Location: Side
• Threads: 1.5-inch buttress threads
• Flow Rate: Up to 40 GPM (Gallons Per Minute)
• Max Head: 10.5 feet
• Max Pressure: 50 PSI
• Max Temperature: 140
