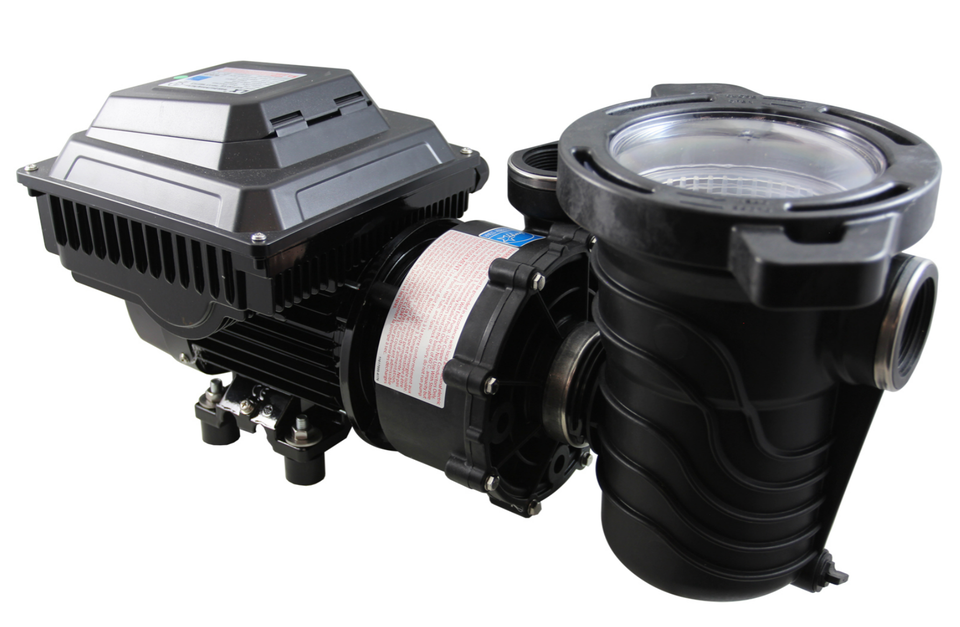

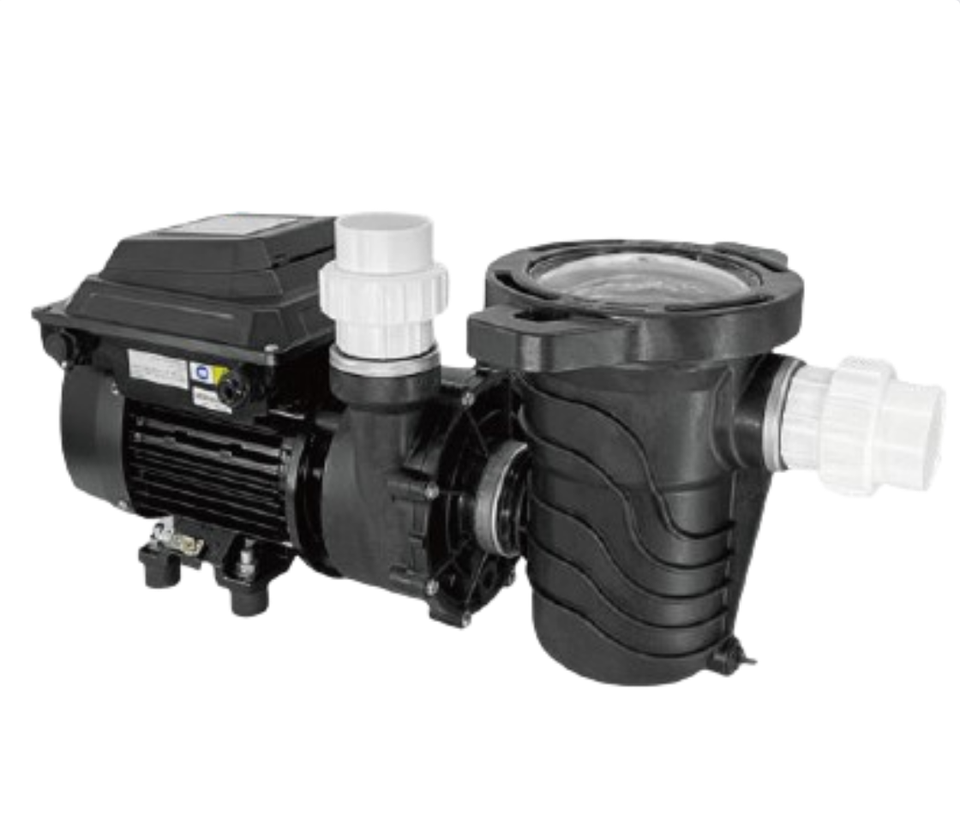

Lx Pumps Shp130-Vs Shp 1.3Thp Variable-Speed Above Ground Pool Pump

Product Description

The LX PUMPS SHP130-VS is a high-performance variable-speed pool pump built specifically for above ground swimming pools. Featuring an electronically-commutated motor (ECM), this pump lets you dial in exactly the speed your pool needs. With a Weighted Energy Factor (WEF) of 11.32 kgal/kWh verified by ENERGY STAR.

• Variable-speed motor
• ENERGY STAR 3.1 Certified
• 3 Programmable Speed Plans

Product Highlights

This pump delivers the perfect combination of power, efficiency, and smart automation. It is among the most efficient above ground pool pumps on the market.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: SHP130-VS
• Country of Origin: United States

Technical Specifications

• Product Type: Above Ground (Non-Self-Priming) Pool Filter Pump
• Motor Design: Variable-Speed, Electronically-Commutated Motor (ECM)
• Hydraulic Horsepower (HHP): 0.558 HHP
• Rated Horsepower (HP): 1.3
• Weighted Energy Factor (WEF): 11.32 kgal/kWh
• Connected Capable: No
• Freeze Protection: No
• ENERGY STAR Certified: Yes
• Markets: United States, Canada
• ENERGY STAR Unique ID: 2466393
• Model Number: SHP130-VS
• SKU: SHP130-VS
• UPC: 792855826804
• Manufacturer: GuangDong Lingxiao Pump Industry Co., Ltd (LX)
• Total Horsepower (THP): 1.3 THP
• Voltage: 115V / 60Hz
• Motor Amperage: 12.0A
• Max Speed: 3,450 RPM
• Speed Settings: 3 Programmable + Manual Override
• Motor Frame: 48 Frame Thru-Bolt
• Suction Pipe Size: 1-1/2"
• Suction Connection Type: Female Pipe Thread (FPT)
• Suction Style: Top
• Discharge Pipe Size: 1-1/2"
• Discharge Connection Type: Female Pipe Thread (FPT)
• Discharge Style: Side
• Fitting Standard: ANSI Standard (1.5")
• Noise Level: As low as 42 dB
• Timer Memory: 48-hour retention
• Automation Compatibility: Pentair LP4/PLS4 (via RS485)
• Certifications: ENERGY STAR 3.1, DOE, CEC
• Brand: Lingxiao (LX) Pump
• Speed: Variable Speed (Var-Spd)
• Pump Model: SHP
• Frequency (Hz): 60
• Power (THP): 1.3
• Current (A): 12
• Hmax (m): 17
• Qmax (L/min): 330
• Speed (r/min): 450~3450
• Pool Type: Swimming Pool
• Phase: Single
• Power: 1.3HP
• Power Supply: Plug Powered
• Material: Plastic
• Feature: ABS
• Application: Swimming Pool
• Type: pool water pump
• Model No.: SHP130-VS
• Horsepower: 1.3HP
• Pool pump type: Above ground
• Fitting size: 48.5mm or 50mm
