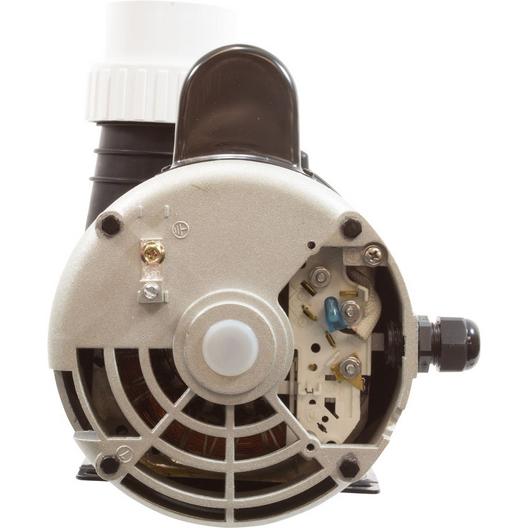

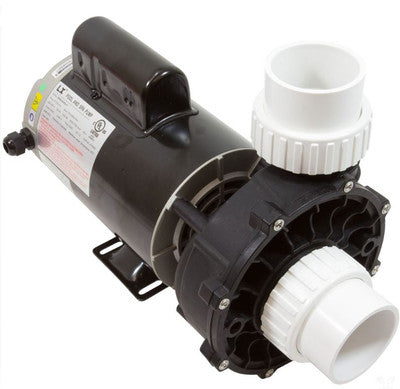

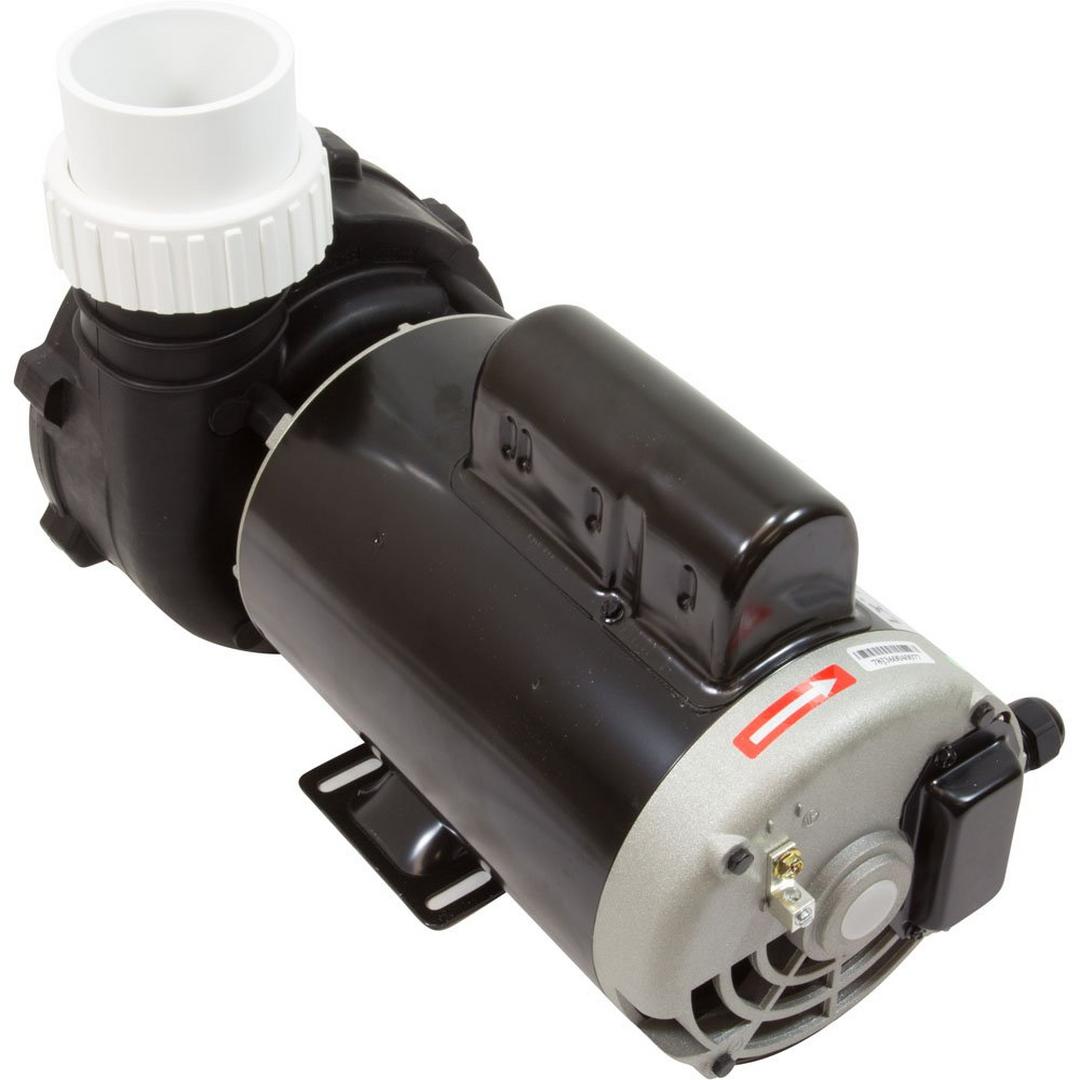

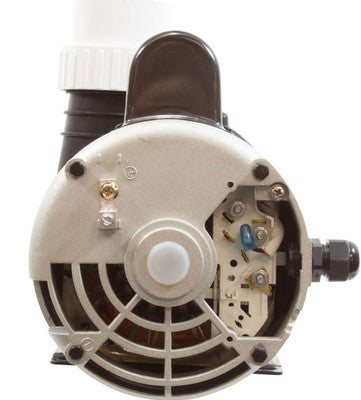

Lx Pumps 56WUA400a-II Pump 4HP 2-Speed 230V 2.5x2.5 In Out

Product Description

The LX PUMPS 56WUA400a-II is a 4HP, 230v pump with a larger intake and discharge for 2 1/2 inch plumbing. This 2-speed pump connects to 2 1/2 inch inner diameter plumbing/hose/pipe. Commonly used to replace Aqua Flo XP2e, 4.0 HP 56 frame pump, 2 speed, 2-1/2" inlet, 2-1/2" discharge pumps.

• 4HP
• 230v
• 2-Speed

Product Highlights

This LX PUMPS 56WUA400a-II pump is designed for spa systems, offering both high and low speeds for massage and filtration.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: 56WUA400a-II

Technical Specifications

• Pump Model: 56WUA400a-II
• Speed: 2 Speed (2-Spd)
• Motor Voltage: 230v
• Drain Plug Location: 3,6,9 o`clock
• Suction Style: Center
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 2-1/2"
• Discharge Style: Side
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 2-1/2"
• Horsepower: 4.0hp
• Motor Frame: 56 Frame Thru-Bolt
• Motor Amperage/Wattage: 12.0A/4.4A
• Frequency (Hz): 60
• Number of Speeds: 2
• Frame Size: 56Y
• Voltage: 230V
• Discharge Location: Side
• Discharge Size: 2-1/2" MBT
• High Speed (Amp): 12
• Lo Speed (Amp): 3.5
