Lx Pumps 56WUA400-II Pump WUA400-II 4.0hp 2-Spd 2 inches

Product Description

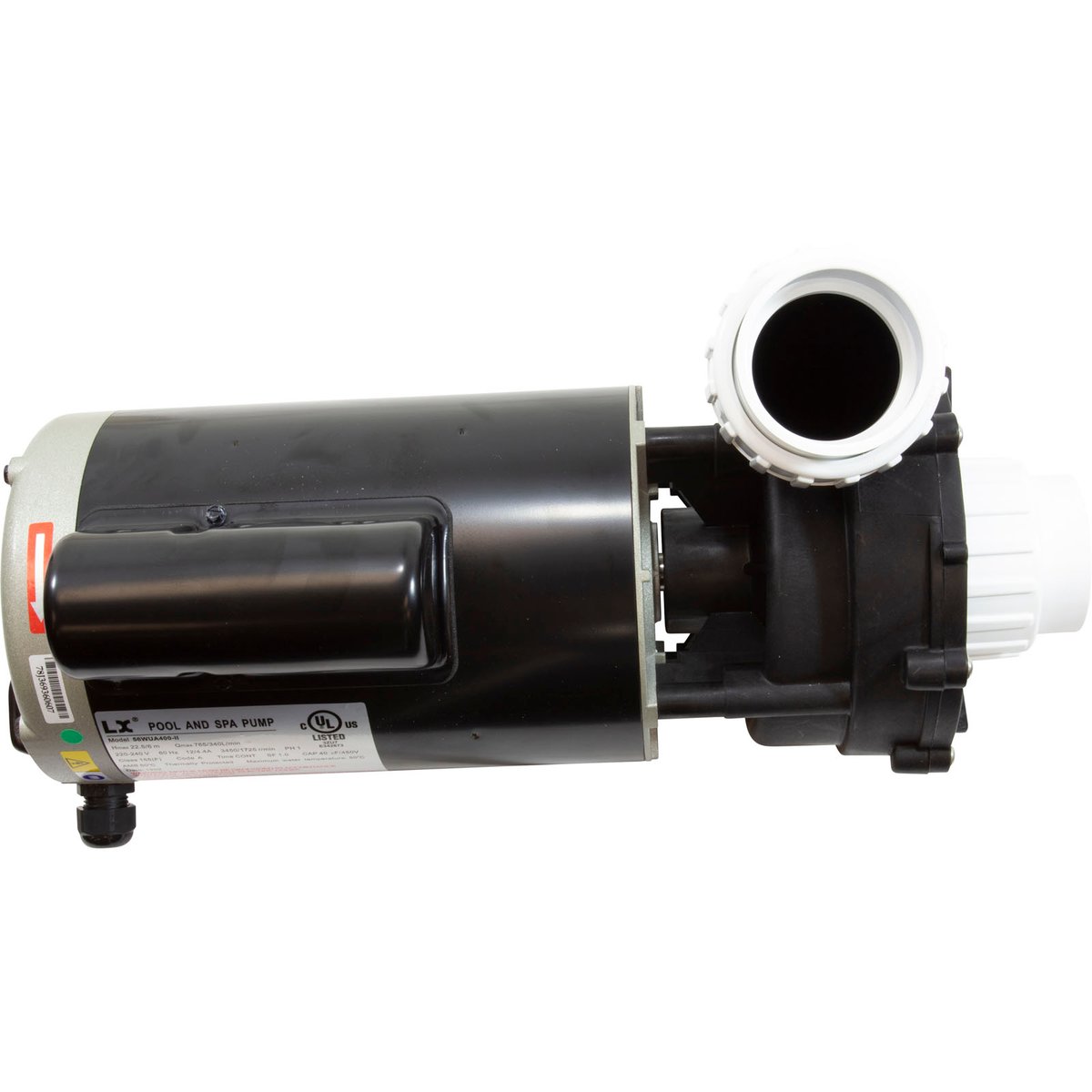

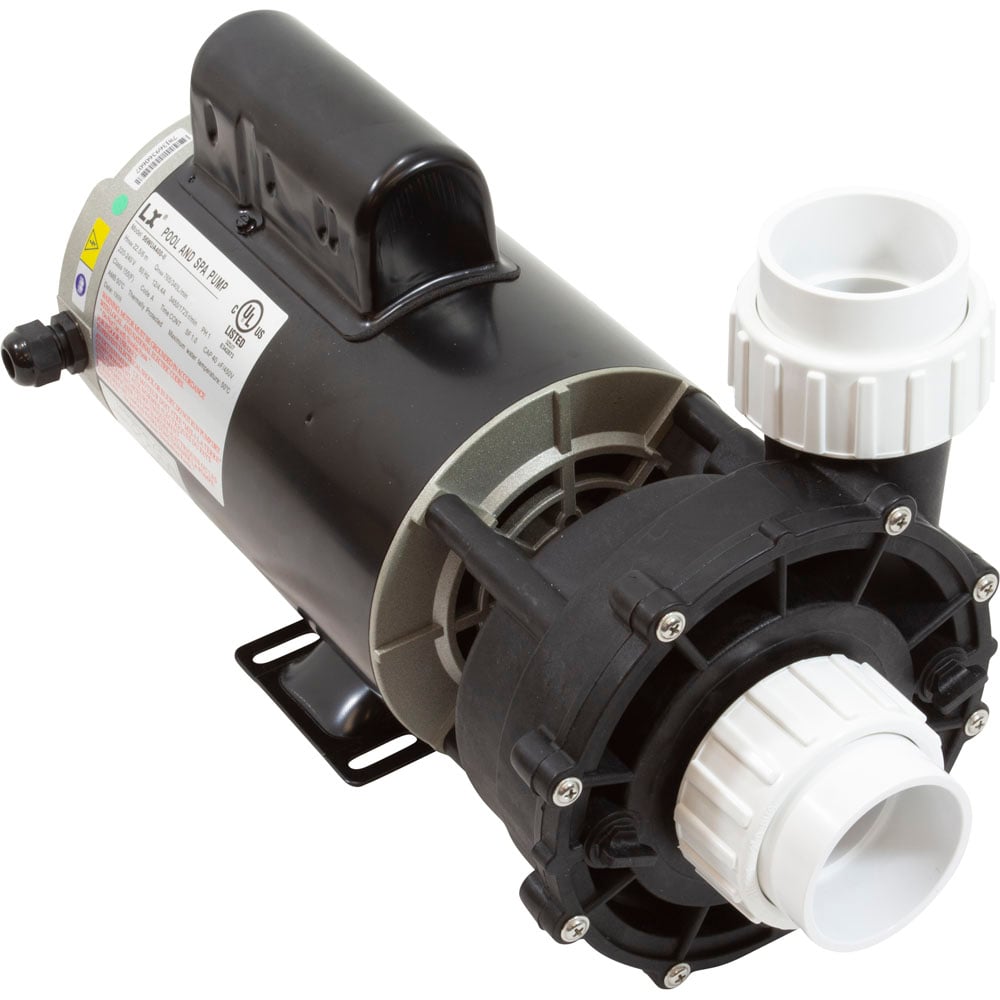

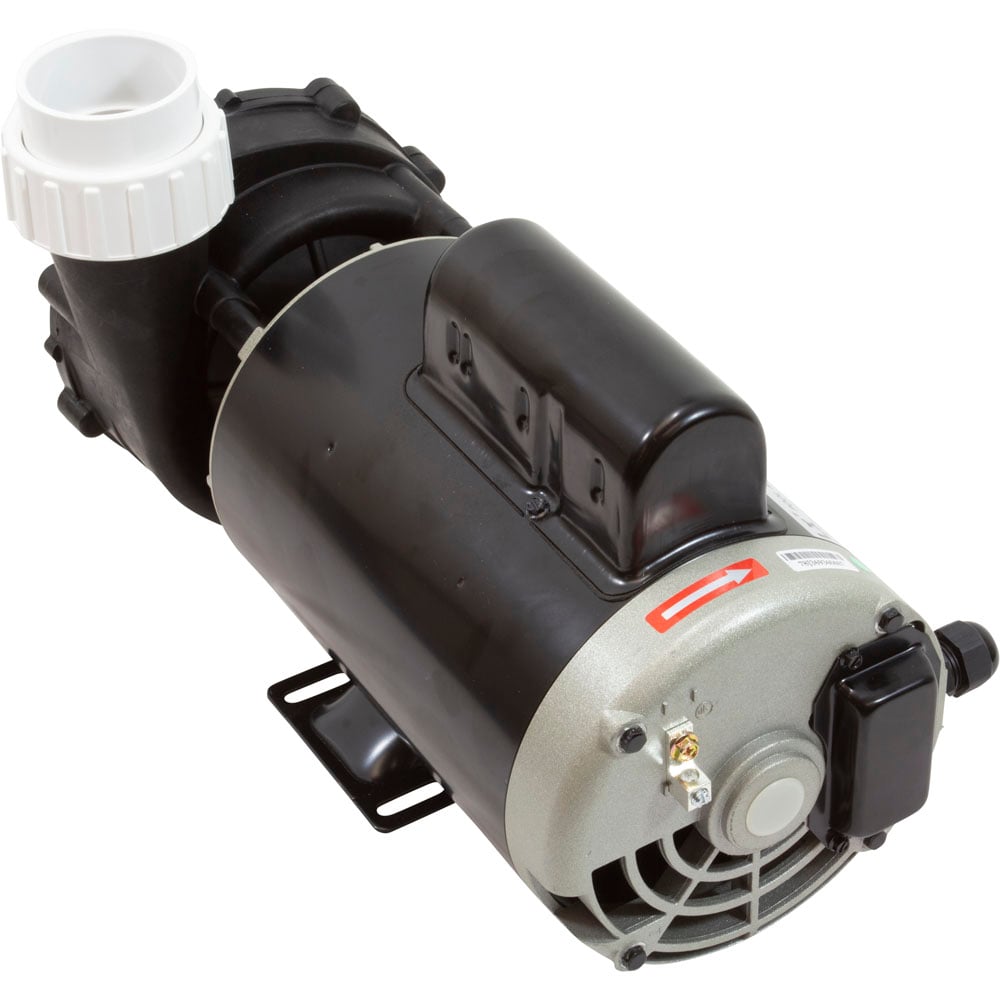

The LX PUMPS 56WUA400-II is a 4.0hp, 2-speed, 230 volt spa pump with 2 inch side discharge and center suction plumbing connections for 2 inch inner diameter hose/pipe. It operates at 12 amps at high speed, and 4.4 amps at low speed. This model LX pump is commonly used to replace Aqua Flo XP2e pumps.

• 4HP 2-speed pump
• 230 volt
• 2 inch side discharge (out top)

Product Highlights

The LX 56WUA400-II is a dual-speed spa pump designed for effective water circulation in pools and spas.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: 56WUA400-II

Technical Specifications

• Manufacturer: Lingxiao (LX) Pump
• Pump Model: 56WUA
• Speed: 2 Speed (2-Spd)
• Motor Voltage: 230v
• Drain Plug Location: 3,6,9 o`clock

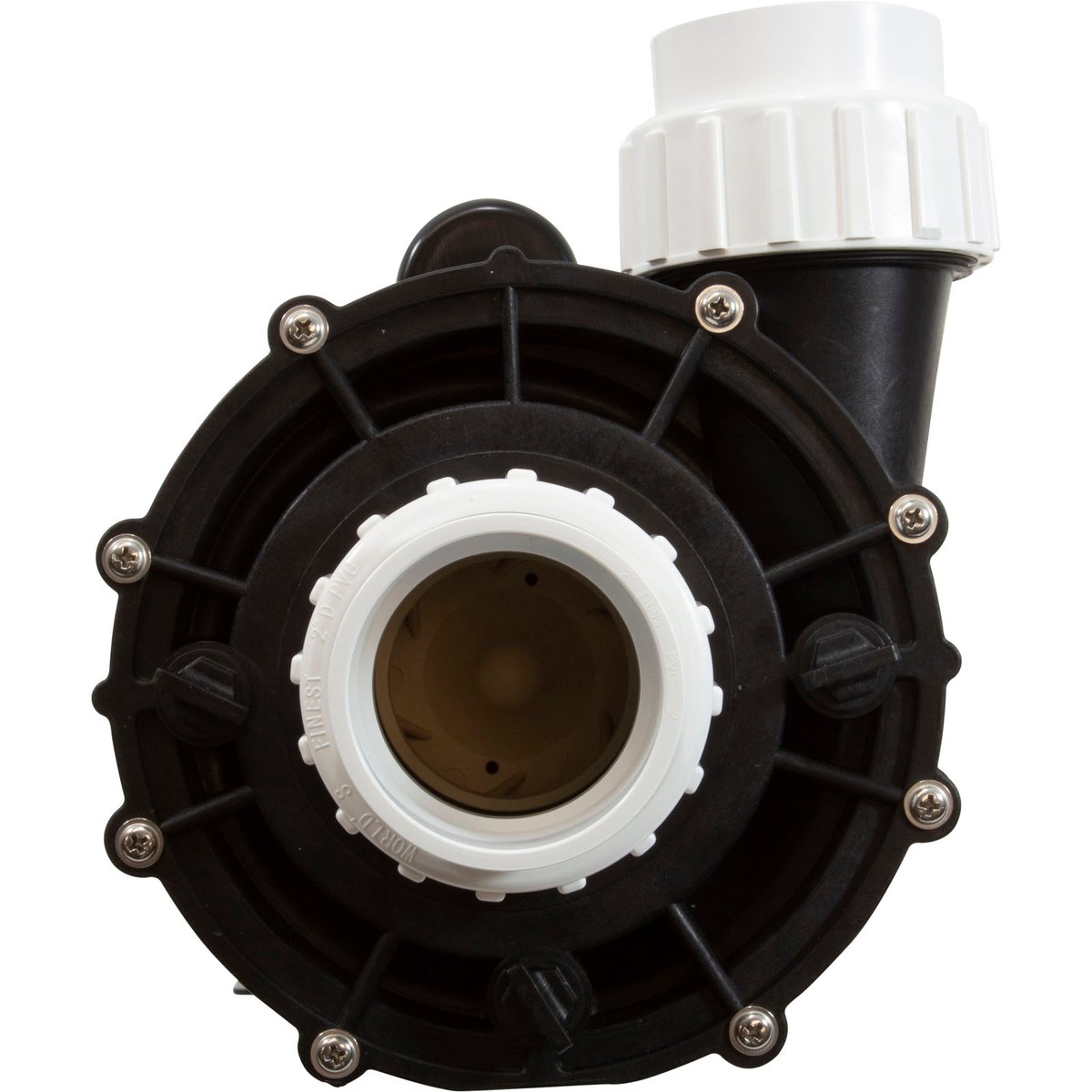

• Suction Style: Center
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 2"
• Discharge Style: Side
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 2"
• Horsepower: 4.0hp

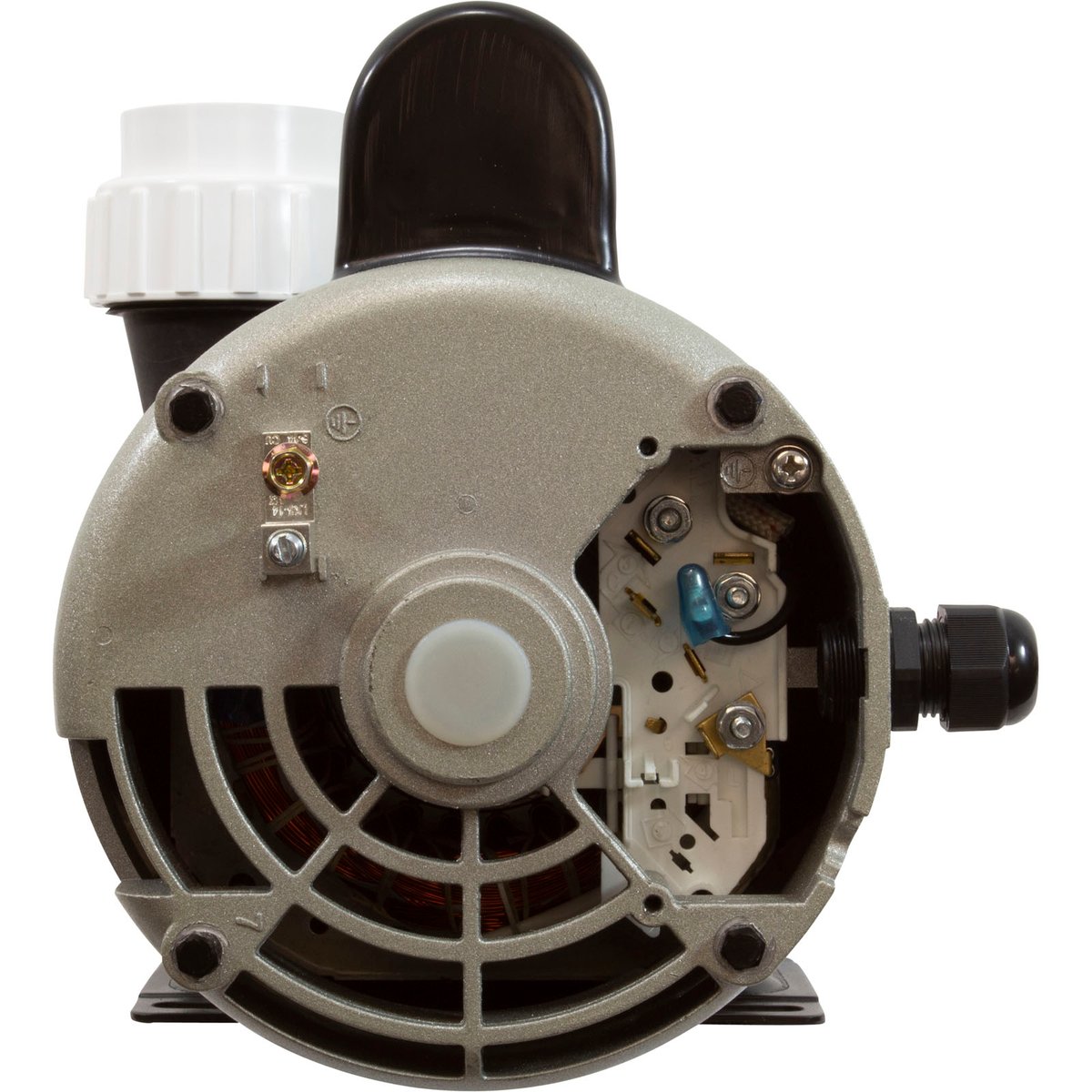

• Motor Frame: 56 Frame Thru-Bolt
• Motor Amperage/Wattage: 12.0A/4.4A
• Frequency (Hz): 60
• Number of Speeds: 2
• Frame Size: 56Y
• Voltage: 230V
• Discharge Location: Side
• Discharge Size: 2" MBT
• High Speed (Amp): 12
• Lo Speed (Amp): 4.4
• Amperage: 12.0 amps on high speed, 4.0 amps on low speed
• Intake/Discharge: 2" Side Discharge
• Mounting: Bracketless with welded steel mounting feet
