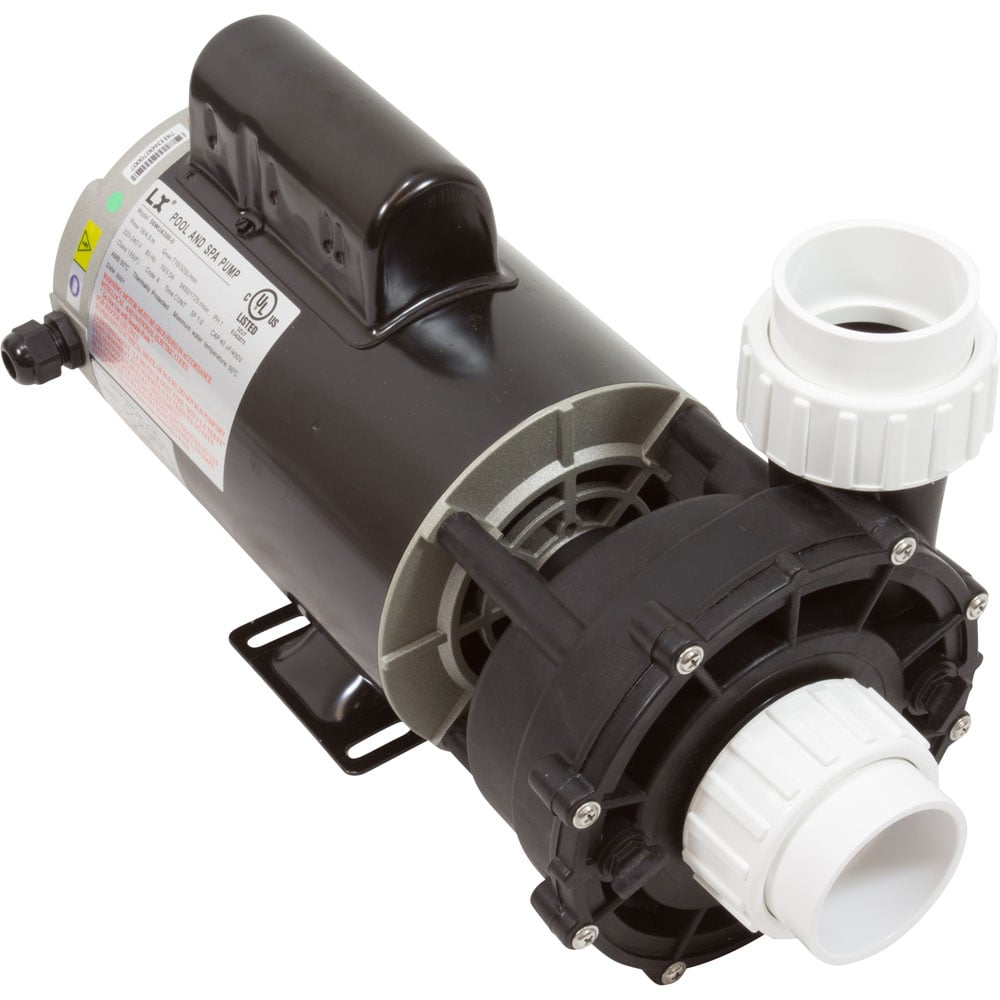

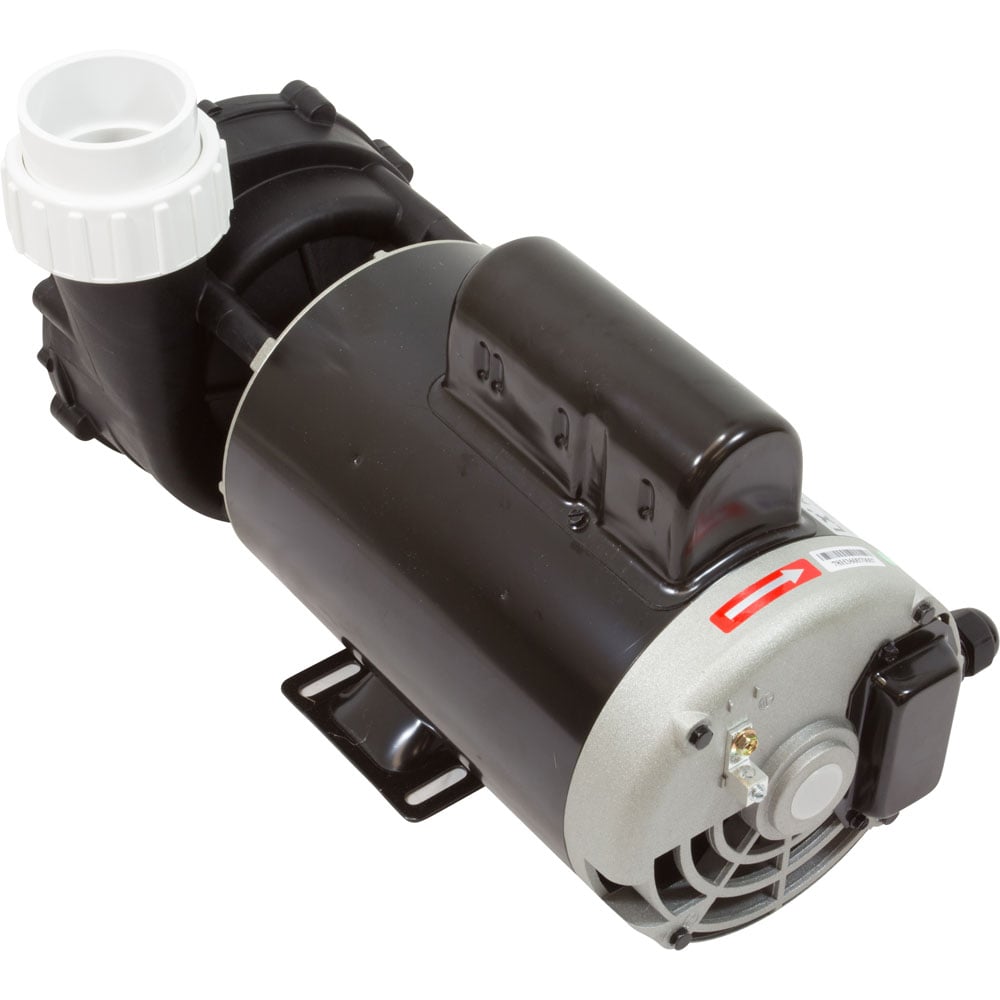

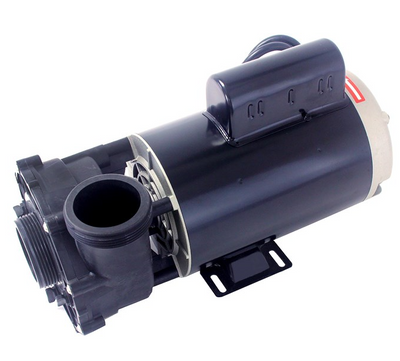

Lx Pumps 56WUA200-II Pump 2HP 2-Speed 2 inch

Product Description

The LX PUMPS 56WUA200-II is a 56 frame, 230 volt spa pump designed for pool and spa applications. It connects to 2 inch plumbing and has a side discharge. The large frame motor operates efficiently with 2-speeds. Commonly used as a replacement for various spa pumps.

• Designed for pool and spa applications
• Dual-speed operation (high and low)
• Quiet operation

Product Highlights

This LX pump is known for its quiet operation and efficient performance.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: 56WUA200-II

Technical Specifications

• Pump Horsepower: 2.0 HP
• Pump Voltage: 230 Volts
• Pump Model: 56WUA
• Speeds: 2 Speed
• Amperage: 8.0/3.0 Amp
• Frame Size: 56 Frame
• Discharge Location: Side Discharge
• Plumbing Size: 2" MBT on suction and discharge
• Mounting: Bracketless with welded steel mounting feet
• Brand: Lingxiao
• MPN: 56WUA200-II
• Category: Spa & Hot Tub Parts
• Speed: 2 Speed (2-Spd)
• Motor Voltage: 230v
• Drain Plug Location: 3,6,9 o`clock
• Suction Style: Center
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 2"
• Discharge Style: Side
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 2"
• Motor Frame: 56 Frame Thru-Bolt
• Motor Amperage/Wattage: 8.0A/3.0A
• Inlet/Outlet: 2" Side Discharge
