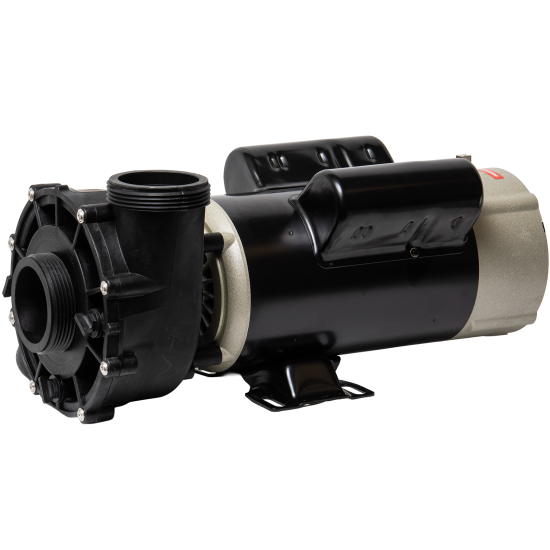

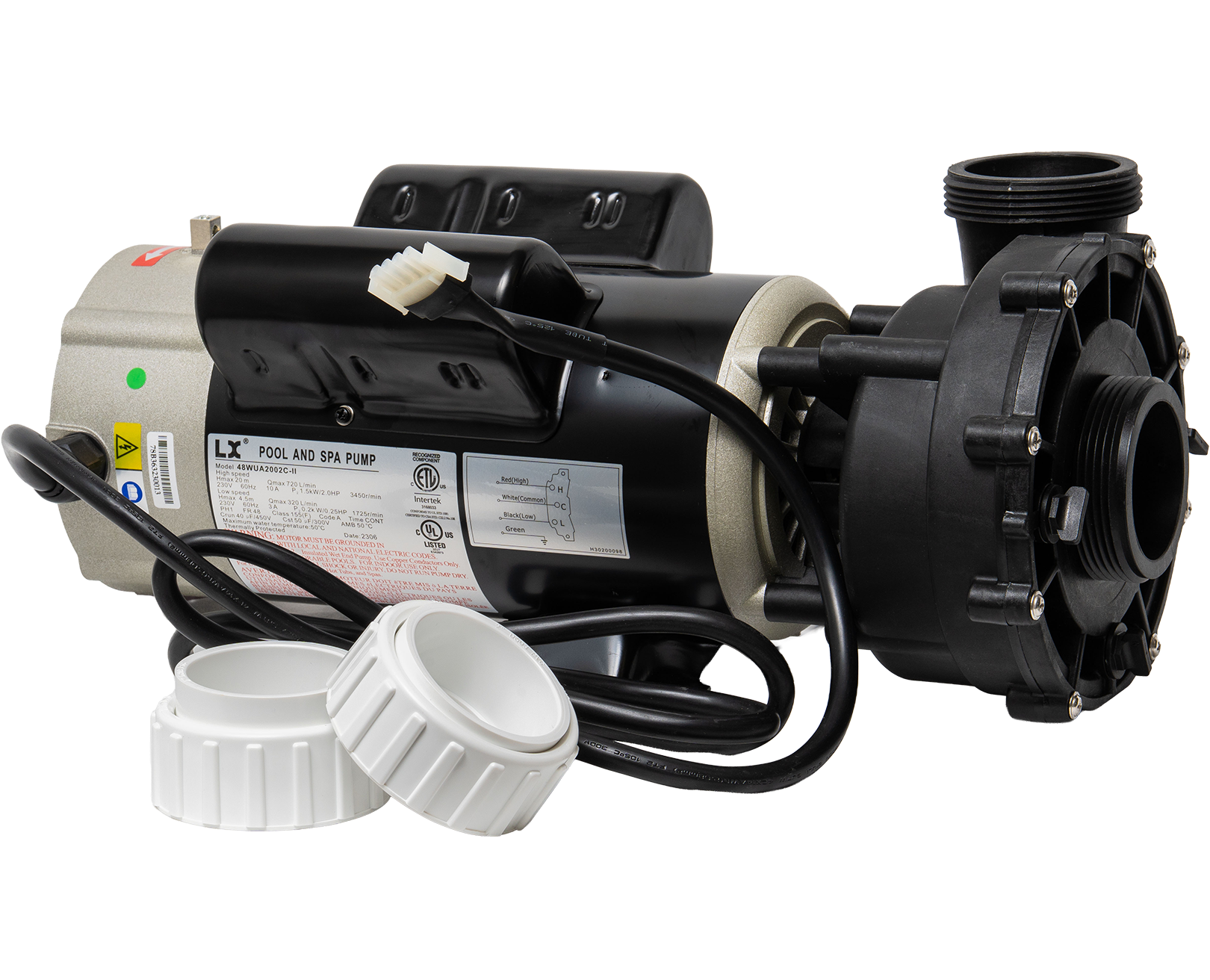

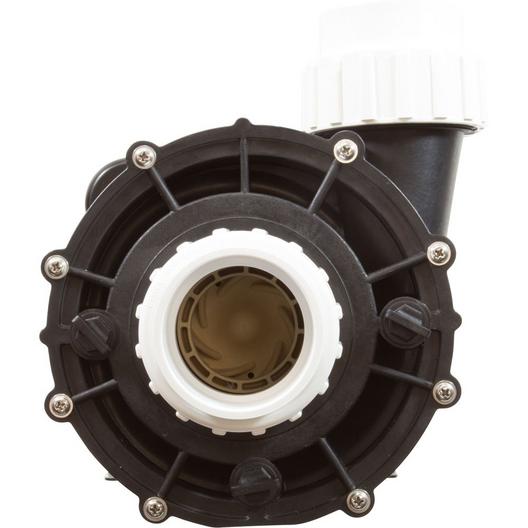

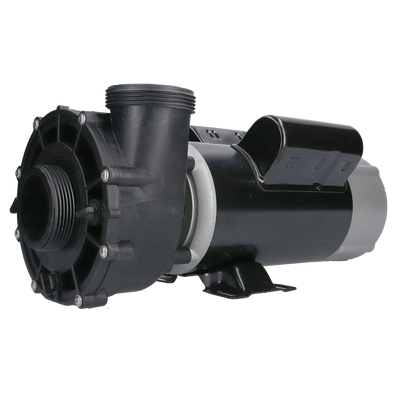

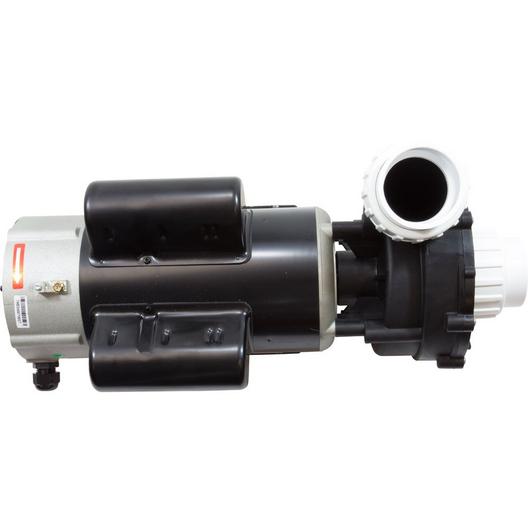

Lx Pumps 48WUA2002C-II 2.5 HP Spa Pump 2 Speed 230V

Product Description

The LX PUMPS 48WUA2002C-II is a two-speed spa pump designed for spas in North America. It features a high speed for massage and a low speed for filter and cycle functions. The 2” inlet and outlet provide high performance and low noise, making it ideal for spa systems. A mechanical seal ensures watertight operation for extended use.

• Two Speed LX SPA Pump
• Designed for SPA usage in North America
• 2” inlet and outlet for high-performance and low-noise

Product Highlights

This 2.5 HP, 230V, two-speed pump is designed for efficient spa operation, offering both massage and filtration capabilities.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: 48WUA2002C-II
• Country of Origin: China

Technical Specifications

• Horsepower: 2.5
• Frequency (Hz): 60
• Number of Speeds: 2
• Frame Size: 48Y
• Voltage: 230V
• Discharge Location: Side
• Discharge Size: 2" MBT
• High Speed (Amp): 10
• Lo Speed (Amp): 3
• Alternate Part Numbers: 48WUA2002C-II, 48WUA2002CII, 34-343-1035
• Speed: 2
• Amperage: 10A/3A
• RPM: 3450/1725 rpm
• Frame: FR 48
• Connection: 2" inlet/outlet
• Brand: LX
• Type: Spa Pump
