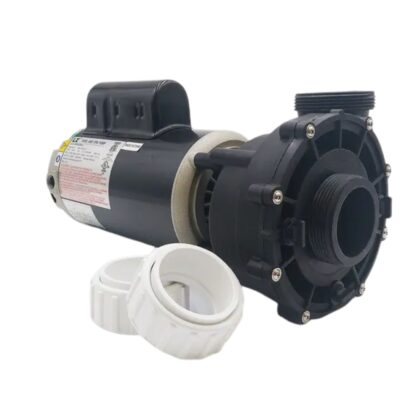

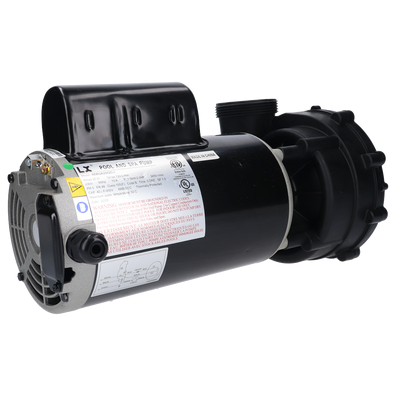

Lx Pumps 48WUA2002C-I (NF) Pump 2HP 1-Speed 2 inch

Product Description

The LX PUMPS 48WUA2002C-I (NF) is a 2 HP spa pump designed for spa systems. It operates at a single speed and is designed for use with a 230V power supply. It has a 2-inch inlet and outlet for high-performance and low-noise operation. This pump does not have mounting feet and requires a separate bracket for installation.

• 48 frame
• 230V
• 2 inch Intake and Side Discharge

Product Highlights

The LX PUMPS 48WUA2002C-I (NF) is commonly used to replace Sundance and Jacuzzi spa pumps.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: 48WUA2002C-I (NF)

Technical Specifications

• Manufacturer: Lingxiao (LX) Pump
• Pump Model: 48WUA
• Speed: 1 Speed (1-Spd)
• Motor Voltage: 230v
• Drain Plug Location: 3,6,9 o`clock
• Suction Style: Center
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 2"
• Discharge Style: Side
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 2"
• Horsepower: 2.0hp
• Motor Frame: 48 Frame Thru-Bolt
• Motor Amperage/Wattage: 10.0A
• Frequency (Hz): 60
• Number of Speeds: 1
• Frame Size: 48Y
• Discharge Location: Side
• Discharge Size: 2" MBT
• High Speed (Amp): 10
• Mfg #: 48WUA2002C-I (NF)
• SKU: 48WUA2002C-I (NF)
