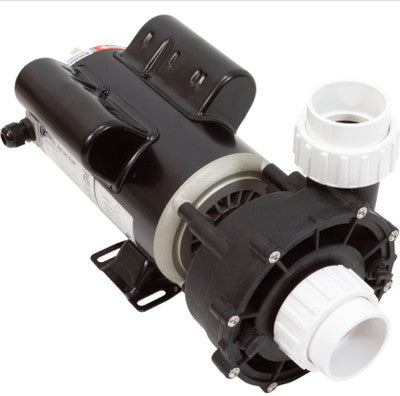

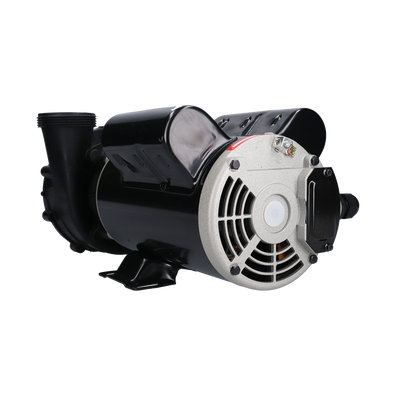

Lx Pumps 48WUA1501C-II Pump 1.5 HP 2-Speed 115V 48 Fr 2 Inch

Product Description

The LX PUMPS 48WUA1501C-II is a 2-speed, 1.5 HP, 115 volt spa pump with 2 inch plumbing connections. It is designed for pool and spa applications. Commonly used to replace Aqua Flo XP2e 1.5 HP 115 Volt 48 frame pump, 2 speed, 2" inlet, 2" discharge pumps. Includes 2 pump unions.

• 2-speed
• 1.5 HP
• 115 volt

Product Highlights

This LX pump is a 2-speed spa pump designed for efficient and durable operation in pool and spa systems. It features 2" inlet and outlet for high-performance and low-noise.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: 48WUA1501C-II

Technical Specifications

• Pump Model: 48WUA
• Speed: 2 Speed (2-Spd)
• Motor Voltage: 115v
• Drain Plug Location: 3,6,9 o`clock
• Suction Style: Center
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 2"
• Discharge Style: Side
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 2"
• Horsepower: 1.5hp
• Motor Frame: 48 Frame Thru-Bolt
• Motor Amperage/Wattage: 13.8A/3.8A
• Mfg #: 48WUA1501C-II (NF)
• SKU: 48WUA1501C-II (NF)
• Frequency (Hz): 60
• Number of Speeds: 2
• Frame Size: 48Y
• Voltage: 115V
• Discharge Location: Side
• Discharge Size: 2" MBT
• High Speed (Amp): 13.8
• Lo Speed (Amp): 3.8
• Alternate Part Numbers: 48WUA1501CII, 34-343-1025
• Manufacturer: Lingxiao (LX) Pump
