Product Description

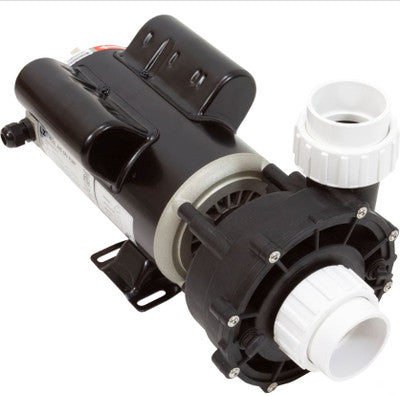

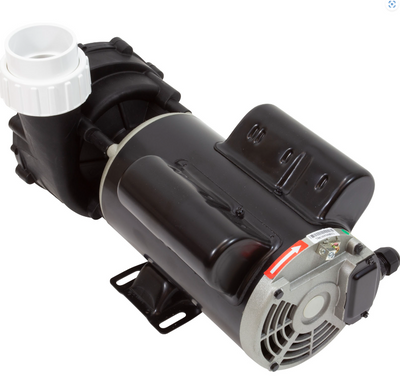

The LX PUMPS 48WUA1501C-II (NF) is a 2-speed, 1.5 HP, 115 volt spa pump with 2 inch plumbing connections. It includes 2 pump unions and can be wired as either a 1-speed or 2-speed pump. This pump is commonly used to replace Aqua Flo XP2e 1.5 HP 115 Volt 48 frame pumps.
- 2-speed
- 1.5 HP
- 115 volt
- 2 inch plumbing connections
Product Highlights
LX 48WUA1501C-II (NF) is a 2-speed spa pump designed for pool and spa applications. It has 2" inlet and outlet for high-performance and low-noise.
Product Information
Standard Information
-
Brand: LX PUMPS
-
Manufacturer Part Number: 48WUA1501C-II (NF)
-
Country of Origin: China
Technical Specifications
-
Pump Model: 48WUA
-
Speed: 2 Speed (2-Spd)
-
Motor Voltage: 115v
-
Drain Plug Location: 3,6,9 o`clock
-
Suction Style: Center
-
Suction Connection Type: Male Buttress Thread (mbt)
-
Suction Pipe Size: 2"
-
Discharge Style: Side
-
Discharge Connection Type: Male Buttress Thread (mbt)
-
Discharge Pipe Size: 2"
-
Horsepower: 1.5hp
-
Motor Frame: 48 Frame Thru-Bolt
-
Motor Amperage/Wattage: 13.8A/3.8A
-
Mfg #: 48WUA1501C-II (NF)
-
SKU: 48WUA1501C-II (NF)
-
Frequency (Hz): 60
-
Number of Speeds: 2
-
Frame Size: 48Y
-
Voltage: 115V
-
Discharge Location: Side
-
Discharge Size: 2" MBT
-
High Speed (Amp): 13.8
-
Lo Speed (Amp): 3.8
-
Alternate Part Numbers: 6500-845, 6500-345, SD6500-845, SD6500-345
-
Compatible Equipment Make: Sundance and Jacuzzi Spas
-
Part Type: Spa Pump
-
Type: Spa Plumbing & Jets
-
Brand: LX
-
Compatible Equipment Type: Spa Pool, Hot Tub
-
MPN: 48WUA1501C-II (NF), 6500-845, 6500-345, SD6500-845, SD6500-345
-
Features: Baseless/No Feet
-
Features 2: 2" In/Out
-
Inclusions: Unions Included
-
Cord Type: NONE
-
Custom Bundle: No
-
Modified Item: No
-
Country of Origin: China
