Lx Pumps 48WUA1001C-II Spa Pump 2 Speed 1 HP 115V Replacement MPN

Product Description

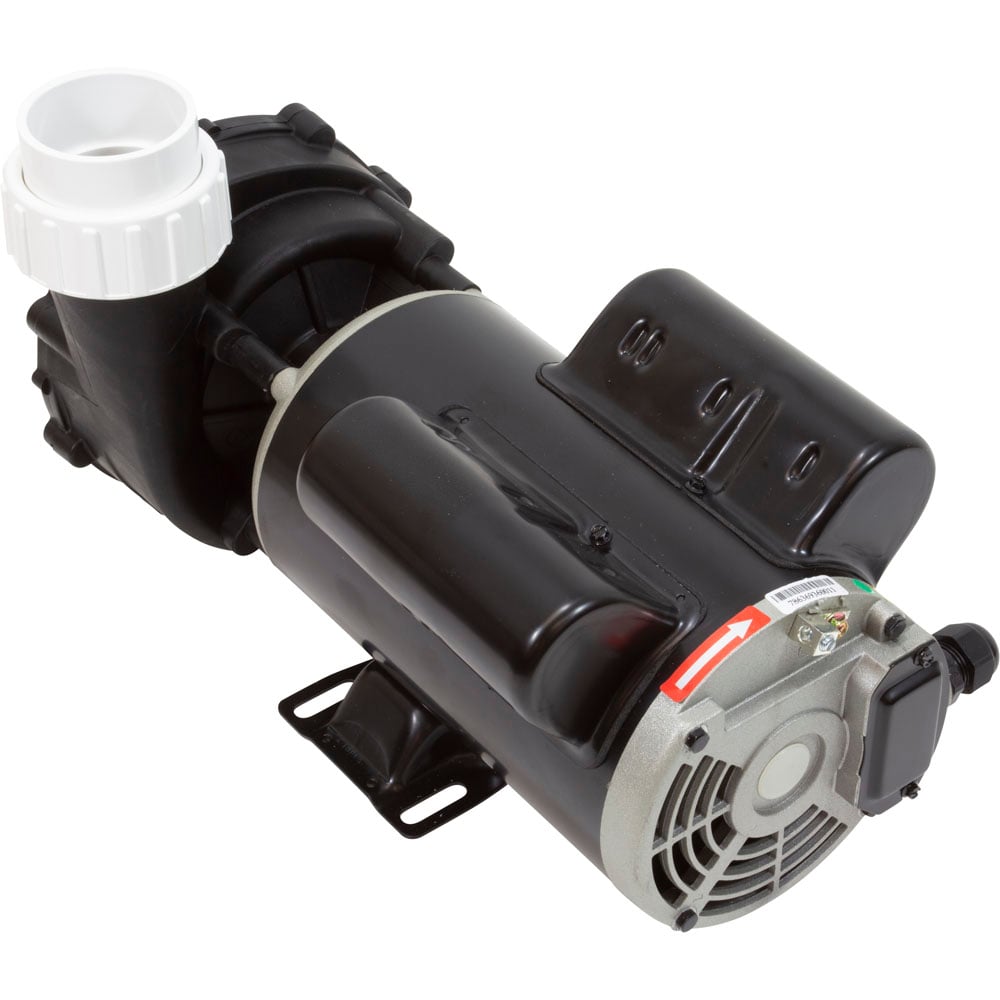

The LX PUMPS 48WUA1001C-II is a 2-speed spa pump designed for spa systems. It can achieve high-speed for massage and low speed for filter and cycle functions. The 2” inlet and outlet ensures high-performance and low-noise operation, perfected for SPA systems. Mechanical seal type ensure watertight in long-time continuous operation.

• 2-Speed Operation
• 115V Voltage
• 2-Inch Inlet/Outlet

Product Highlights

This LX PUMPS spa pump is designed for efficient spa systems, providing both high and low-speed operations.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: 48WUA1001C-II

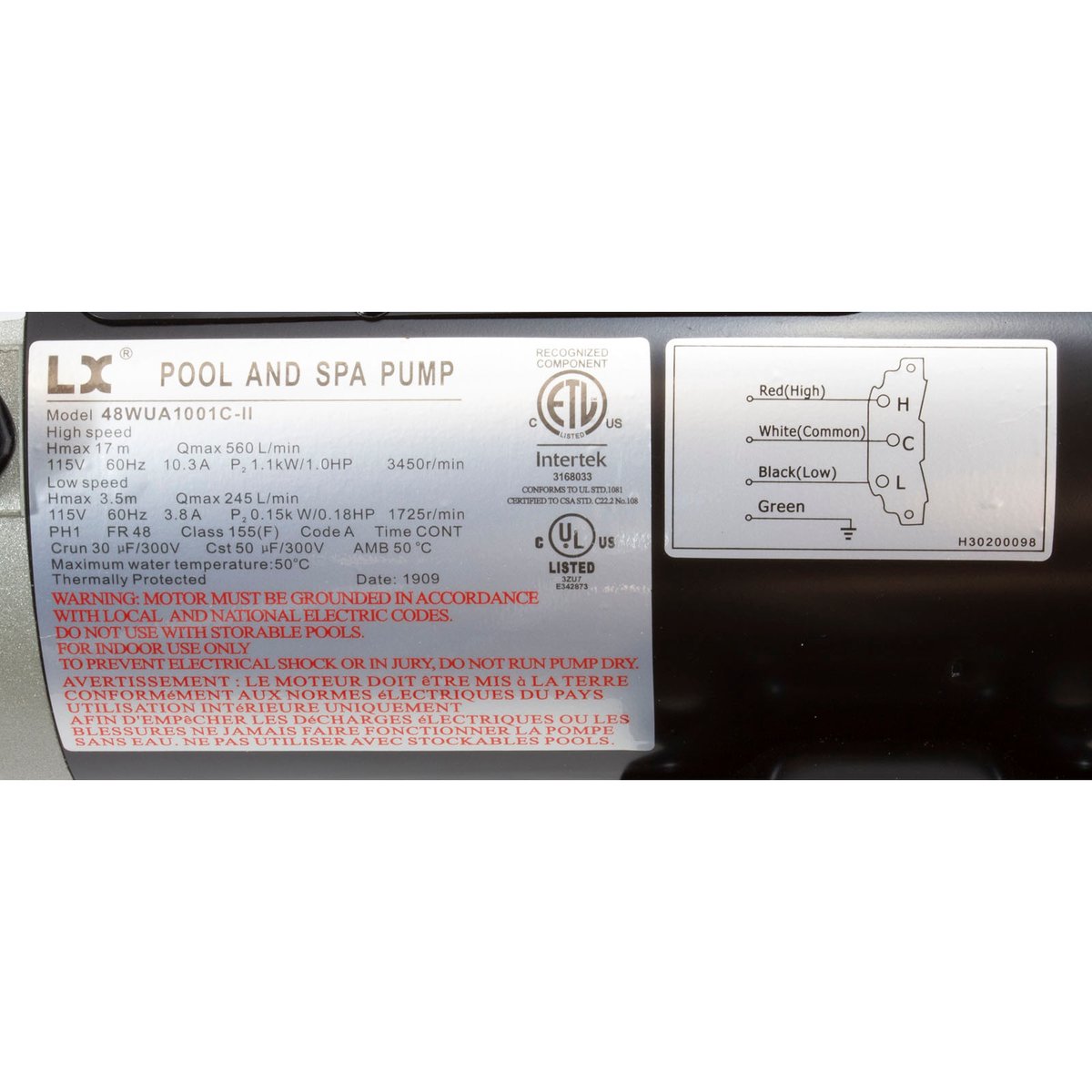

Technical Specifications

• Frequency (Hz): 60
• Number of Speeds: 2
• Frame Size: 48Y
• Voltage: 115V
• Discharge Location: Side
• Discharge Size: 2" MBT
• High Speed (Amp): 10.3
• Lo Speed (Amp): 3.8
• Motor Voltage: 115v
• Speed: 2 Speed (2-Spd)
• Motor Amperage/Wattage: 10.3A/3.8A
• Horsepower: 1.5hp
• Manufacturer: Lingxiao (LX) Pump
• Pump Model: 48WUA

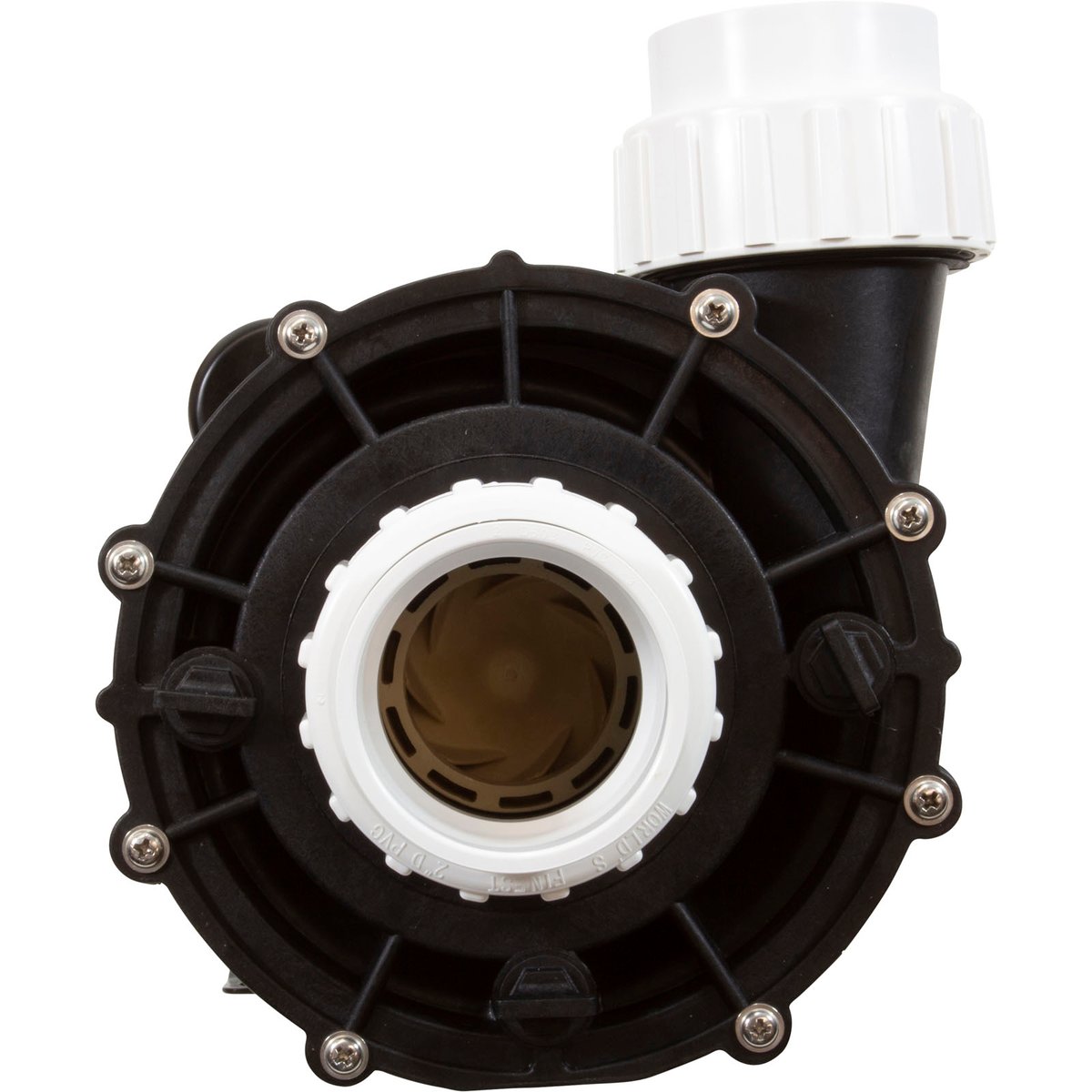

• Suction Pipe Size: 2"
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Style: Center
• Discharge Pipe Size: 2"
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Style: Side
• Motor Frame: 48 Frame Thru-Bolt
• Drain Plug Location: 3,6,9 o`clock
• Type: Pool and Spa Pump
