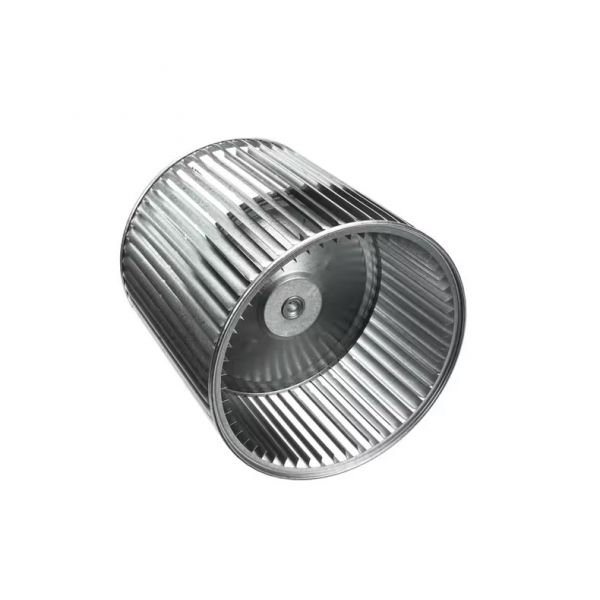

Luxaire s1-02638510000-cl Blower Wheel 11x11 1/2 Bore Cw

Product Description

The LUXAIRE s1-02638510000-cl is a centrifugal blower wheel designed for use in forced-air HVAC systems. It measures 11 inches in diameter by 11 inches in width and features a 1/2-inch bore for shaft mounting. Rotation is clockwise (CW) when viewed from the drive side. Centrifugal blower wheels draw air into the center hub and accelerate it outward through the blade assembly, delivering high-velocity airflow into the system ductwork. This wheel is installed inside the blower housing of air handlers and furnace blower sections by qualified HVAC technicians.

This blower wheel is suited for residential and light commercial forced-air applications where an 11-inch by 11-inch centrifugal wheel with a 1/2-inch bore and clockwise rotation is specified. It serves as a direct replacement in systems using a matching blower housing configuration. Technicians should confirm bore size, wheel diameter, wheel width, and rotation direction against the unit nameplate or OEM documentation before installation.

Key Features

• 11-inch diameter by 11-inch width centrifugal blower wheel
• 1/2-inch bore for standard shaft compatibility
• Clockwise (CW) rotation for correct airflow direction
• Centrifugal blade design moves air from center outward into ductwork
• OEM-style replacement for HVAC blower assemblies

Compatibility

Designed as an OEM-style replacement blower wheel for forced-air HVAC systems requiring an 11-inch by 11-inch centrifugal wheel with a 1/2-inch bore and clockwise rotation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the blower assembly. Confirm that shaft diameter matches the 1/2-inch bore and that rotation direction matches the existing blower housing orientation before securing the wheel. Refer to the equipment service manual for proper blower assembly reassembly procedures.

Technical Specifications

• Type: Blower Wheel
• Diameter: 11 inches
• Width: 11 inches
• Bore Size: 1/2 inch
• Rotation: Clockwise (CW)

Standard Information

• Brand: LUXAIRE
• Manufacturer Part Number: s1-02638510000-cl
