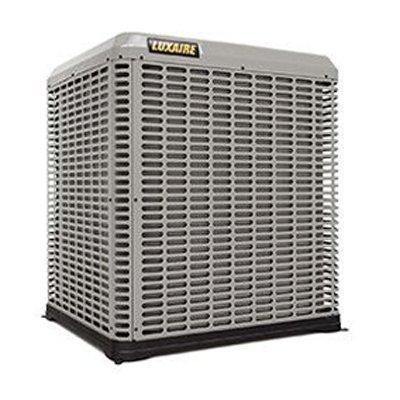

Luxaire AL21B6021S Variable Capacity Air Conditioner 5 tons

Product Description

The Luxaire AL21B6021S is a split condenser with ENERGY STAR® Most Efficient qualifying efficiency up to 21 SEER. Charge Smart™ allows for faster, more accurate installations. Unit pairing with Luxaire® Hx™ and Hx™3 Touch-screen Thermostats enhances comfort and improves control of your system. This 5 ton air conditioner provides 60000 Btu/hr cooling capacity.

• ENERGY STAR® Most Efficient qualifying efficiency up to 21 SEER
• Charge Smart™ allows for faster, more accurate installations
• Unit pairing with Luxaire® Hx™ and Hx™3 Touch-screen Thermostats enhances comfort and improves control of your system

Product Highlights

This Luxaire air conditioner features a SilentDrive™ system, variable-speed compressor, and Climate Sync™ for efficient operation. It integrates with the Hx™3 Communicating Zoning System.

Product Information

Standard Information

• Brand: LUXAIRE
• Manufacturer Part Number: AL21B6021S

Technical Specifications

• Make: Luxaire
• Model code: AL21B6021S
• Category: Cooling
• Capacity: 5 tons
• Refrigerant Lines - Liquid/Suction: 3/8 / 7/8 inches
• Electrical: 208-230/1/60 V/phase/Hz
• Refrigerant Type: R-410a
• Amperage Rating: 33.9 A
• CFM Rating: 5300 cfm
• Compressor Type: Scroll
• Cooling Capacity: 60000 Btu/hr
• Drive Type: Inverter
• Finish: Galvanized/Powder-Coated
• Fins per Inch: 18 FPI
• Frequency Rating: 60 Hz
• Fuse Rating: 50 A
• HP Rating: 1/3 hp
• Liquid Line Size: 3/8 in
• Material: Steel
• Model: AL21
• Motor Type: ECM
• Phase: 1 ph
• Rotational Speed: 1050 rpm
• SEER Rating: 20
• Series: Acclimate Series
• Sound Level: 74 dBA
• Suction Line Size: 7/8 in
• Temperature Rating: 57 to 72 deg F
• Voltage Rating: 208-230 V
