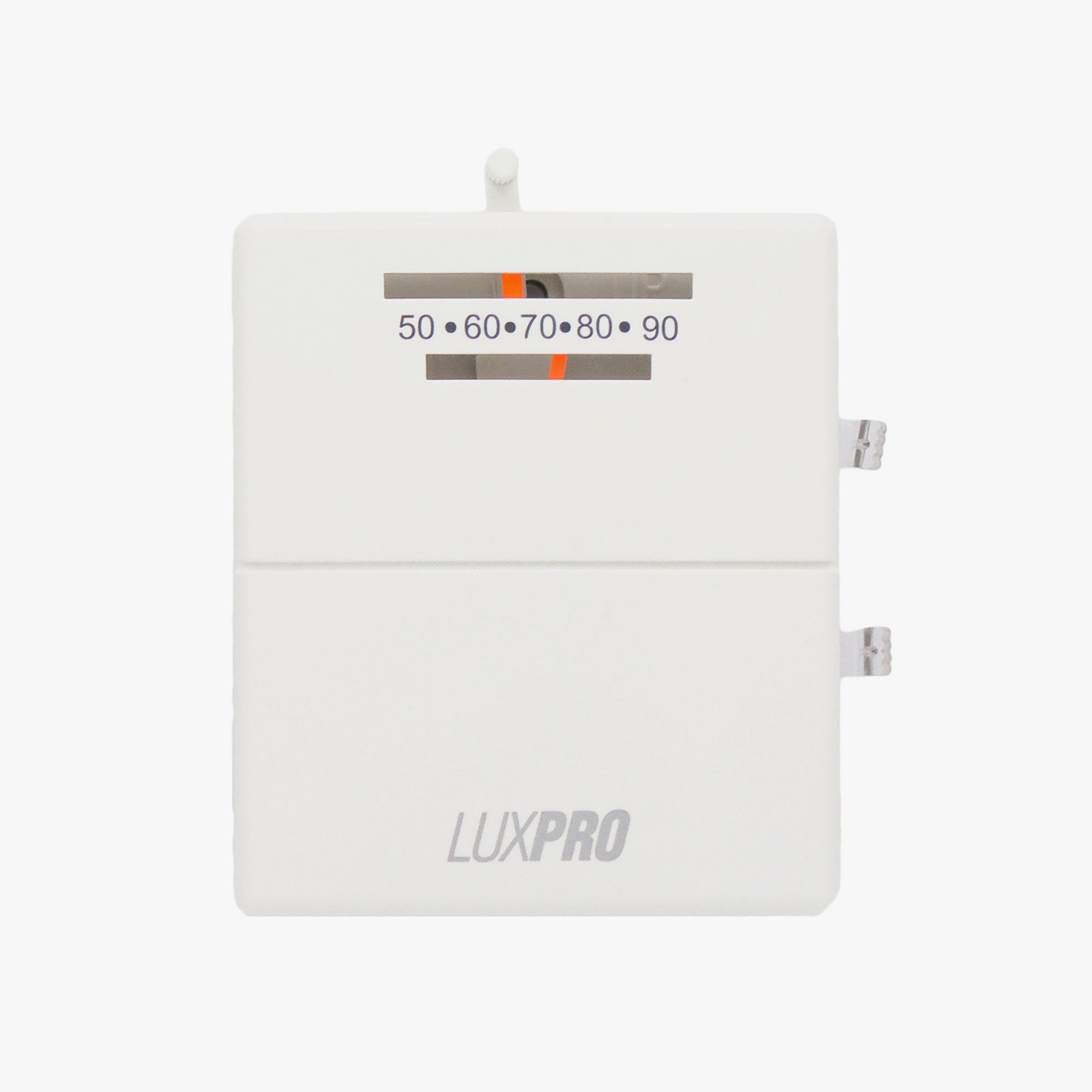

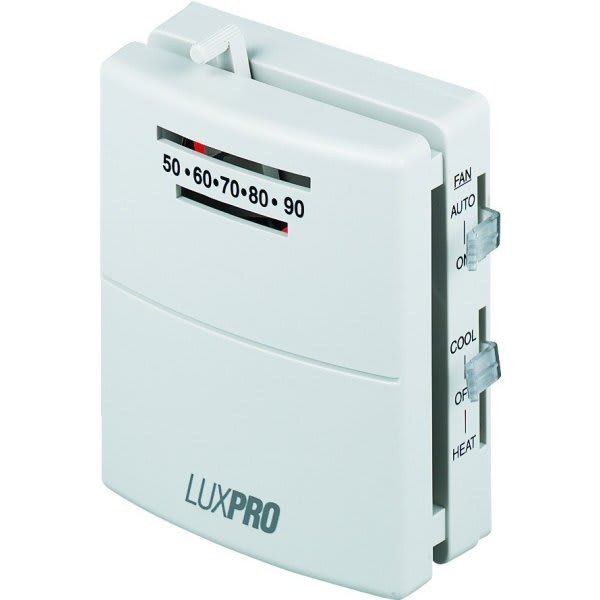

Lux Products PSM40-SA 24v/Millivolt Single Stage Heating And Cooling Snap Acting Thermostat 50-90F Replaces PSM40 PSM400

Product Description

The LUX PRODUCTS PSM40-SA is a 24v/Millivolt single-stage heating and cooling snap-acting thermostat with a temperature range of 50-90F. It features a snap-action mechanism and an adjustable heat anticipator. This thermostat is compatible with millivolt and 2-wire hydronic systems and hydronic air handlers. It is designed for vertical mounting and is easy to install.

• Snap action mechanism for quick and reliable operation
• Adjustable heat anticipator for optimal comfort control
• Compatible with 24V and millivolt systems

Product Highlights

The LUX PRODUCTS PSM40-SA thermostat offers reliable single-stage heating and cooling control with a simple, user-friendly design.

Product Information

Standard Information

• Brand: LUX PRODUCTS
• Manufacturer Part Number: PSM40-SA
• Country of Origin: CN

Technical Specifications

• MPN: PSM40-SA
• Brand: LUX PRODUCTS
• Stages: 1 Heat/1 Cool
• Amperage: 0.15-1.2
• User Interface: Mechanical
• Application: Single-Stage (Heat/Cool)
• Mount: Vertical
• Voltage: 24 Volts (AC)
• Features: Millivolt Compatible 2 Wire Hydronic System Compatible Hydronic Air Handler Compatible
• Depth (Inches): 1-3/8"
• Wattage: 3.6 to 36
• Type: Single Stage Heat Pump 2 Wire Hydronic Oil Millivolt Gas Electric Hydronic Air Handlers
• Wiring: B W O G Y A Rh Rc
• Changeover: Manual
• Max Temp (F): 90°F
• Min Temp (F): 45°F
• Temperature Range (F): 45°F - 90°F
• Width: 3"
• Height (Inches): 3.5"
• Programmability: Non-Programmable
• Model Name: PSM40SA
• Special Feature: Snap Action Mechanism, Adjustable heat anticipator
• Specific Uses For Product: Heating systems, Air conditioning systems, Hydronic systems
• Temperature Control Type: Manual
• Included Components: Therm, Heat/Cool Mechanical
• Power Source: Battery Powered
• Material: Metal
• Shape: Rectangular
• Display Type: Manual
• Control Type: Button Control
• Control Method: Touch
• Mounting Type: Wall Mount
• Style: PSM40SA
• Backlight: No
• Electronic ratings: 24 VAC (30 VAC Max)
• Anticipator rating: 0.15A to 1.2A
• Temperature control range: 45°F to 90°F (7°C to 32°C)
• Accuracy: 1±°F over a range of 50°F to 95°F
• Environmental Limits: Moisture and dust: meets IP20
• Operating humidity: 20% to 90% non-condensing
• Operating temperature: +32°F to +95°F (+0°C to +35°C)
• Storage temperature: -4°F to +130°F (-20°C to +54°C)
• Package Quantity: 1
• Thermostat Type: Mechanical
• Certifications & Standards: AbilityOne, ADA Compliant, GSA Approved, TAA/BAA Compliant, UL Listed
