Lutze 709706 Ls-A-9706 5m Pur 24V

Product Description

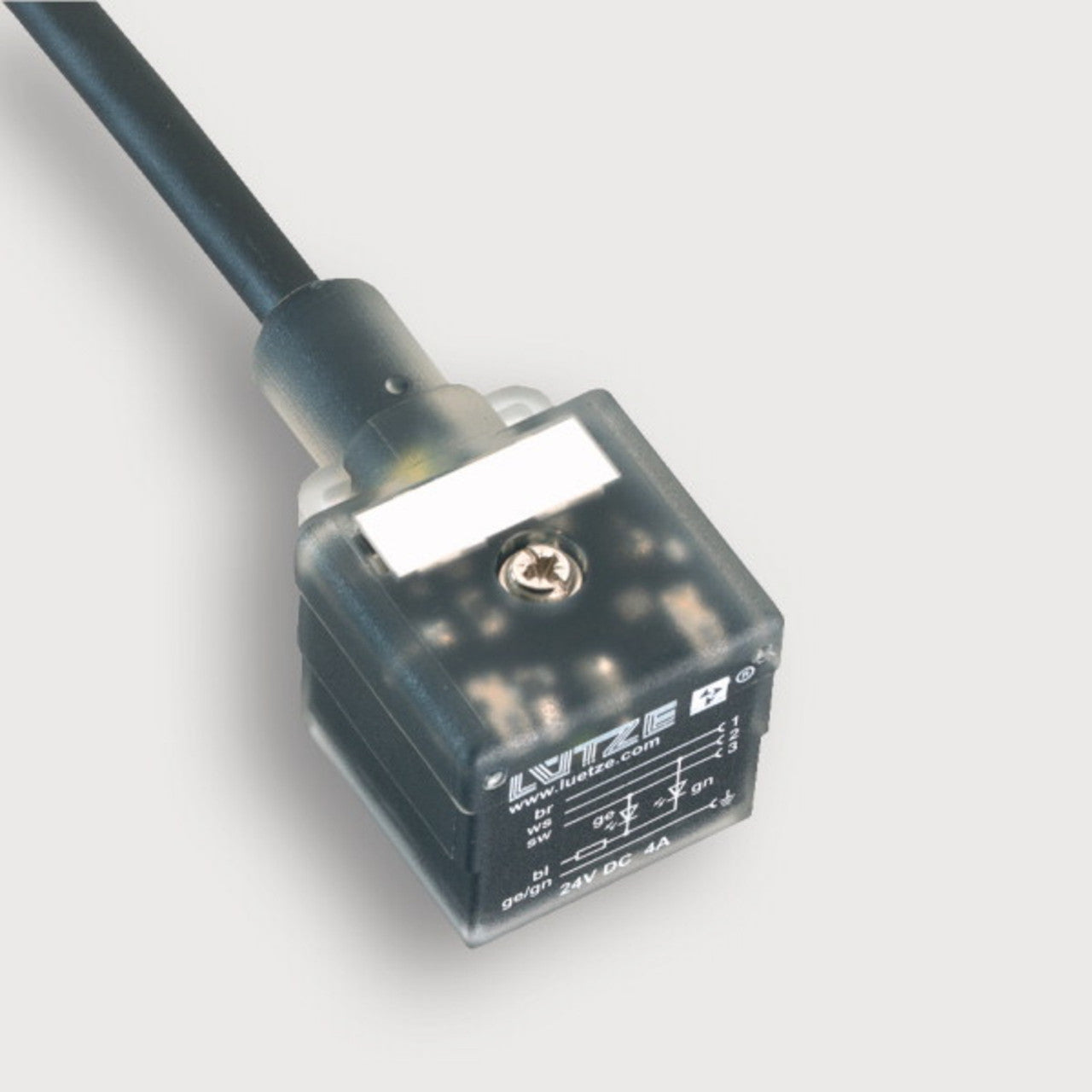

The Lutze 709706 is a Design A (18mm), 2-pin + 2xPE, PUR connecting lead featuring a protection device and LED status display. It includes a bridged ground conductor (PE) and allows for 0°/180° mounting. This valve suppressor has a rated voltage of 24 V AC/DC and a current consumption of 4 mA.

• Features a protection device and LED status display.
• Includes a bridged ground conductor (PE).
• Offers very good chemical and oil resistance.

Product Highlights

The Lutze 709706 is a reliable valve suppressor with a durable PUR connecting lead, ideal for various industrial applications.

Product Information

Standard Information

• Brand: LUTZE
• Manufacturer Part Number: 709706

Technical Specifications

• Component: Sensor-Actuator Cable With Valve Connector
• Manufacturer: Lutze
• Jacket Color: Black
• Type of function: Valve suppressor
• Protection device: Suppressor diode + LED
• Rated voltage U N: AC/DC 24 V
• Current Consumption: 4 mA
• Cut-off peak: ? 52 V
• Rated frequency f N: 50 Hz / 60 Hz
• Holding Capacity: 100 VA
• Type of connecting lead: 3??0.5 mm 2 PUR
• Cable length: 5 m
• Connecting lead ??: 5.0 ?? 0.15 mm
• Design: A (18 mm)
• Status indication: LED yellow
• Amperage range: ? 4 A
• Contact resistance: < 10 m?
• Insulation resistance: > 100 M?
• Pole number: 3
• Conductor color: brown, blue, yellow-green
• Housing material: TPU
• Color of the housing: transparent
• Contact material: CuSn silver-plated
• Mechanical service life: >100 insertion cycles
• Degree of polution: 3
• Protection class: IP67
• Mounting: Breakaway torque 0.4 Nm
• Temperature range connector: -25???C??90???C
• Temperature range fixed: -40 ???C ?? +80 ???C
• Temperature range moving: -20 ???C ?? +80 ???C
• Operation temperature range: -25???C??80???C
• Storage temperature range: -40???C??90???C
• Standards: EN 175301-803 ISO 4400
• Model: 709706
• MPN: LS-A-9706
