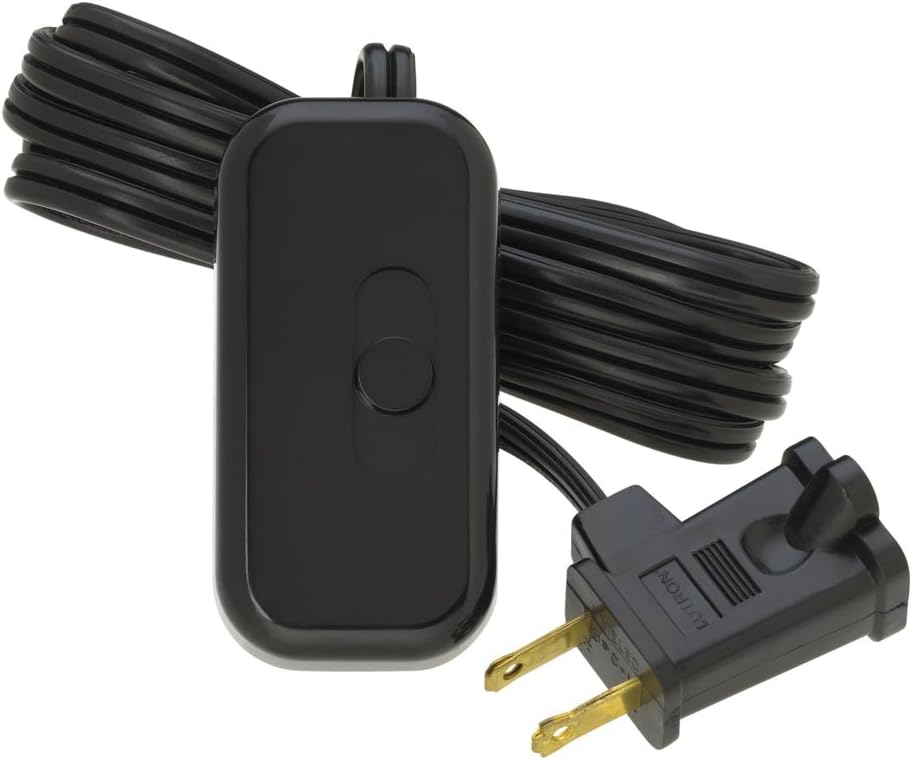

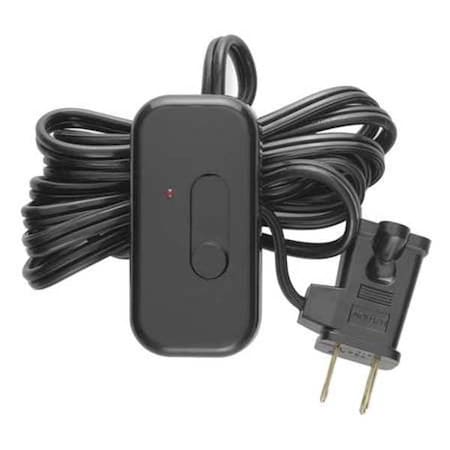

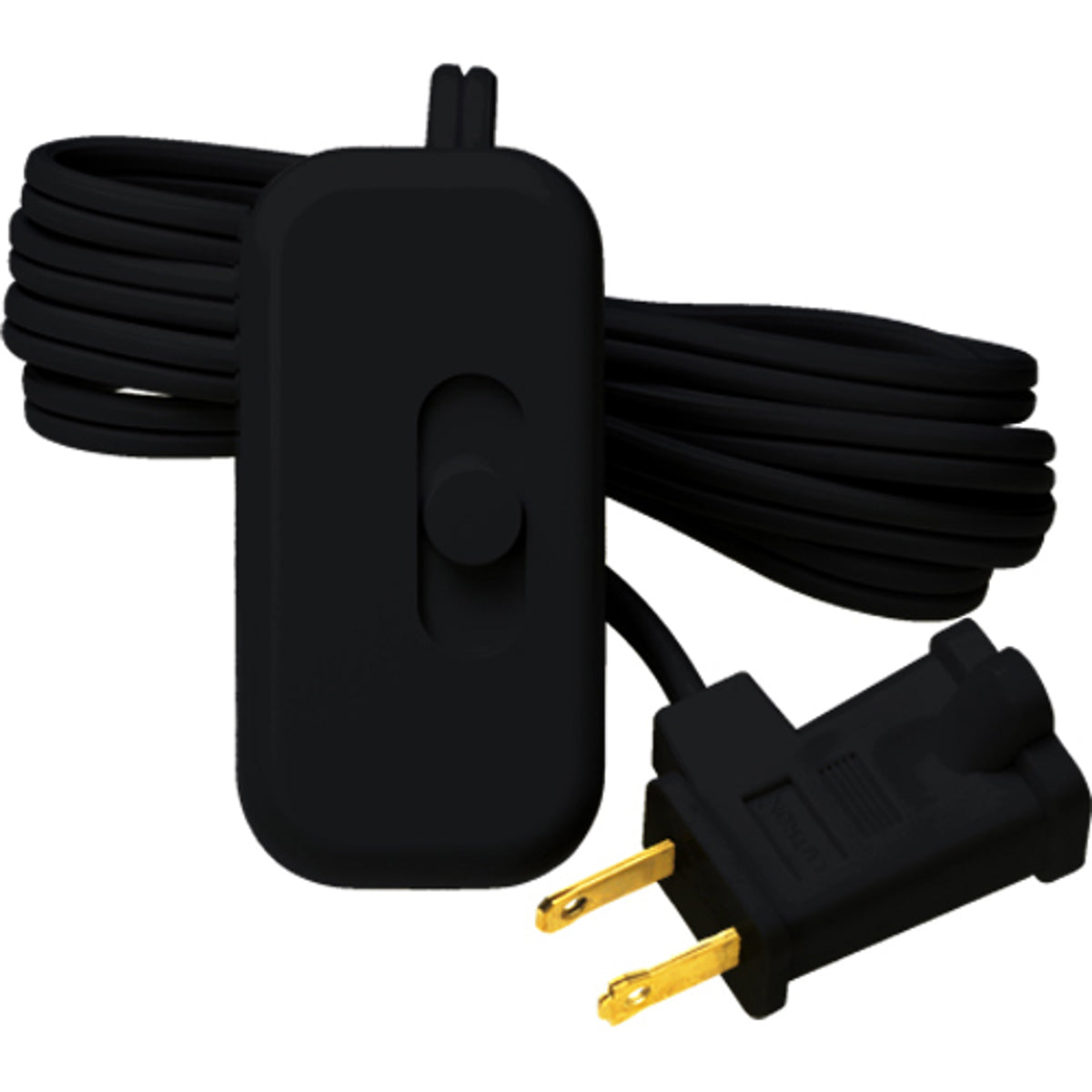

Lutron TTCL-100H-BL Credenza LED+ Plug-In Lamp Dimmer Switch 100-watt Single-pole

Product Description

The Lutron TTCL-100H-BL Credenza LED+ Plug-In Lamp Dimmer Switch is designed for dimmable LED, incandescent, and halogen lamps. Operating at 120 Volts, it supports up to 100 watts for LED/CFL and 250 watts for incandescent/halogen loads. This plug-in dimmer features a slide actuator for ON-OFF-ON operation, allowing users to brighten or dim lights. It requires no wiring or tools for installation, making it suitable for table or floor lamps.

• LED+ compatibility for dimmable LED, incandescent, and halogen lamps.
• Supports 100W LED/CFL or 250W incandescent/halogen loads.
• Convenient plug-in design with slide control for easy dimming.

Product Highlights

Plug-in lamp dimmer with slide control for LED, incandescent, and halogen lamps, offering 100W LED/CFL or 250W incandescent/halogen capacity.

Product Information

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: TTCL-100H-BL
• Country of Origin: China

Technical Specifications

• Brand: Lutron
• Manufacturer: Lutron Electronics
• Model Number: TTCL-100H-BL
• Part Number: TTCL-100H-BL
• Sub Brand: Credenza
• Product Type: Plug-in lamp dimmer, single-pole
• Color: Black
• Shape: Rectangular
• Actuator Type: Slide
• Mounting Type: Plug In
• Connector Type: Plug In
• Input Voltage: 120 Volts
• Frequency: 50 to 60 HZ
• Max Wattage LED/CFL: 100 W
• Max Wattage Incandescent/Halogen: 250 W
• Current Rating: 0.83 Amps
• Operation Mode: ON-OFF-ON
• Contact Material: Metal
• Material: Plastic/Metal
• Batteries Included: No
• Batteries Required: No
• Number of Positions: 3
• Connectivity Protocol: X-10
• Operating Temperature Min: 32 Degrees Fahrenheit
• Operating Temperature Max: 104 Degrees Fahrenheit
• International Protection Rating: IP00
• Poles: 1
• Application: Lighting Control
• Enclosure: Plastic
• Insulation: Plastic
• Certifications: UL, cUL
• UPC: 027557003476
• ASIN: B004DZONXI
• Compatible Lamp Types: CFL, LED, Halogen, Incandescent
• Gangs: 1
• Country of Origin: China
• Finish: Gloss Finish
