Product Description

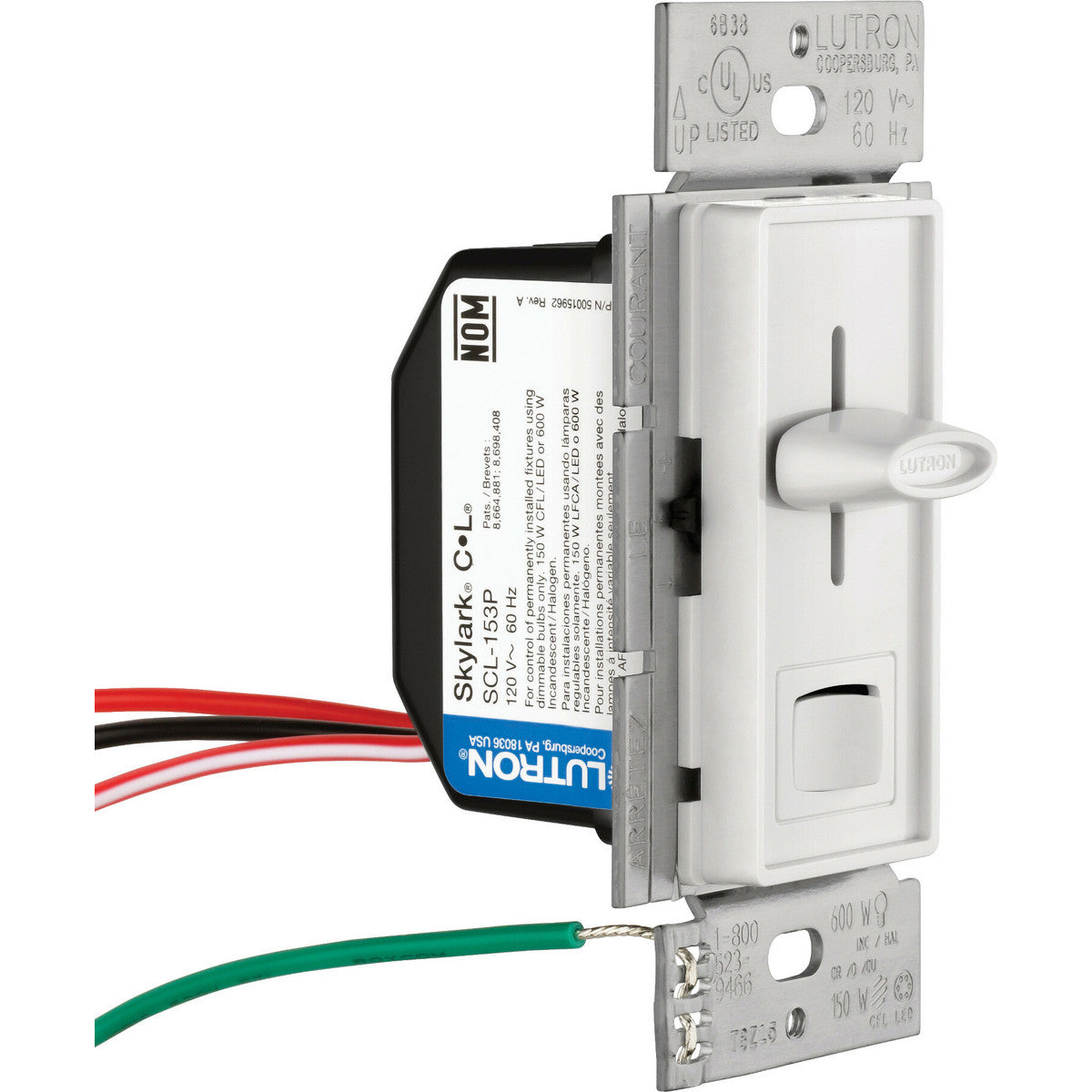

The Lutron SCL-153P-BR dimmer is designed for dimmable LED, CFL, halogen, and incandescent bulbs. It features an on/off rocker switch with a linear-slide dimmer suitable for a standard designer wallplate opening. The LED+ technology allows for superior dimming of various bulb types. Pack of 1 Switch.
- Controls 150 W LED/CFL or 600 W incandescent/halogen loads.

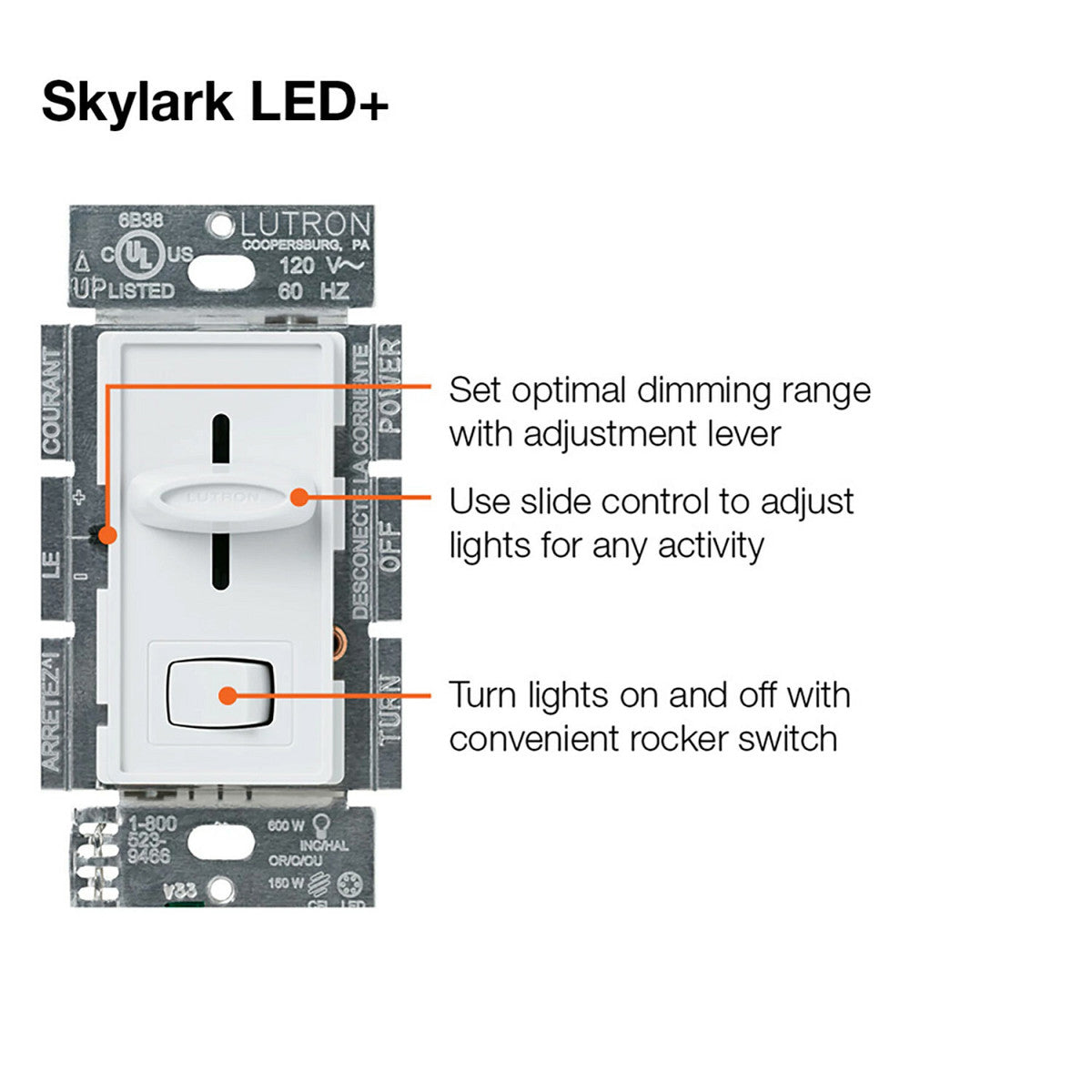

- Rocker switch returns light to light level indicated by slider.
- Slide up to brighten, down to dim.
Product Highlights
This dimmer provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents. It is suitable for single-pole or 3-way applications.
Product Information
Standard Information
-
Brand: LUTRON
-
Manufacturer Part Number: SCL-153P-BR
-
Country of Origin: CN
Technical Specifications
-
Type: Dimmer
-

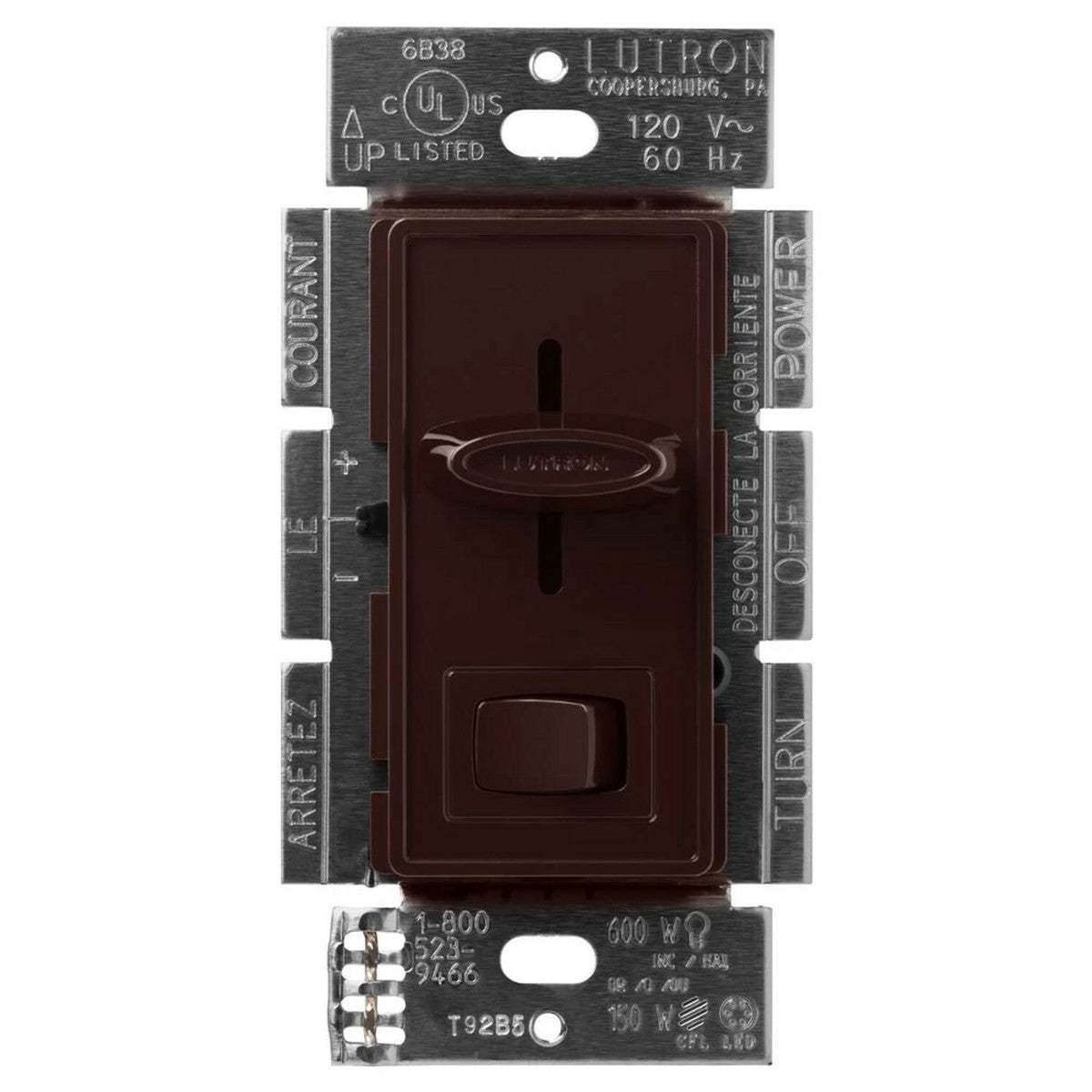

Color: Brown
-
Width: 2.94 Inches
-
Height: 4.69 Inches
-
Wattage: 150 to 600 Watts
-
Dimmable: Dimmable
-
Standard: UL, CSA, NOM
-

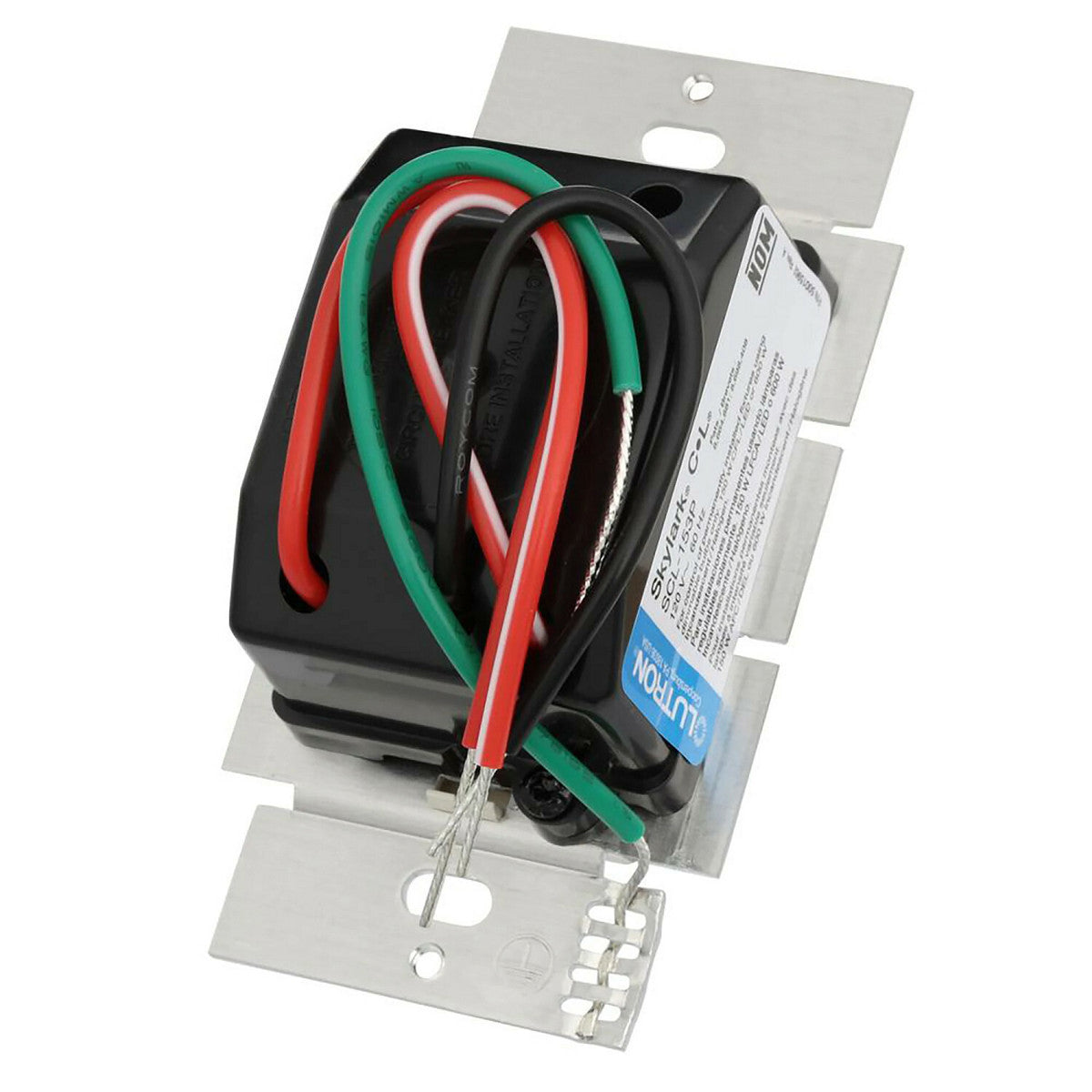

Connection: Wire leads
-
Voltage Rating: 120 VAC
-
Number Of Poles: Single-Pole
-
Frequency Rating: 60 Hertz
-
Sub Brand: Skylark
-
Actuator: Rocker/Slide
-
Application: Lighting Control
-
Enclosure: Plastic
-
Insulation: Plastic
-
Material: Plastic/Metal
-
Mounting: Wall
-
Special Features: Controls 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Rocker switch returns light to light level indicated by slider. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
-
UPC: 784276008976
-
GTIN: 00784276008976
-
Item Type: Dimmer with on/off switch, 3-way/single-pole
-
Size: 4.69 x 2.94
-
Environmental Conditions: Indoor use only
-
Operating Temperature: 32 to 104 F
-
Operator Type: Preset Slide On/Off Rocker Switch
-
Operation Type: 1-Pole/3-Way
-
Load Type: Incandescent/Halogen, Dimmable CFL, LED
-
Load Rating: 150 W (CFL/LED), 600 W (Incandescent/Halogen)
-
Wall Plate Type: Standard Designer (Not Included)
-
Finish: Gloss
-
Maximum Load Capacity: Incandescent/Halogen: 600 Watt, CFL/LED: 150 Watt
-
Item Name: Preset Dimmer
-

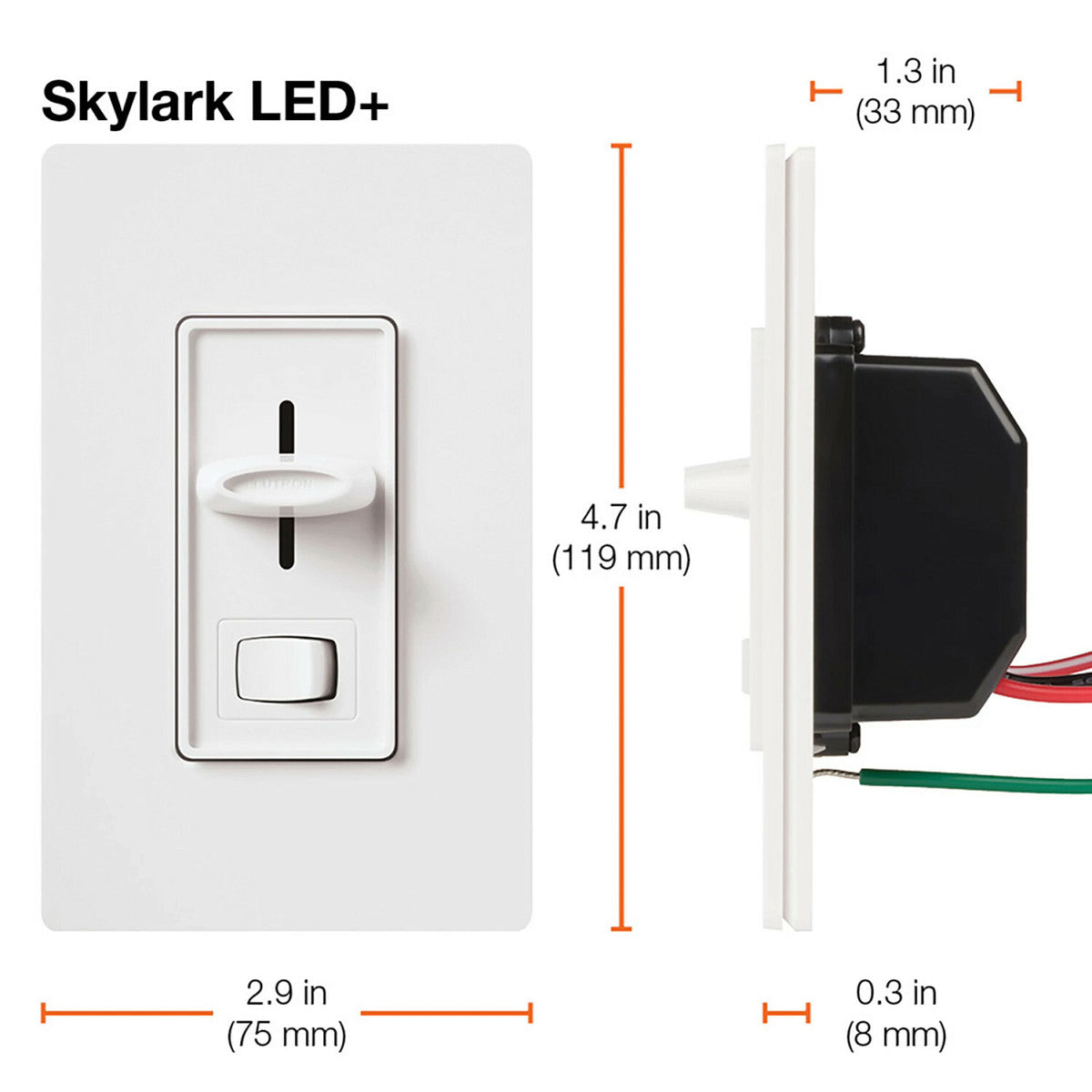

Dimensions: 4.69 Inch Length x 2.94 Inch Width x 0.3 Inch Depth
-
Temperature Rating: 32 to 104 deg F (0 to 40 deg C)
-
Standards: UL 1472 Listed, CSA C22.2 184.1 Certified, NOM Certified
-
Manufacturer: Lutron
-
Rating: UL, cUL, CSA
-
Input Voltage: 120 AC
-
Power (Watts): 150
-
Application Type: Single-Pole or 3-Way
-
Bulb Compatibility: Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens
-
Coordinating Wallplates: Single Gang Wallplate CW-1-XX (Gloss); 2-Gang Wallplate CW-2-XX (Gloss)
