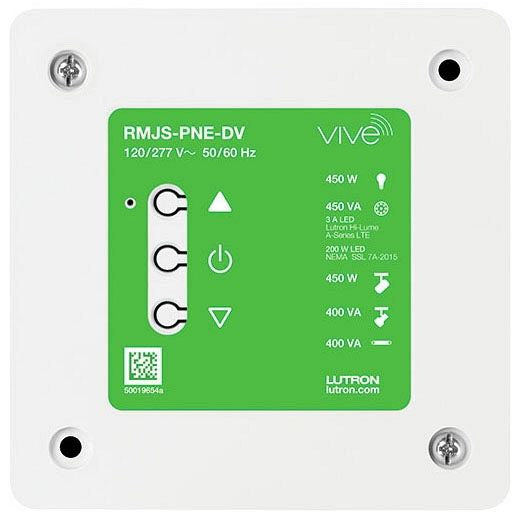

Lutron RMJS-PNE-DV RMJS-PNE Phase Select Dimming Module 120/277 V

Product Description

The Lutron RMJS-PNE-DV is a Phase Select Dimming Module designed for efficient lighting control. Operating at voltages of 120 to 277, it adjusts lighting intensity based on wireless commands from Pico remote controls and sensors. Its compact dimensions of four point five three inches by four point five three inches by zero point four six inches make it suitable for various installation locations. The device is versatile, easily fitting into a standard four by four junction box, and allows for horizontal or vertical mounting.

• Operates in reverse phase mode by default; can switch to forward phase mode.
• Receives inputs from multiple wireless sources including Pico remotes and occupancy sensors.
• Diagnostic LEDs provide clear operational feedback.

Product Highlights

This dimming module is ideal for both home and commercial lighting systems, ensuring flexibility and control over light levels in any environment.

Product Information

Standard Information

• Application: Lighting Control
• Voltage Rating: 120/277 V

Technical Specifications

• Dimensions: 4.53 inches H x 4.53 inches W x 0.46 inches D
• Temperature Rating: 0 to 40 °C
• Humidity: 0 to 90% Non-Condensing
• Standards/Approvals: cULus 508 Listed
• Series: RMJS-PNE
• Power Failure Memory: Retains settings during outages
• Protection Features: Integral protection for temporary overcurrent and over-voltage
