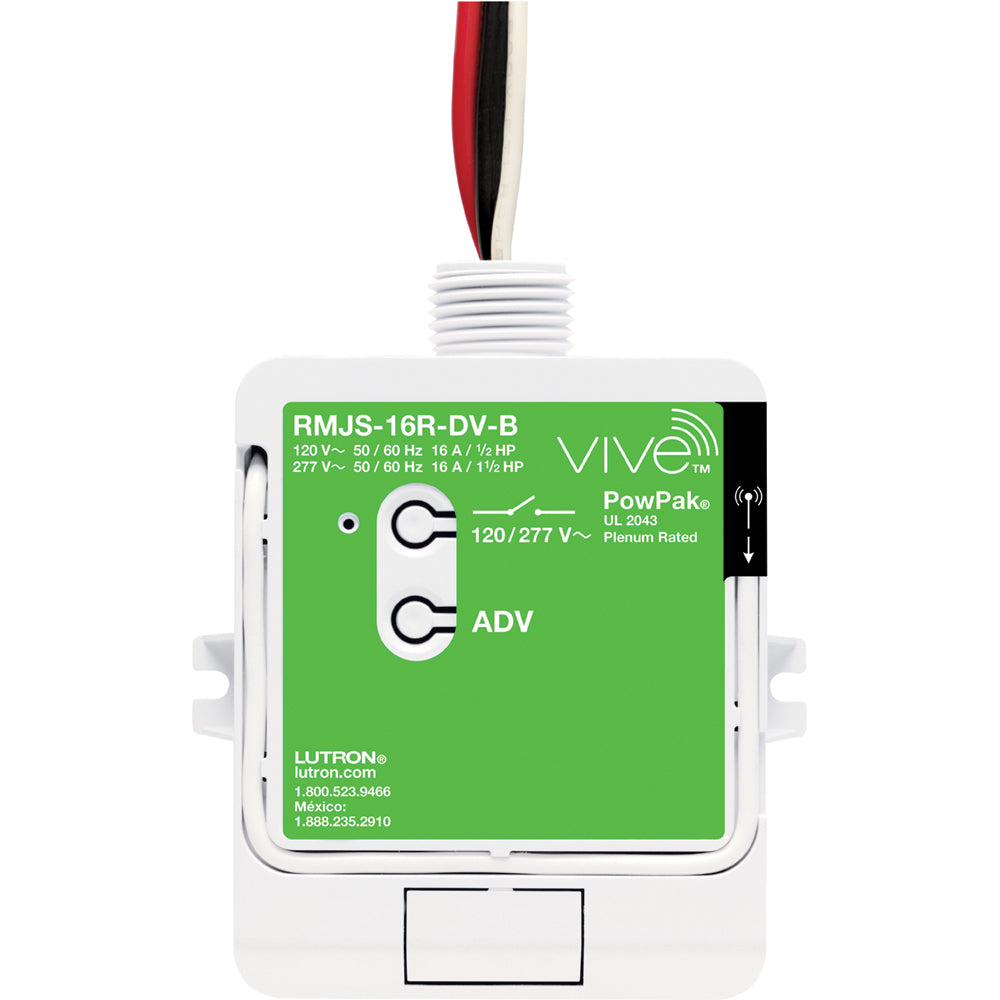

Lutron RMJS-16R-DV-B Vive PowPak Relay Module with Softswitch

Product Description

The Lutron RMJS-16R-DV-B is a Vive PowPak Relay Module designed for efficient energy management. This relay module supports voltage ratings from one hundred twenty to two hundred seventy-seven volts and can handle a contact load of up to sixteen amps. It is suitable for use in conjunction with Lutron Vive systems for smart lighting and control applications.

• Supports 120 to 277 VAC operation
• Includes a softswitch functionality
• Designed for junction box mounting

Product Highlights

This module provides flexibility in controlling lighting and is ideal for both commercial and residential installations.

Product Information

Standard Information

• Brand Name: Lutron Electronics
• Part Number: RMJS-16R-DV-B

Technical Specifications

• Amperage Rating: 16 A
• Voltage Rating: 120/277 VAC
• Temperature Rating: 0 to 40 degrees C
• Dimensions: 3.94 x 2.82 in
• Material: Plastic
• Mounting Type: Junction Box
• Connection Type: Wire Lead
• Standards/Approvals: UL, FCC, CSA, IC
