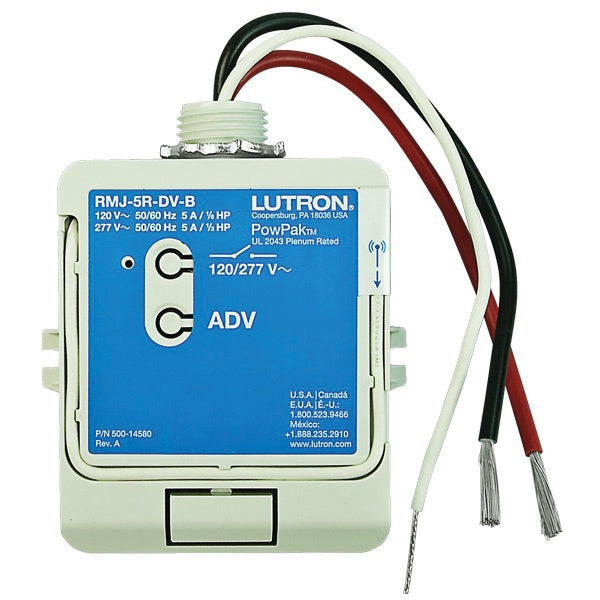

Lutron RMJ-5R-DV-B Relay Module With Soft Switch 120/277-Volt AC Energi TriPak PowPak

Product Description

The Lutron RMJ-5R-DV-B Relay Module is designed for effective load control, suitable for both residential and commercial applications. It operates on 120/277-Volt AC and is ideal for controlling various lighting loads. This module is compatible with multiple conductor sizes and integrates seamlessly with building management systems.

• Voltage rated for 120/277-Volt AC
• Load rating of 5-Amp, 1/6 Hp at 120 Volt, 1/3 Hp at 277 Volt
• Accommodates 20 - 16 AWG stranded and solid conductors

Product Highlights

The RMJ-5R-DV-B Relay Module incorporates Lutron's patented technology that helps prevent arcing at relay contacts, ensuring durability and longevity. The device features a LED status indicator for visual feedback on the load status, providing ease of use for technicians.

Product Information

Standard Information

• Brand: Lutron
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: RMJ-5R-DV-B
• Dimensions: 2.82 inches Width x 1.82 inches Depth x 3.94 inches Height
• Temperature Rating: 0 to 55 degrees Celsius
• Conductor Size: 20-16 AWG Solid/Stranded
• Load Rating: 5 Amp, 1/6 Hp at 120 Volt, 1/3 Hp at 277 Volt
• Frequency Rating: 50/60 Hz
• Environmental Conditions: 0 - 90% Non-Condensing Humidity
• Standards: UL 2043 Plenum Listed, CSA Certified, NEC 2014 300.22, FCC Compliant
