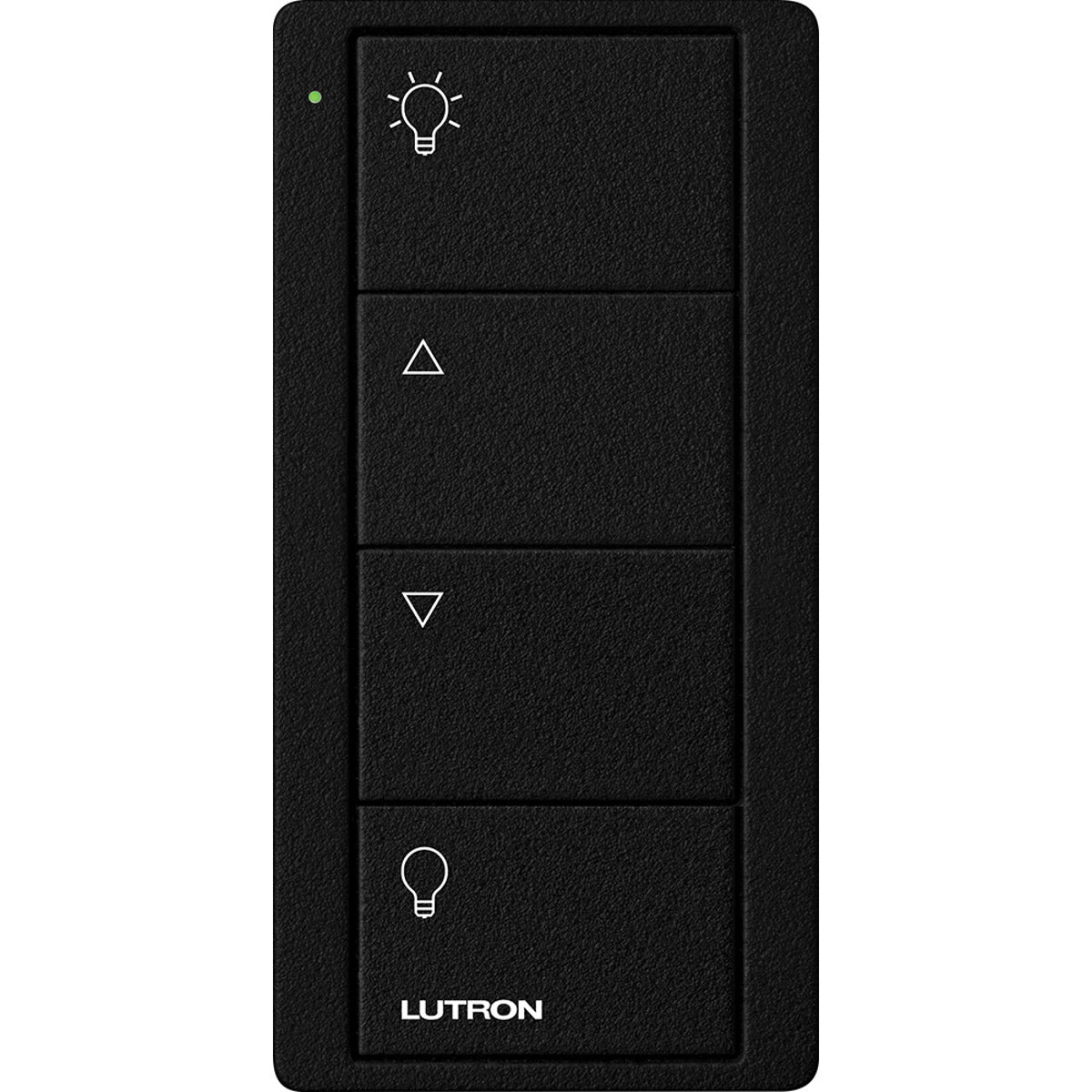

Lutron PJ2-4B-TMN-L01 Pico 4-Button Zone Light Control 3 V DC (1.3 in x 2.6 in x 0.31 in) PJ2-4B-TMN-L01

Product Description

Lutron PJ2-4B-TMN-L01 is a Pico 4-button wireless zone light control that provides On, Raise, Lower and Off functions for compatible Lutron lighting systems. The battery-powered remote uses one CR2032 (included) at 3 V DC with an approximate 10-year battery life and operates on 434 MHz (431�437 MHz). It communicates via Lutron Clear Connect RF with up to 30 ft range through walls (60 ft line-of-sight) and can be handheld or mounted.

• Battery powered (1 _ CR2032 included), 3 V DC input, typical 10-year battery life
• Wireless RF operation: 434 MHz (431�437 MHz); up to 30 ft through walls, 60 ft line-of-sight
• Four-button zone control (On, Raise, Lower, Off); compatible with Caseta, RadioRA2, Vive, HomeWorks and other Lutron systems; handheld or mountable

Product Highlights

Pico 4-button wireless remote; 3 V CR2032 battery; 434 MHz RF; ~30 ft through-wall range; compatible with multiple Lutron systems

Product Information

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: PJ2-4B-TMN-L01
• Country of Origin: United States

Technical Specifications

• Manufacturer: Lutron Electronics
• Brand: Lutron
• Manufacturer Part Number: PJ2-4B-TMN-L01
• Model: PJ2-4B
• Type: Wireless remote control
• Application: Lighting Control
• Input Voltage: 3 V DC
• Battery: 1 _ CR2032 (included)
• Battery Life: Approx. 10 years (typical)
• Buttons: 4 (On, Raise, Lower, Off)
• Radio Frequency: 434 MHz (431�437 MHz)
• Range: Up to 30 ft through walls; up to 60 ft line-of-sight
• Dimensions (W x H x D): 1.3 in x 2.6 in x 0.31 in
• Material: Plastic/Metal
• Remote Type: Handheld (wall mount / table top / car visor options)
• Operating Temperature: 32 to 140 �F
• Standards / Approvals: FCC, IC, COFETEL, SUTEL, ANATEL, UL (Canada and US)
• UPC: 784276240840
• Made in USA: Yes
• Catalog Description: Pico wireless control, 4-button, 434 MHz, zone control of lights
