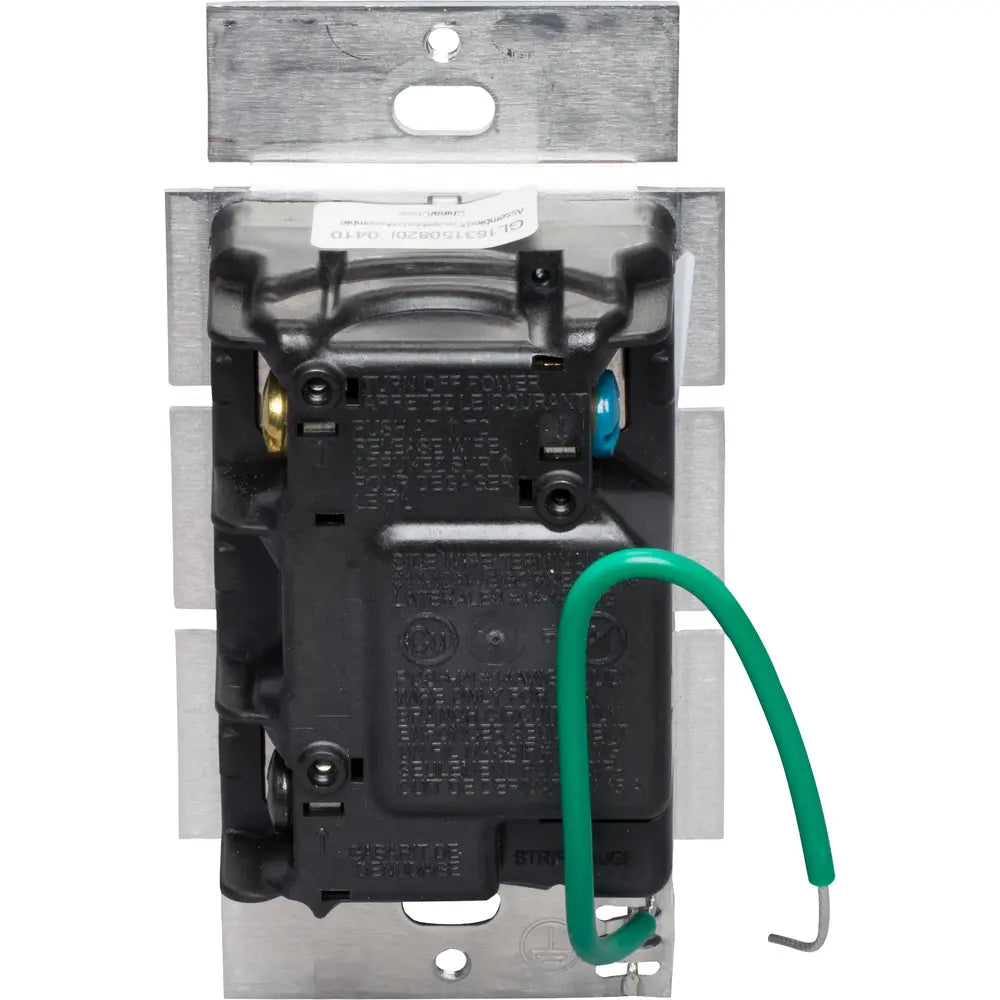

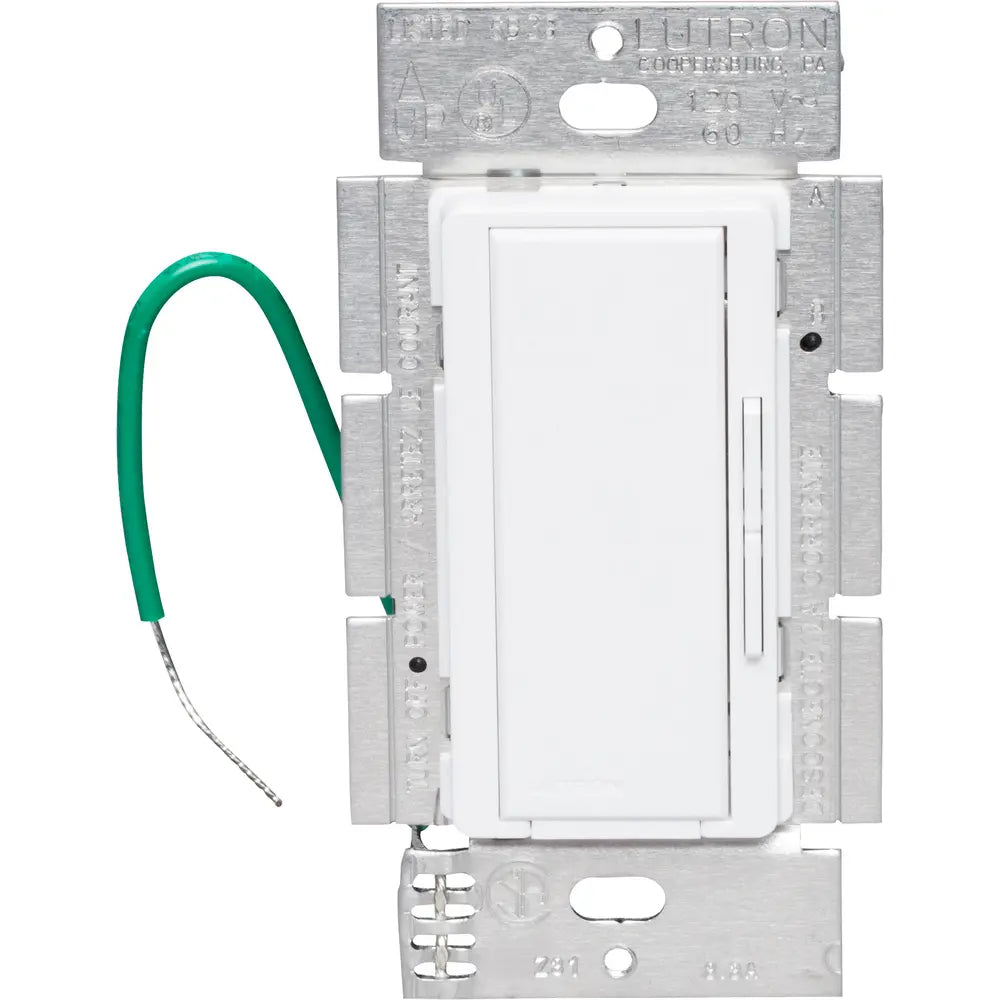

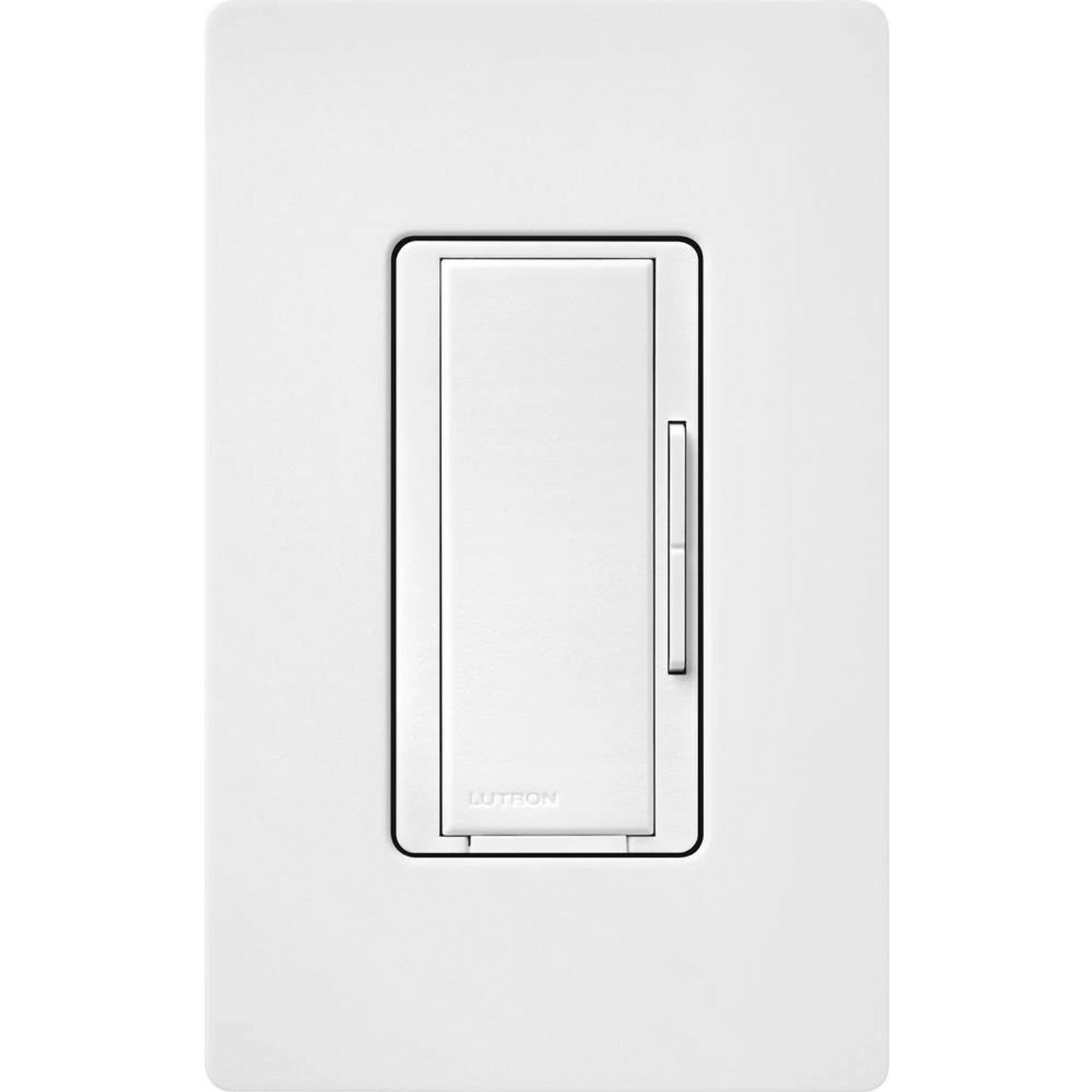

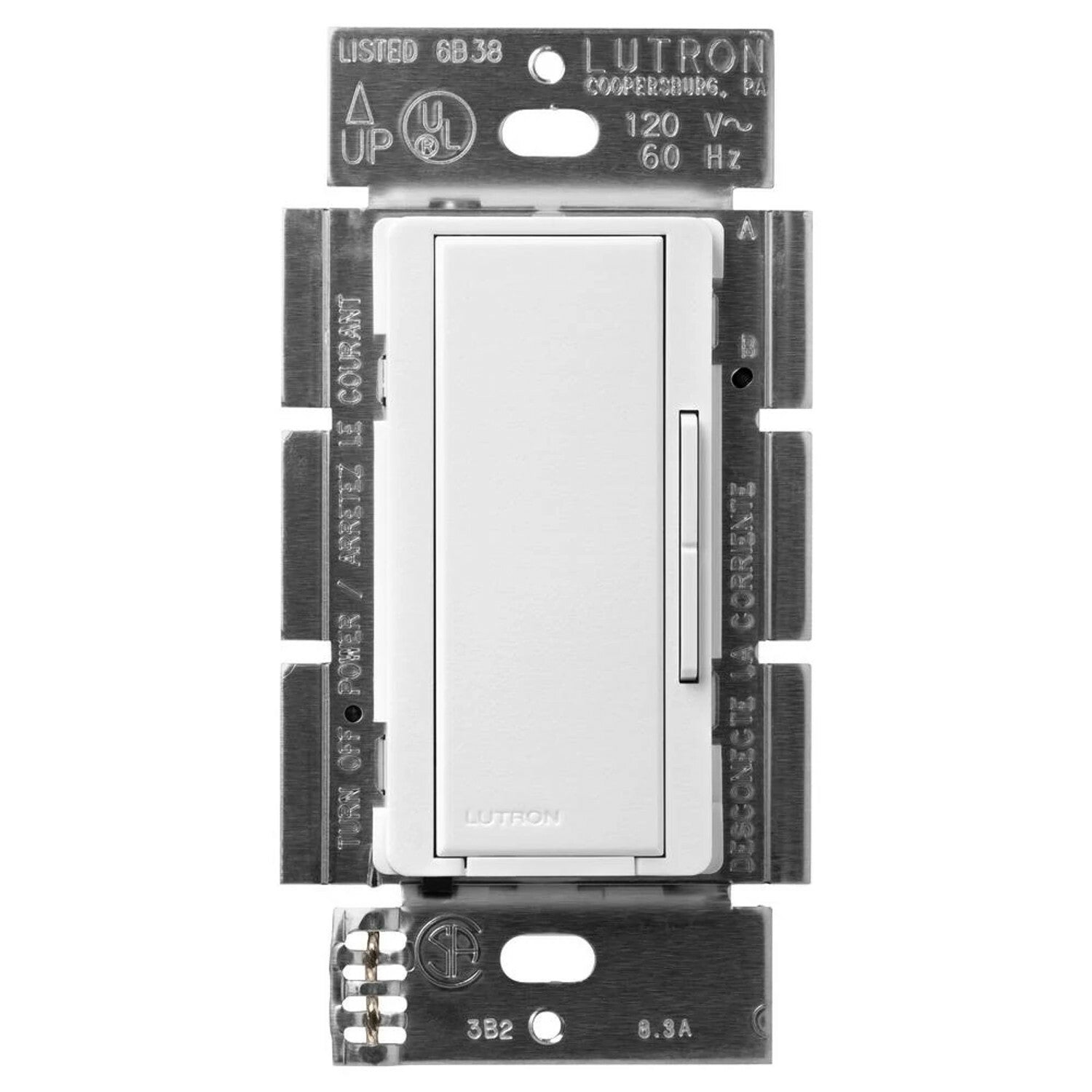

Lutron MSC-AD-SW Maestro Companion Dimmer for Multi-Location Use 120V Pack of 1 Unit

Product Description

The LUTRON MSC-AD-SW Maestro Companion Dimmer is designed for multi-location lighting control, functioning as an accessory to Lutron Maestro dimmer switches. This device enables control of a single light from up to 10 locations, syncing with the main dimmer's programming. Users can tap once for a preset light level, tap twice for full brightness, or press and hold for a delayed fade-to-off. Raise/lower buttons allow dimming and brightening from any location. It operates at 120 VAC.

• For use with Lutron Maestro Multi-Location dimmer switches only.
• Companion device to Lutron Maestro dimmer switches, allowing control of a single light from up to 10 locations.
• Syncs with the programming of the main Maestro dimmer switch.

Product Highlights

Enables multi-location dimming and light control with preset levels and fade-to-off functionality.

Product Information

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: MSC-AD-SW
• Country of Origin: Mexico

Technical Specifications

• Dimmer Type: Incandescent Dimmer
• Dimmable: Yes

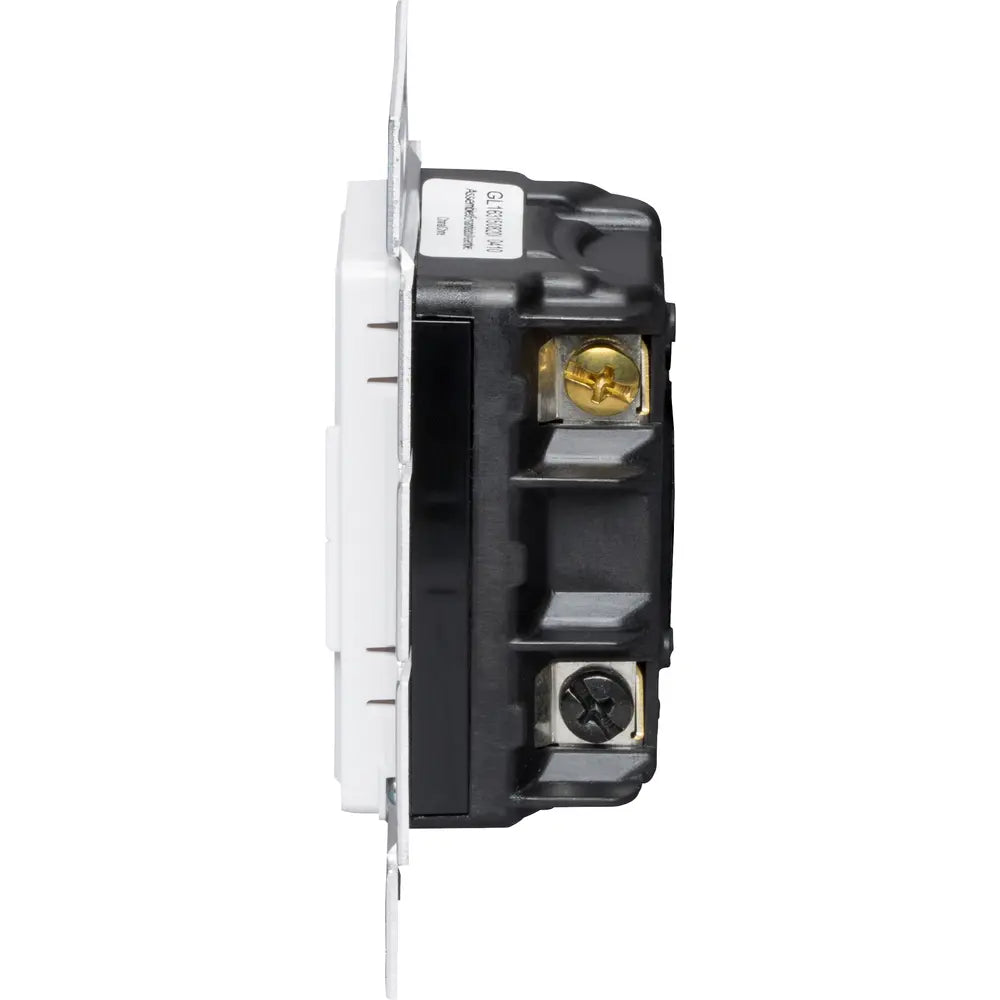

• Connection Type: Screw terminal
• Input Voltage: 120 VAC
• Number of Poles: Single-Pole
• Frequency: 60 Hertz
• Manufacturer: Lutron Electronics
• Sub Brand: Maestro
• Application: Lighting Control
• Enclosure Material: Plastic
• Material: Plastic/Metal
• Mounting Type: Wall
• Certifications: UL, CSA, NOM, FCC, IC, ISO 9001, ENERGY STAR
• Item Type: Companion dimmer
• Operating Temperature: 32 to 104 F
• Current Rating: 1 Amps
• Circuit Type: 3-way
• Actuator Type: Push Button
• Control Type: remote, manual
• Compatible Devices: Lutron Maestro Smart Dimmer (MAW-600-WH), Lutron Satin Colors (MSC-600M-SW)
• IP Rating: IP00
