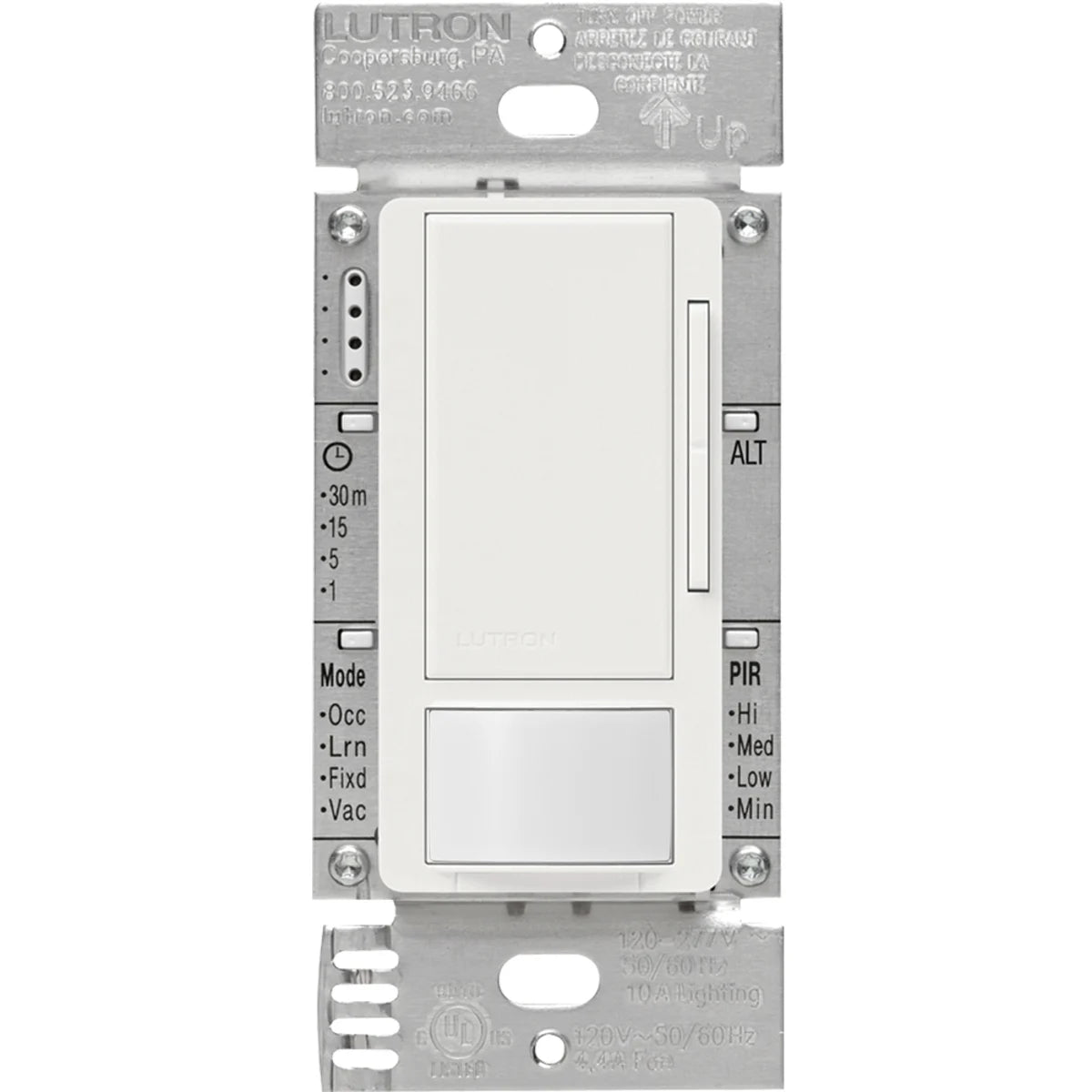

Lutron MS-Z101-V-WH Maestro 0-10V Dimmer Sensor

Product Description

Lutron offers the MS-Z101-V-WH Maestro 0-10V Dimmer Sensor designed for wall mounting. This sensor integrates advanced occupancy control technology with standard dimming functionality. It uses passive infrared sensing to automatically control lighting based on occupancy. The sensor switches up to 8 Amperes with a voltage range between one hundred twenty to two hundred seventy-seven volts.

• Coverage area of nine hundred square feet for major motion and four hundred square feet for minor motion.
• Adjustable timeout settings from one to thirty minutes to suit different needs.
• Compatible with standard 0-10V electronic fluorescent ballasts or LED drivers.

Product Highlights

The MS-Z101-V-WH features a simple programming interface, allowing customization of sensor functions like timeout duration and sensitivity. It is suitable for use in various applications, including offices, classrooms, and commercial environments.

Product Information

Standard Information

• Manufacturer: Lutron Electronics
• Catalog Number: MS-Z101-V-WH

Technical Specifications

• Max Load: 8 A
• Voltage Range: 120 to 277 VAC
• Sensor Type: Passive Infrared
• Major Motion Coverage: 900 sq-ft
• Minor Motion Coverage: 400 sq-ft
• Field of View: 180 degrees
• Mounting Type: Wall
