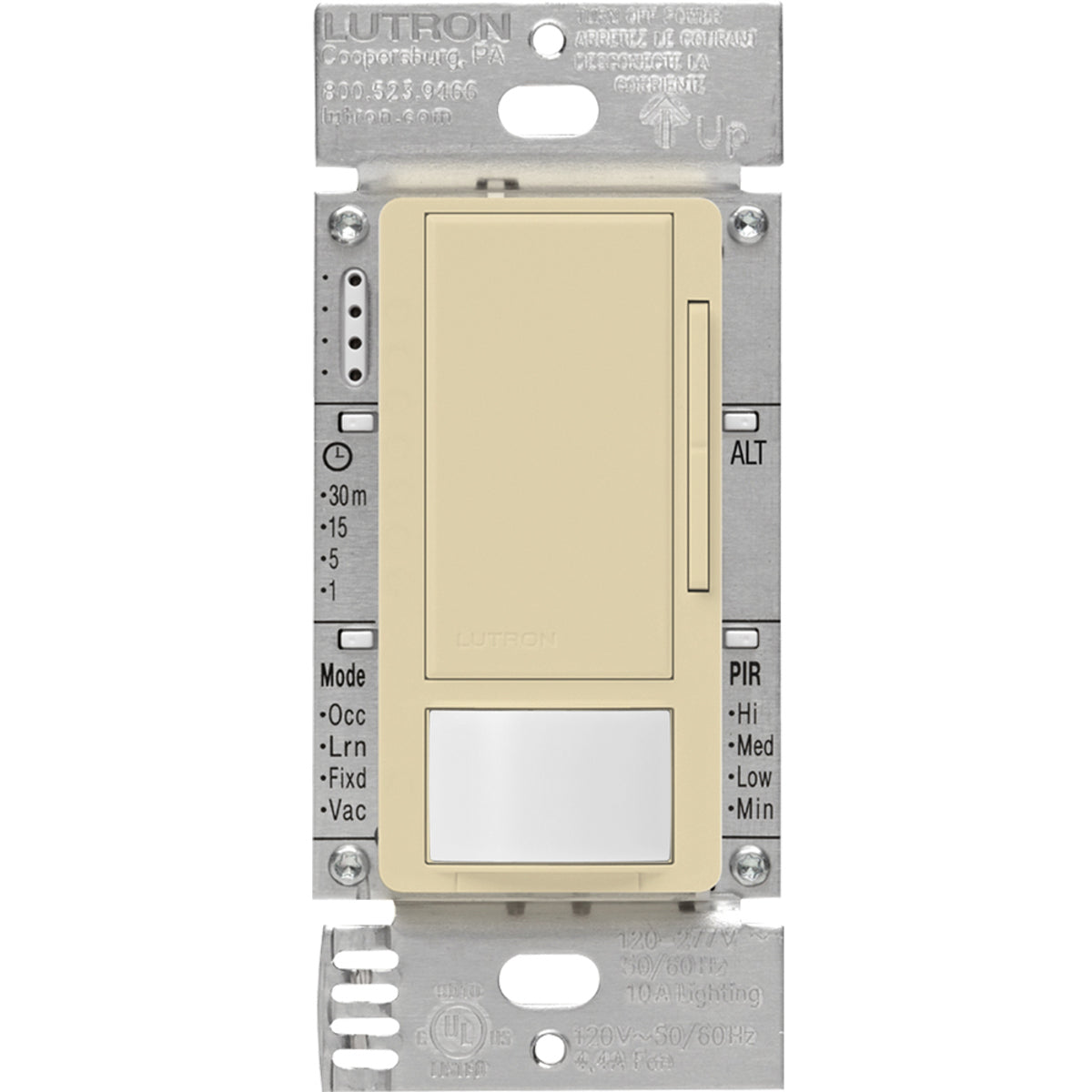

Lutron MS-Z101-IV Maestro 0-10V Dimmer Occupancy/Vacancy Sensor 120 to 277V

Product Description

The Lutron Maestro 0-10V dimmer occupancy/vacancy sensor, model MS-Z101-IV, operates on a voltage range of 120 to 277 volts. This device combines a dimmer with advanced motion sensing technology to control lighting based on occupancy. It is designed to work with both fluorescent ballasts and LED drivers, providing up to eight amperes of capacity.

• Detects occupancy using passive infrared (PIR) sensors
• Features a sensing range covering major motion up to nine hundred square feet and minor motion up to four hundred square feet
• Allows customization with adjustable dim levels and time delays

Product Highlights

This product uses Lutron's XCT technology for precise motion detection, ensuring lights activate based on real-time occupancy.

Product Information

Standard Information

• Brand: Lutron
• Manufacturer: Lutron Electronics

Technical Specifications

• Catalog Number: MS-Z101-IV
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 8 A
• Mounting Type: Wall
• Enclosure: Plastic
• Sensor Type: Passive Infrared
• Coverage Area: 900 ft² major motion / 400 ft² minor motion
• Temperature Rating: 32 to 104 F
• Time Delay: 1/5/15/30 min adjustable
• Standards: UL, cUL, Title 20/24 certified
