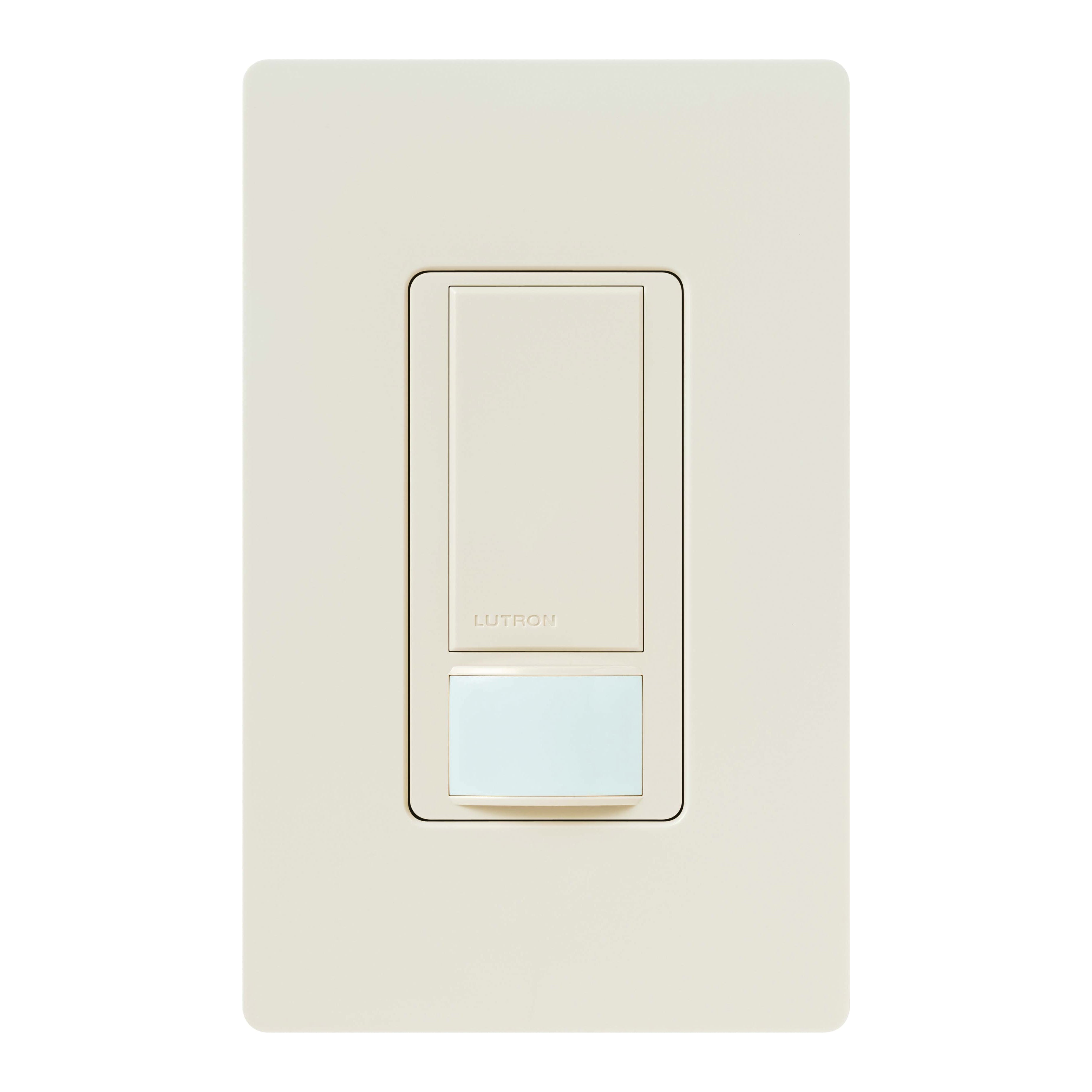

Lutron MS-OPS2-LA Wall Mount Occupancy Sensor Switch 120 VAC Passive Infrared Sensor

Product Description

The Lutron MS-OPS2-LA is a wall mount occupancy sensor switch that operates at 120 VAC. This product integrates a passive infrared sensor that detects heat from individuals in the space. It offers up to nine hundred square feet of major motion coverage and four hundred square feet of minor motion coverage, making it suitable for various applications.

• Detects occupancy using passive infrared sensor technology.
• Time delay options and sensitivity adjustments.
• Appropriate for multiple types of lighting systems.

Product Highlights

This occupancy sensing switch is part of Lutron's Maestro line, designed to enhance energy efficiency and convenience in lighting control.

Product Information

Standard Information

• Manufacturer: Lutron Electronics
• Manufacturer Part Number: MS-OPS2-LA

Technical Specifications

• Amperage Rating: 2 A
• Voltage Rating: 120 VAC
• Dimensions: 4-11/16 inches H x 2-15/16 inches W x 1-1/8 inches D
• Coverage Area: 400 sq-ft Minor, 900 sq-ft Major
• Viewing Angle: 180 degrees
• Temperature Rating: 32 to 104 degrees F
• Time Delay: 10 seconds
• Response Frequency: 50/60 Hz
