Product Description

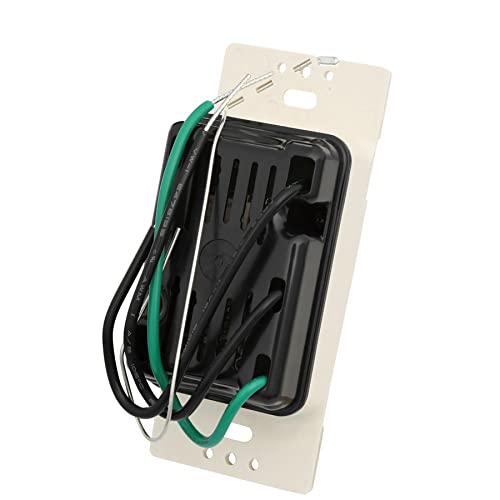

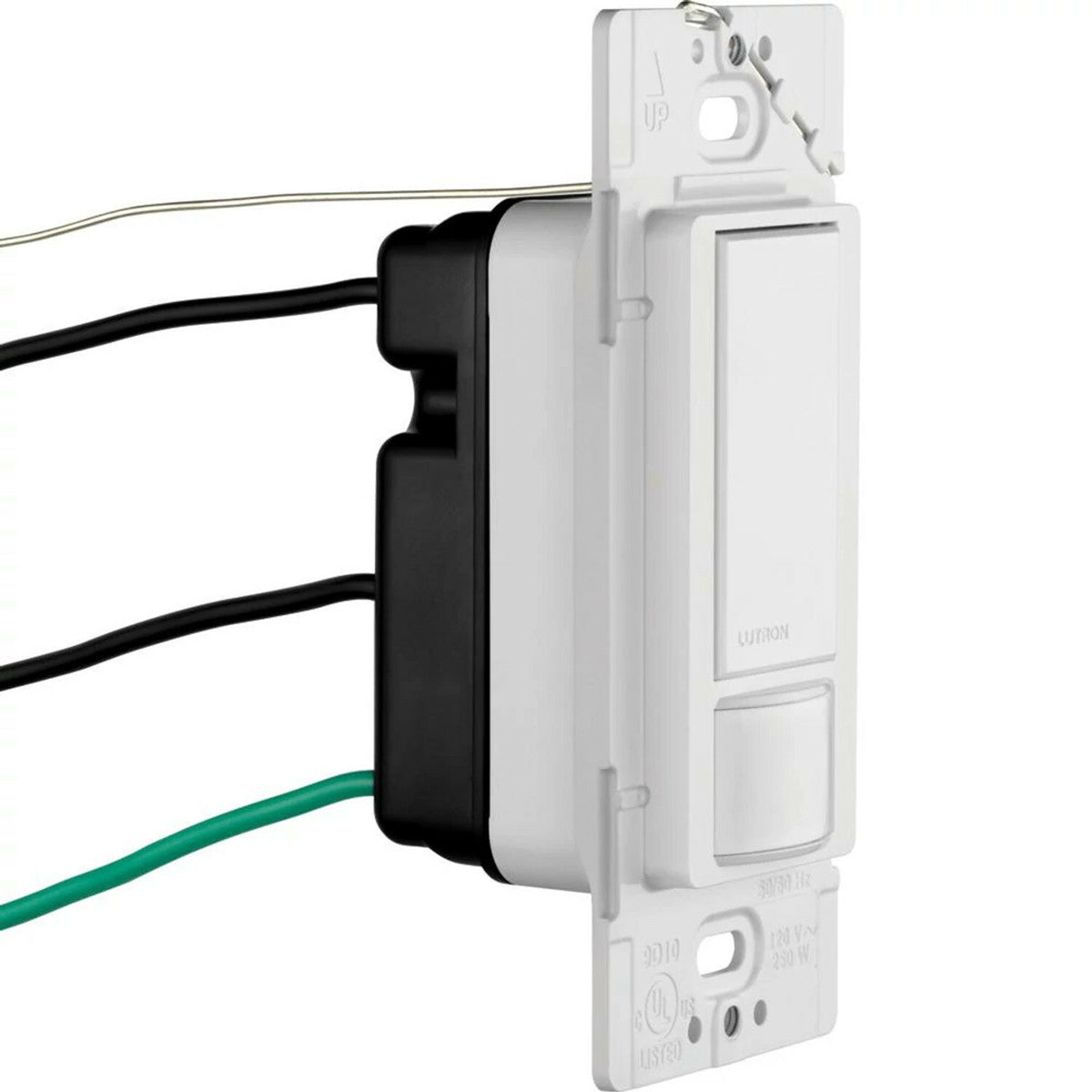

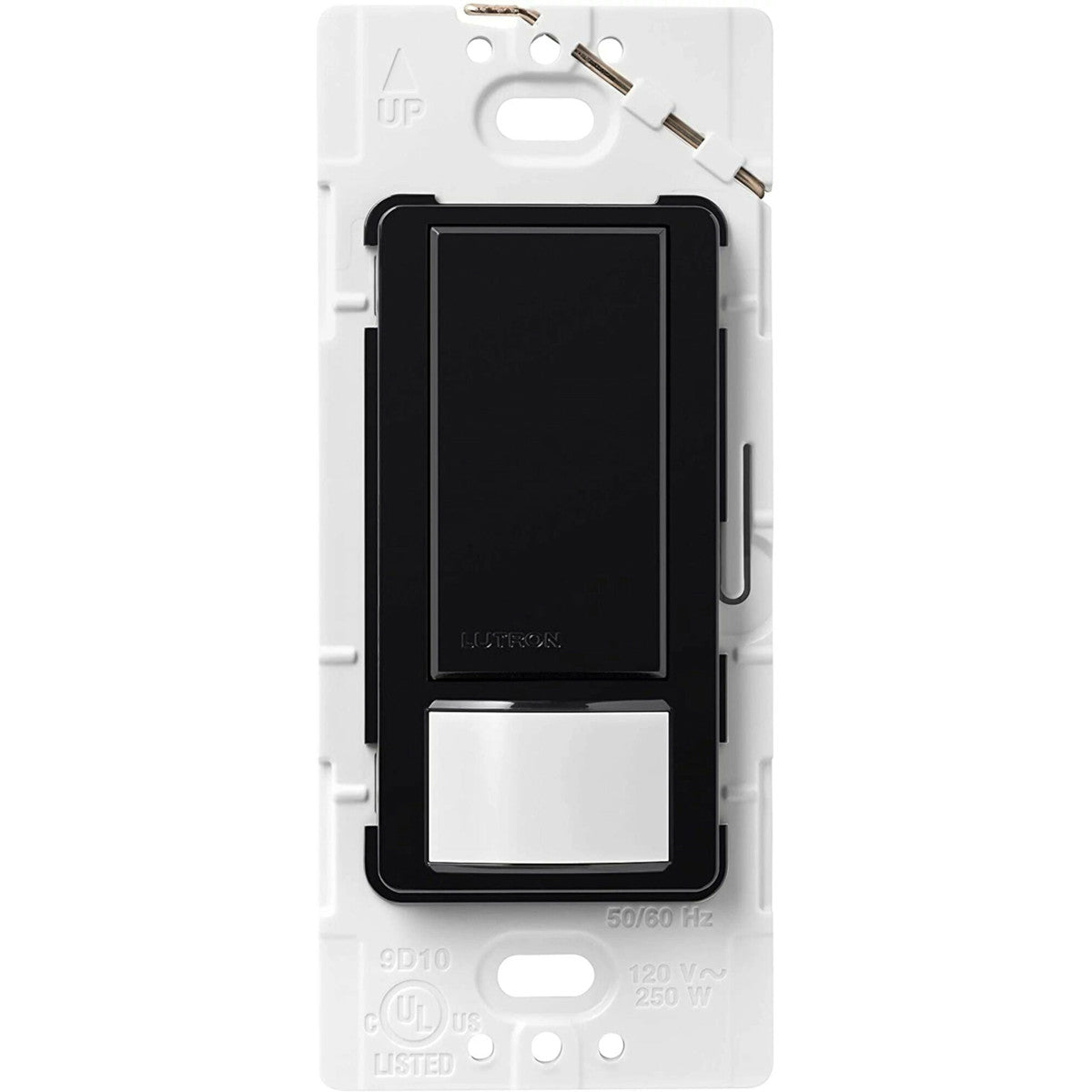

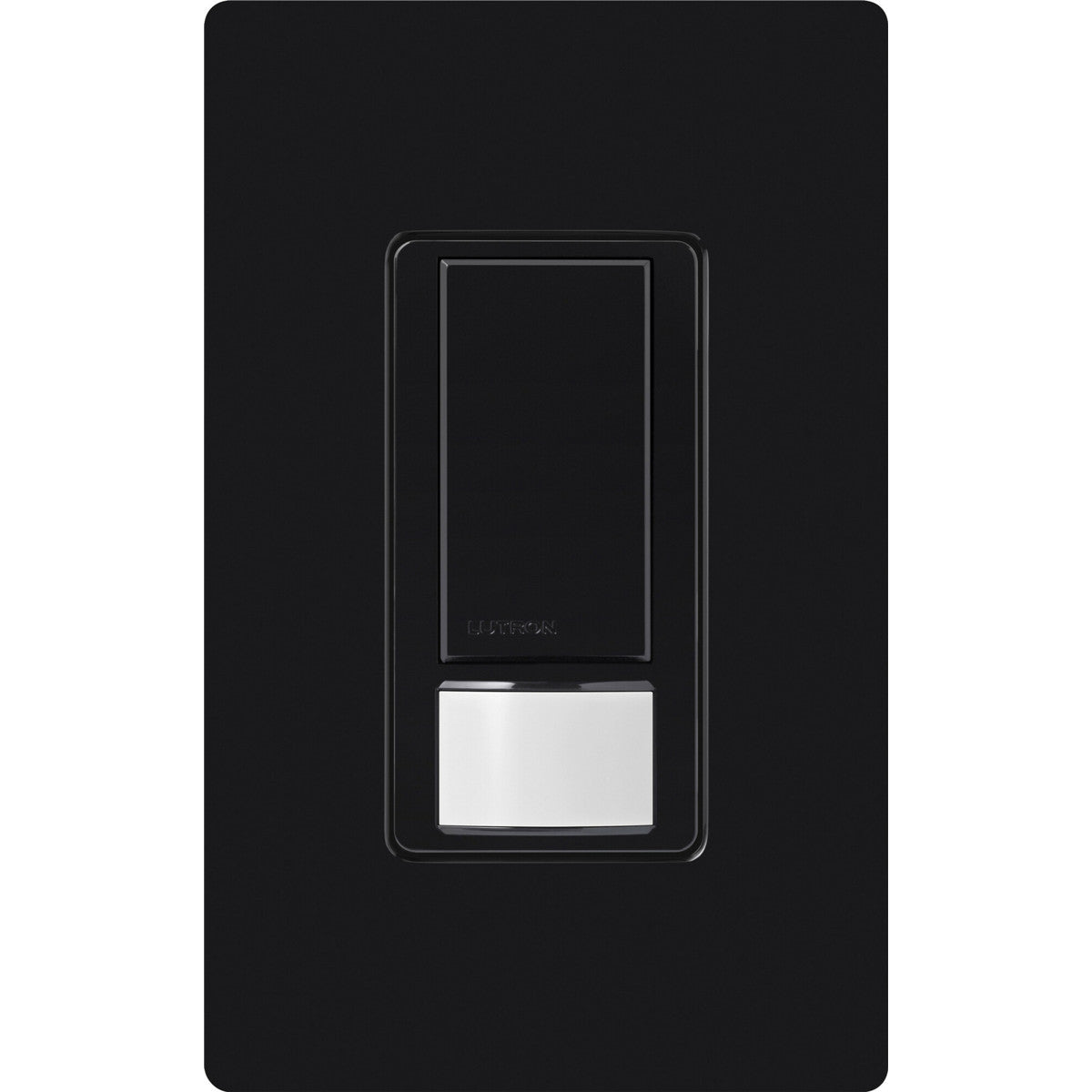

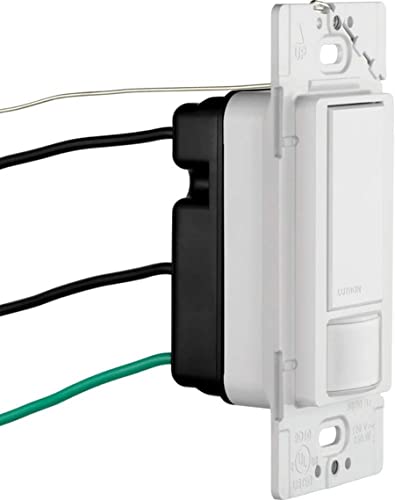

The Lutron MS-OPS2-BL Maestro Motion Sensor Switch automatically controls lighting based on occupancy. This single-pole switch features passive infrared (PIR) sensing with Lutron's XCT technology for fine motion detection, covering up to 900 sq ft. It supports various load types, including LED and CFL, up to 2A and 250W, and includes smart ambient light detection to prevent unnecessary activation, promoting energy savings.
- 180-degree field of view with 900 sq ft major motion and 400 sq ft minor motion coverage.
- Features Lutron XCT Technology for fine motion detection, preventing lights from turning off inadvertently.
- Adjustable timeout settings (1, 5, 15, or 30 minutes) and supports vacancy mode for energy efficiency.
Product Highlights
Automatic lighting control with advanced motion sensing and ambient light detection for energy savings.
Product Information
Standard Information
-
Brand: LUTRON
-
Manufacturer Part Number: MS-OPS2-BL
Technical Specifications
-
MPN: MS-OPS2-BL
-
Manufacturer: Lutron Electronics
-
Brand: Lutron
-
Series: Maestro
-
Application: Lighting Control
-
Enclosure Material: Plastic
-
Mounting Type: Wall
-
Sensing Range: 900 sq ft major motion / 400 sq ft minor motion
-
Sensor Type: Passive Infrared (PIR) with XCT Technology
-
Certifications: UL, cUL, NOM
-
Input Voltage: 120V
-
UPC: 027557982597
-
GTIN: 00027557982597
-
Product Type: Occupancy/Vacancy Sensor Switch
-
Environmental Conditions: 0 to 90% humidity, non-condensing, Indoor use only
-
Operating Temperature: 32 to 104 F
-
Pack Quantity: 1
-
Operation Mode: Automatic On/Off
-
Output Current: 2 Amps
-
Contact Type: Normally Closed
-
Connector Type: Screw
-
Terminal Type: Screw
-
Circuit Type: 1-way
-
Actuator Type: Push Button
-
Number of Positions: 2
-
Max Load Wattage: 250W
-
Control Type: Automatic
-
Compatible Load Types: Incandescent, Halogen, CFL, LED, Electronic Low Voltage, Magnetic Low Voltage, Electronic Fluorescent, Fan, 2-Amp Ballasts
-
Contact Material: Brass
-
IP Rating: IP00
-
Switch Type: Single Pole
