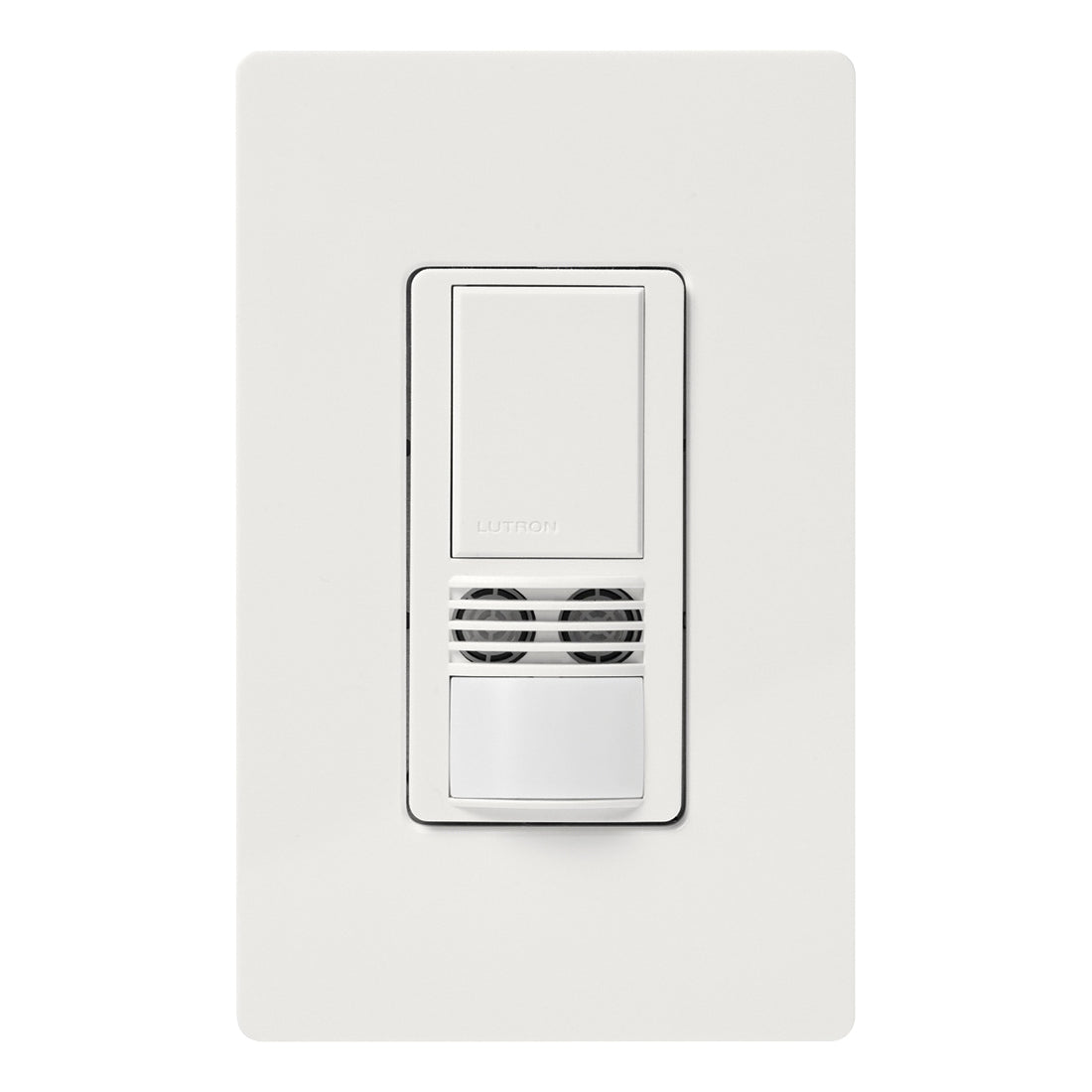

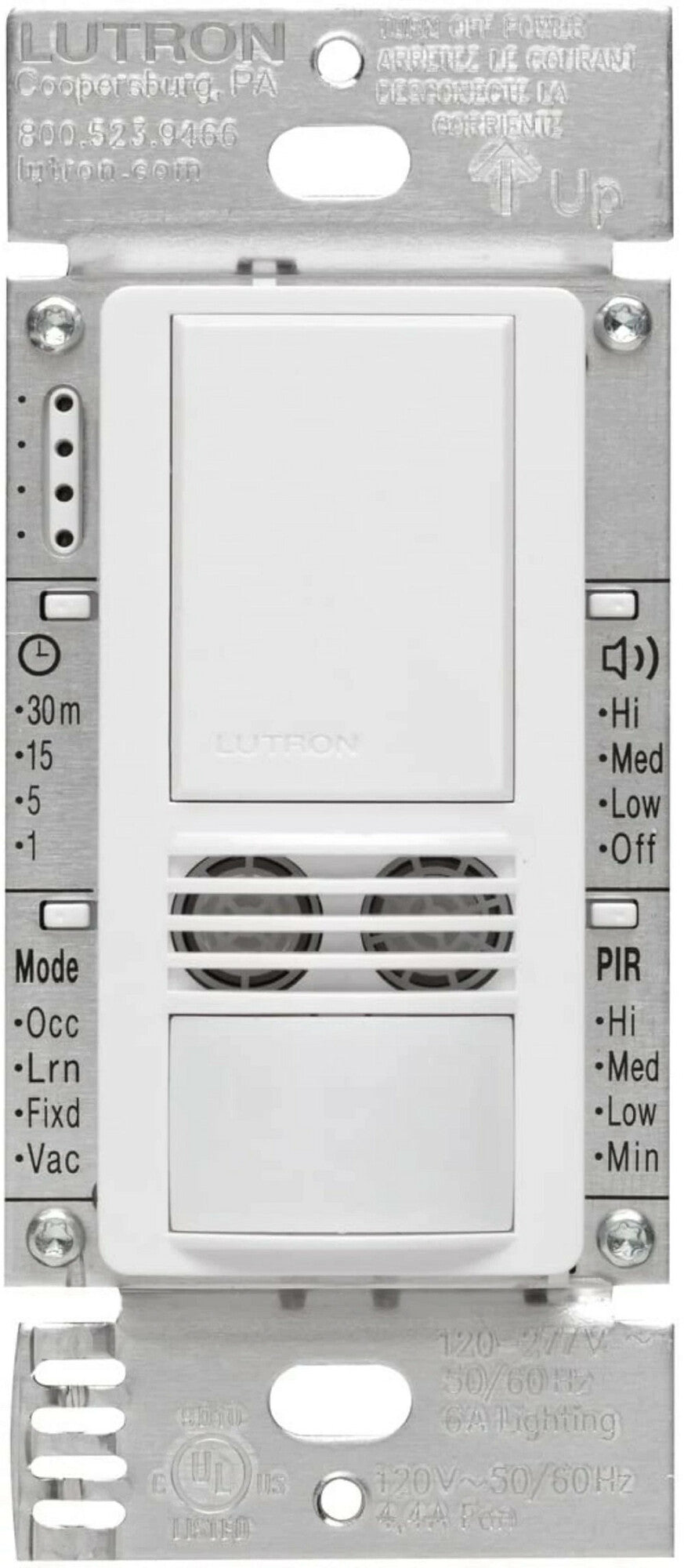

Lutron MS-B102-WH Maestro Occupancy Sensing Switch 120 to 277VAC

Product Description

The Lutron Maestro MS-B102-WH is an occupancy sensing switch that operates at voltages ranging from one hundred twenty to two hundred seventy-seven VAC. The switch uses both passive infrared and ultrasonic sensing technologies for reliable operation. It is suitable for single-pole or three-way applications, providing flexible installation options.

• Coverage area of nine hundred square feet for major motion and four hundred square feet for minor motion.
• Features XCT technology for fine motion detection, enhancing usability for tasks such as typing.
• Adjustable time delay settings that include options for one, five, fifteen, or thirty minutes.

Product Highlights

This switch is ideal for various settings, including private offices and bathrooms. It helps ensure lights are automatically turned off when spaces are unoccupied, complying with energy-saving codes.

Product Information

Standard Information

• Brand: Lutron
• Manufacturer Part No.: MS-B102-WH

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Coverage Range: 900 ft² major motion, 400 ft² minor motion
• Operating Temperature: 32 to 104 °F
• Time Delay: 1, 5, 15, or 30 minutes
• Dimensions: 4-11/16 in H x 2-15/16 in W x 1-1/8 in D
• Amperage Rating: 6 A
• Sensor Type: Passive Infrared/Ultrasonic
• Mounting Type: Wall
