Lutron MRF2S-8SD010-WH Maestro RF 434MHZ 8A 0-10V OCC WH

Product Description

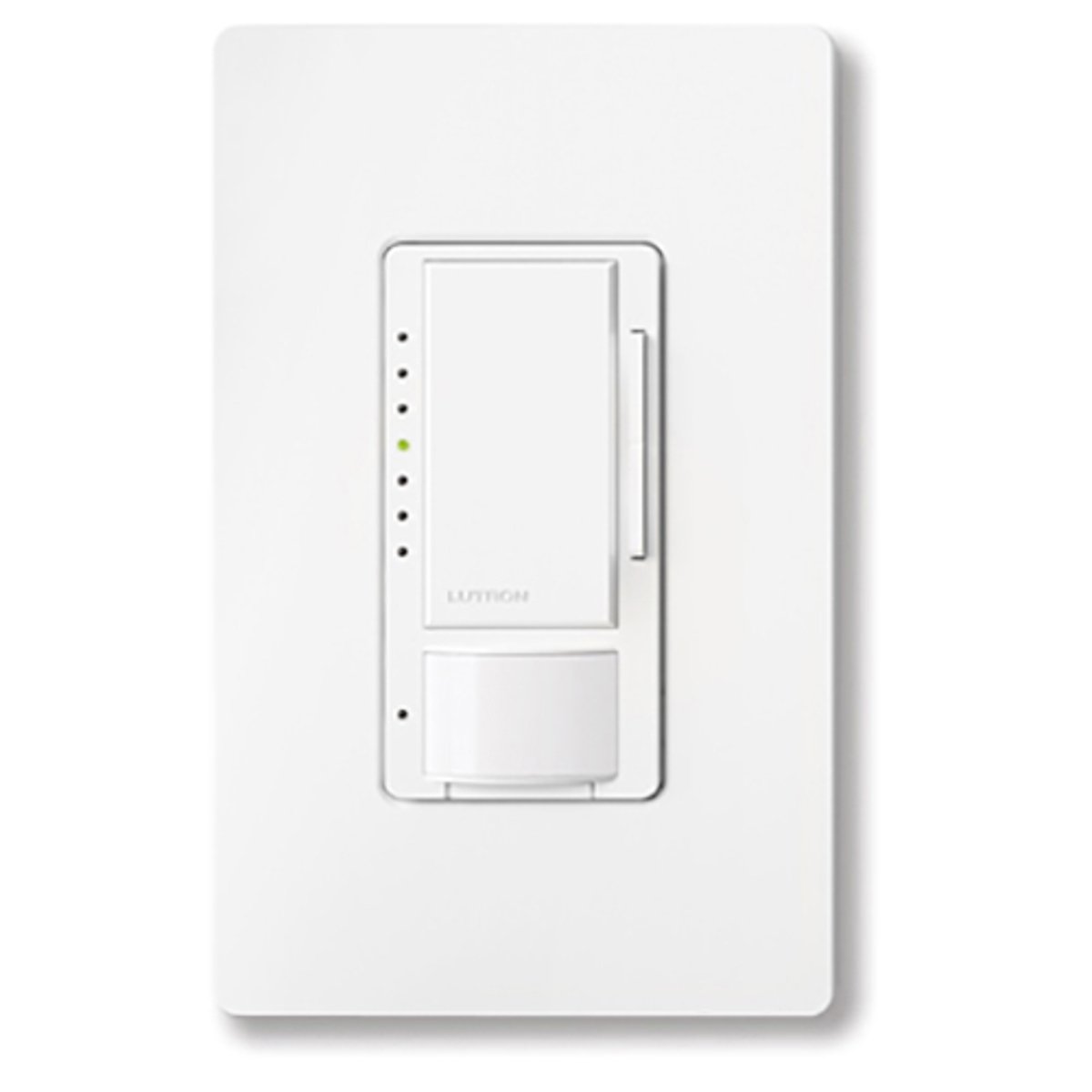

The Lutron Maestro RF MRF2S-8SD010-WH is an occupancy and vacancy sensor dimmer designed for lighting control. This device operates on a voltage range of one hundred twenty to two hundred seventy-seven volts alternating current with an output current of eight amps. With a sleek wall-mountable design, it features advanced passive infrared sensing technology for automatic lighting control based on occupancy.

• Supports up to ten Pico remote controls and one Radio Powr Savr daylight sensor.
• Major motion coverage of up to nine hundred square feet and minor motion coverage up to four hundred square feet.
• Adjustable timeout settings from one to thirty minutes.

Product Highlights

This dimmer is suitable for indoor applications and complies with UL and NOM certifications.

Product Information

Standard Information

• Manufacturer: Lutron Electronics
• Part Number: MRF2S-8SD010-WH

Technical Specifications

• Operating Voltage: 120 to 277 Volts
• Output Rating: 8 Amps
• Sensing Range: 900 ft2 (Major), 400 ft2 (Minor)
• Operating Temperature: 32 to 104 F
• Enclosure: NEMA 410/WD7
• Mounting Type: Wall
• Dimmer Type: 1-Pole
• Special Features: Adjustable high/low trim settings, smart ambient light detection
