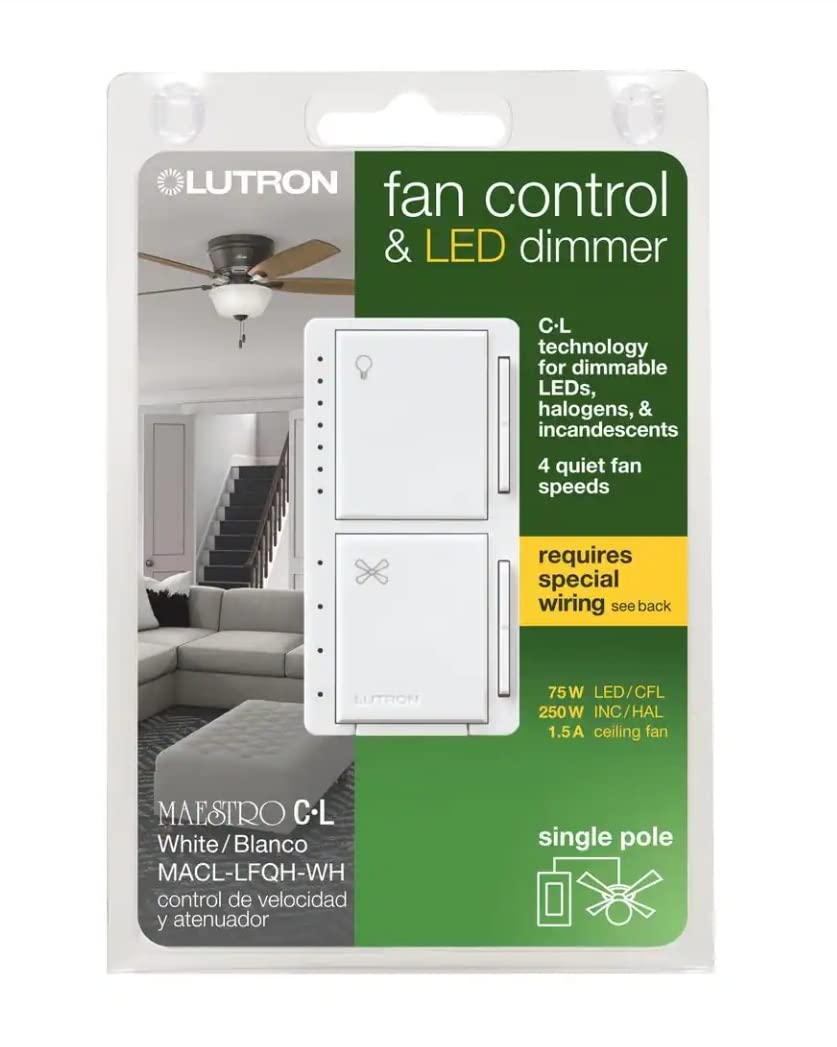

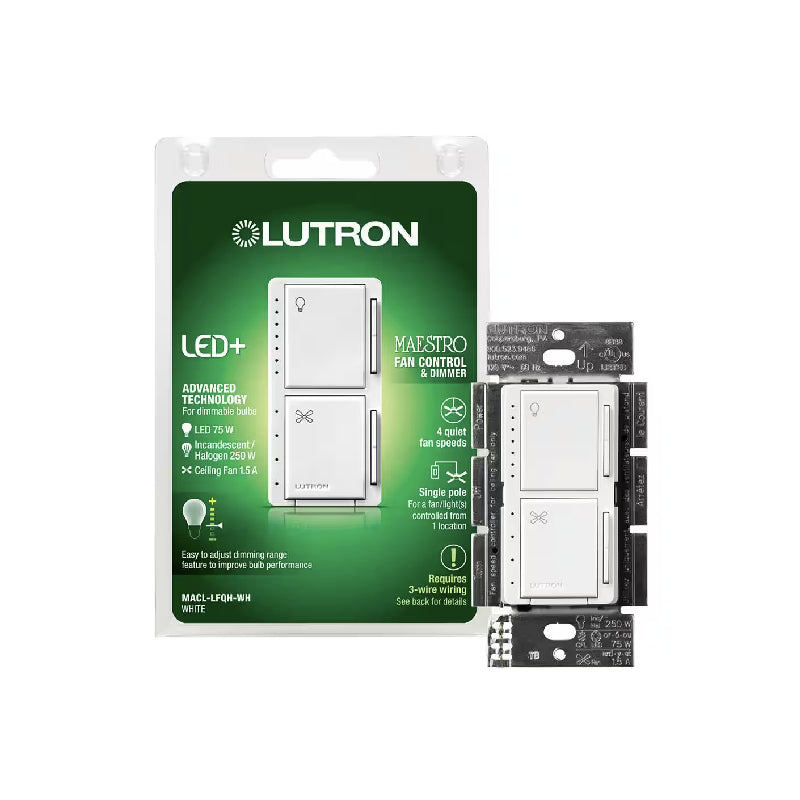

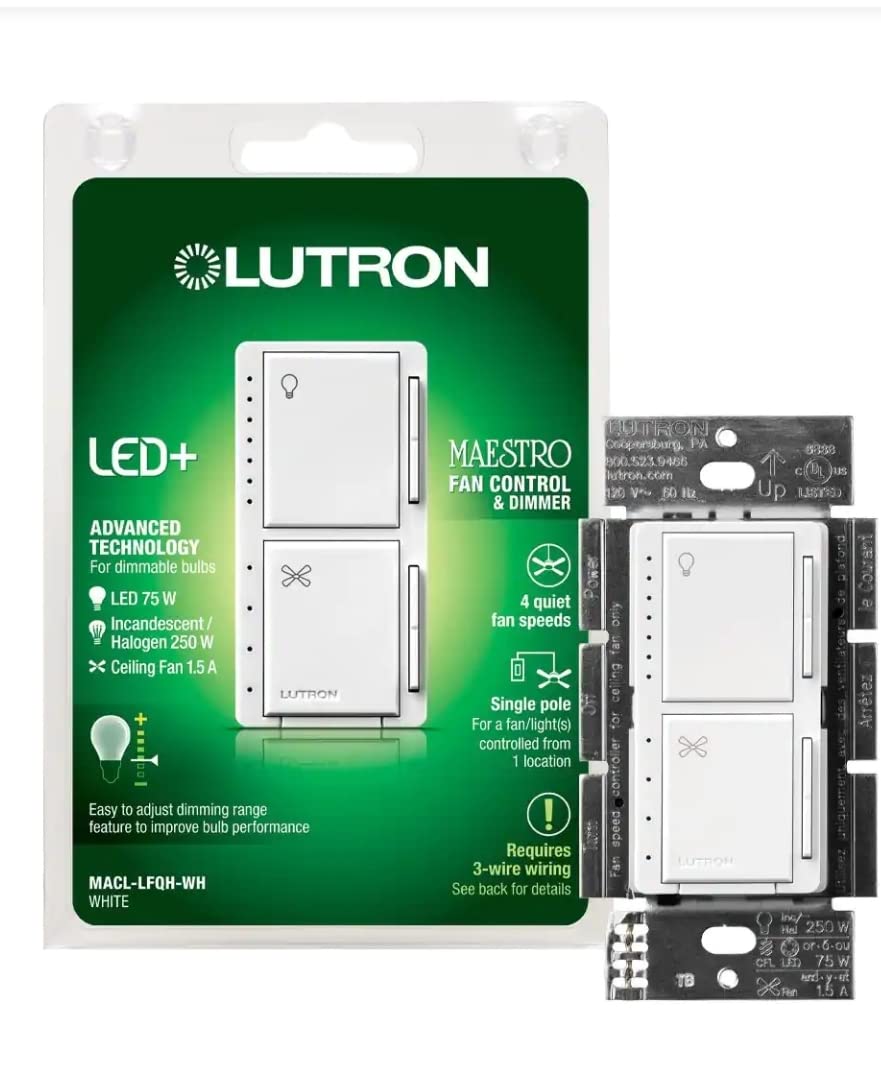

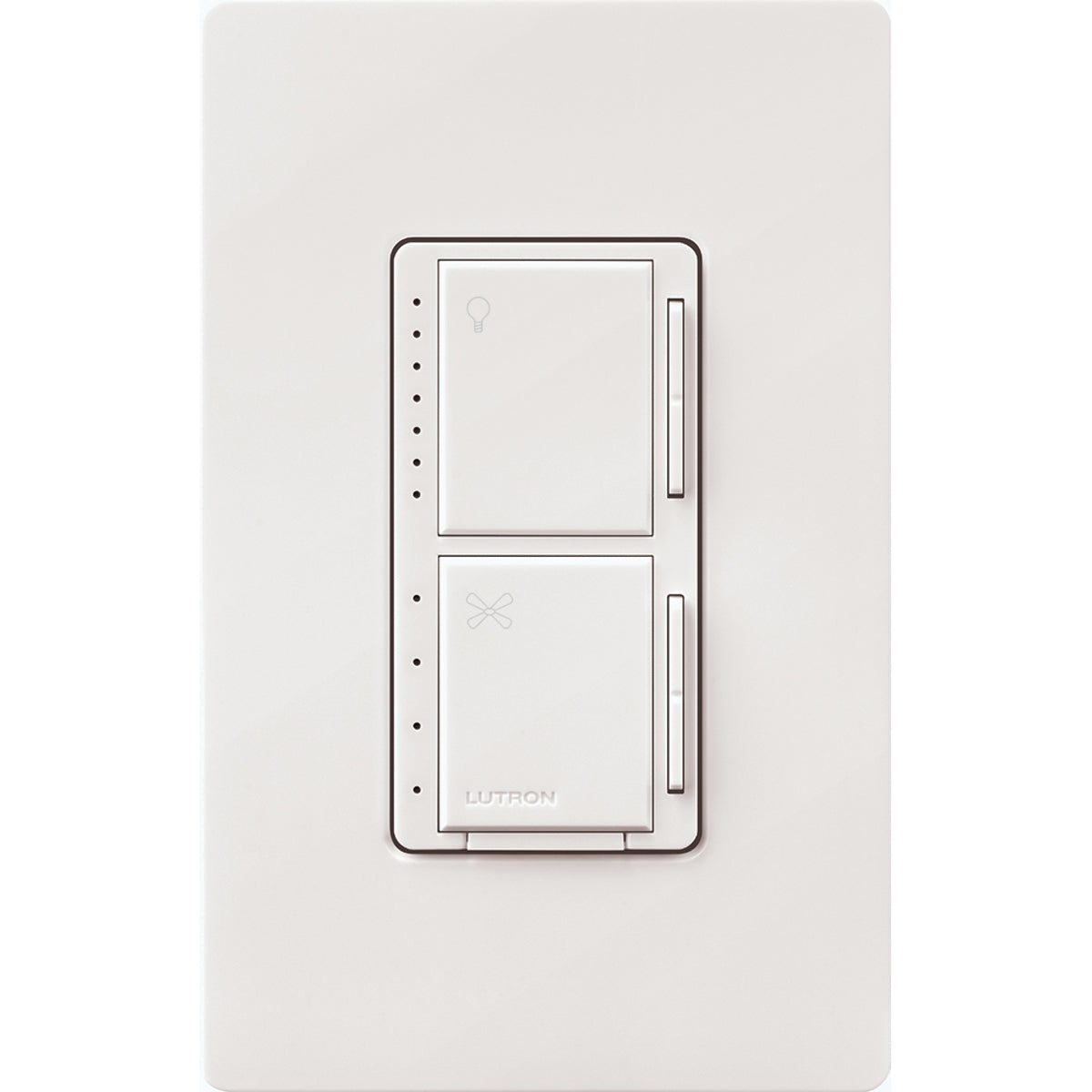

Lutron MACL-LFQH-WH Maestro White Dimmer & Fan Control Switch

Product Description

The Lutron MACL-LFQH-WH Maestro White Dimmer & Fan Control Switch allows you to control your fan and dim your lights. This single-pole switch features a tap switch actuator and screw terminal connection. It is designed to prevent motor hum and is for use with only one fan/light. The dimmer works with up to 75W of dimmable LEDs or CFLs or 250W incandescent/halogen light and the fan control works with up to 1.5A ceiling paddle fan.

• Dimmer & Fan Control Switch
• Maestro Series
• 4 quiet fan speeds plus off provide enhanced comfort

Product Highlights

Control both fan and light with this Lutron Maestro switch. It features multiple fan speeds and dimming capabilities for optimal comfort.

Product Information

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: MACL-LFQH-WH
• Country of Origin: China

Technical Specifications

• MPN: MACL-LFQH-WH
• ItemID: LUTMACLLFQHWH
• UPCCode: 00784276239264
• Manufacturer: Lutron
• Brand: Lutron
• UOM: Each
• Country: CN
• Sub Brand: Maestro
• Actuator: Tapswitch
• Application: Lighting and Fan Control

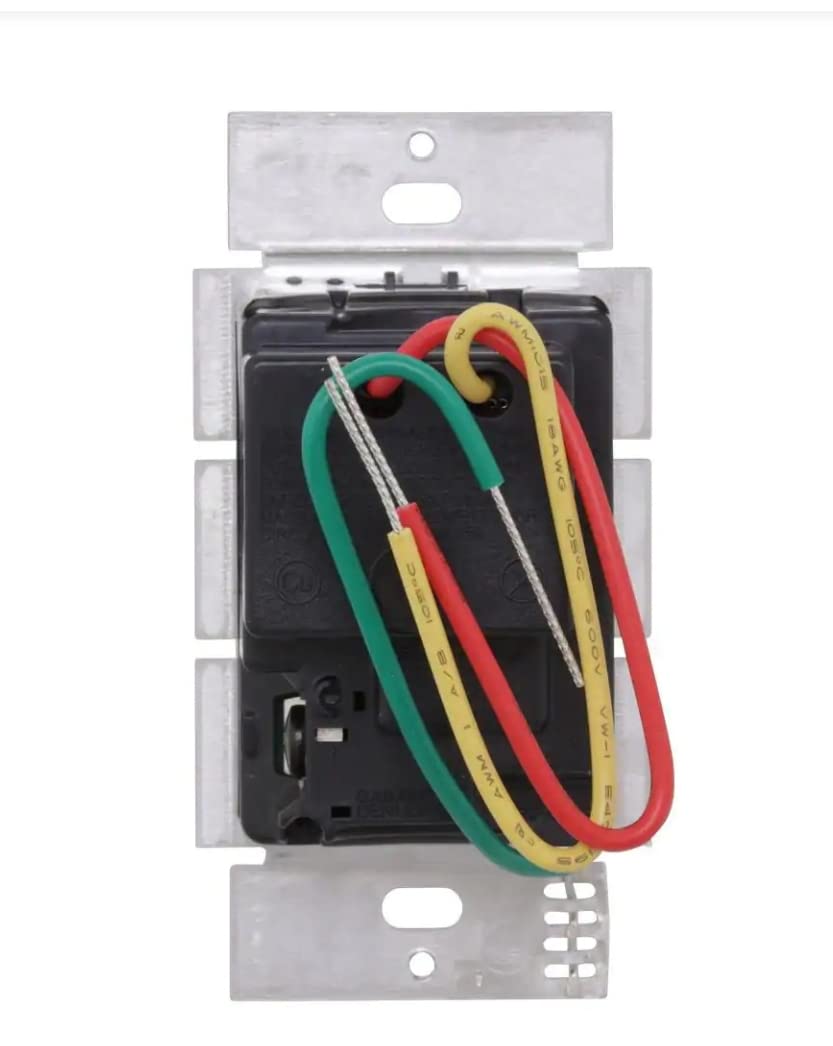

• Connection: Screw terminal
• Enclosure: Plastic
• Mounting: Wall
• Number of Poles: 1
• Special Features: Dimmer (top) Tap on dimmer to preset light level; tap off. Tap twice for full on. Touch rocker to adjust light level. Fan control (bottom) Tap on to preset fan speed; tap off. Touch rocker to adjust speed. 4-quiet fan speeds plus off provide enhanced comfort. Designed to prevent motor hum. For use with only one fan/light.
• UPC: 784276239264
• GTIN: 00784276239264
• Item Type: Digital preset fan/light control
• Size: 4.69 in (119 mm) x 2.94 in (75 mm)
• Voltage Rating: 120
• Wattage: 75 W dimmable LED/CFL or 250 W incandescent/halogen light
• Amps: 1.5 amps
• UL Listed: Yes
• Dimensions: H: 4.75 in
• W: 2.3 in
• D: 2.3 in
• Input Voltage: 120V
• Load: 1.5A
• Installation: Single Pole
• Compatible Devices: Dimmable LEDs, CFLs, incandescent, and halogen bulbs (up to 75W for LEDs/CFLs, 250W for incandescent/halogen); ceiling fans (up to 1.5 Amp)
