Product Description

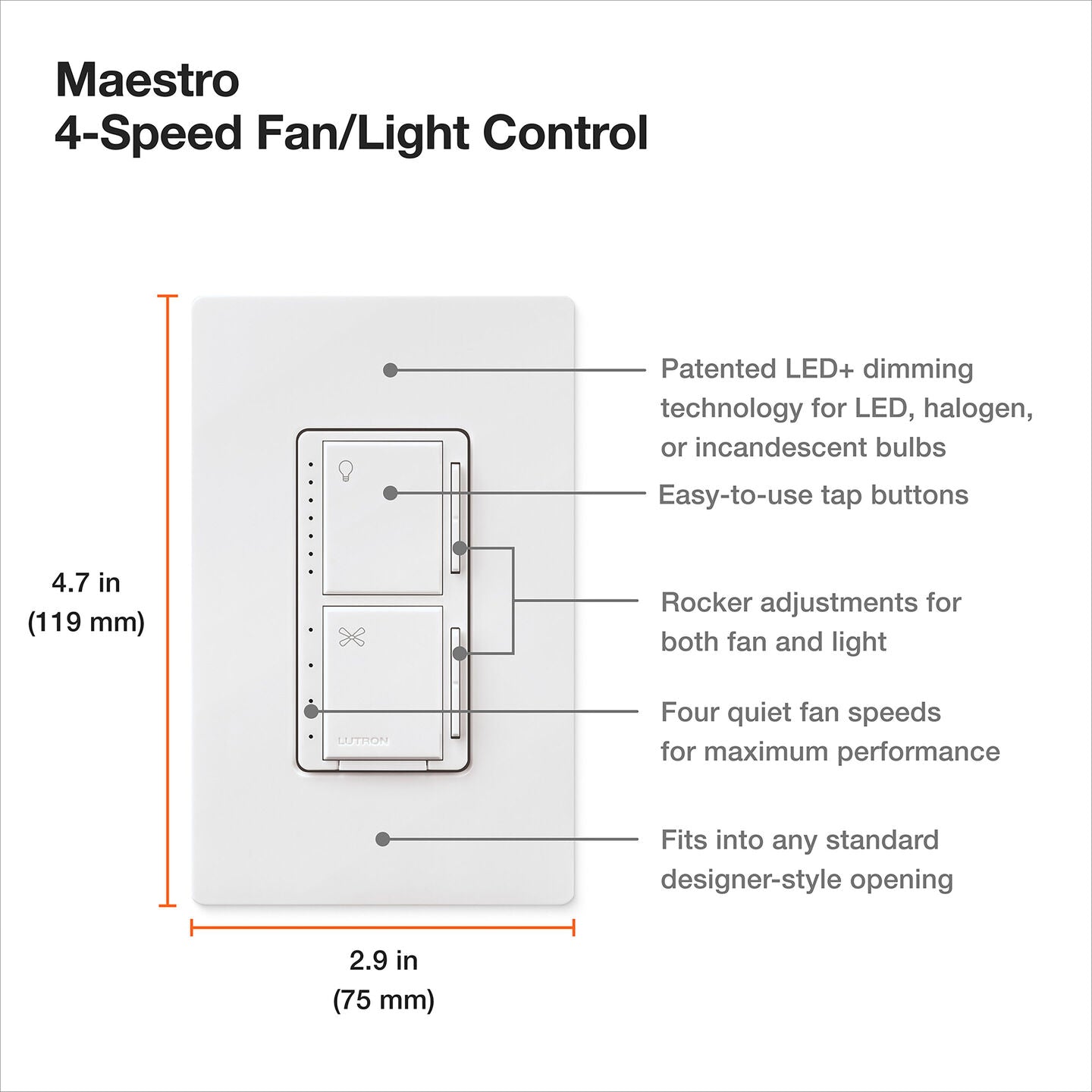

The LUTRON MACL-LFQH-IV Maestro LED+ Fan/Light Control is a single-pole control operating at 120V. It supports 75W dimmable LED/CFL or 250W incandescent/halogen lights and a 1.5A fan. The device features a dimmer for preset light levels and a fan control with four quiet speeds. Designed to prevent motor hum, it enhances comfort by managing both lighting and fan speed from a single wall control.
- Dimmer with tap on/off and touch rocker for light level adjustment.
- Fan control with tap on/off and touch rocker for speed adjustment.
- Four quiet fan speeds plus off for enhanced comfort.
Product Highlights
This digital preset fan/light control offers enhanced comfort and convenience with its dimming and fan speed adjustment capabilities.
Product Information
Standard Information
-
Brand: LUTRON
-
Manufacturer Part Number: MACL-LFQH-IV
-
Country of Origin: Unknown
Technical Specifications
-
Catalog Number: MACL-LFQH-IV
-
Manufacturer: Lutron Electronics
-
Brand: Lutron
-
Sub Brand: Maestro
-
Actuator Type: Tapswitch
-
Application: Lighting and Fan Control
-
Connection Type: Screw-Type Terminals
-
Mounting Type: Wallbox
-
Number of Poles: 1 Pole
-
Special Features: Dimmer (top) Tap on dimmer to preset light level; tap off. Tap twice for full on. Touch rocker to adjust light level. Fan control (bottom) Tap on to preset fan speed; tap off. Touch rocker to adjust speed. 4-quiet fan speeds plus off provide enhanced comfort. Designed to prevent motor hum. For use with only one fan/light.
-
UPC: 784276239240
-
GTIN: 00784276239240
-
Item Type: Digital preset fan/light control
-
Voltage Rating: 120
-
Wattage: 75 W dimmable LED/CFL or 250 W incandescent/halogen light
-
Model / MPN: MACL-LFQH-IV
-
Wiring Type: Single pole
-
Wiring Requirements: No neutral wire required
-
Indoor / Outdoor: Indoor
-
Voltage: 120 V~ 50/60 Hz
-
Ratings: 1.5 A fan
-
UNSPSC: 39122232
-
Finish: Gloss
-
Material: Plastic
-
Type: Digital preset fan/light control
-
Amperage Rating: 1.5 A fan
-
Lamp Watts: 75 W dimmable LED/CFL or 250 W incandescent/halogen light
-
Rated Voltage: 120
-
Amperage: 1.5 Amp
-
Applications: Fan,Lighting
-
Enclosure Material: Plastic
-
TC Connection: Screw terminal
