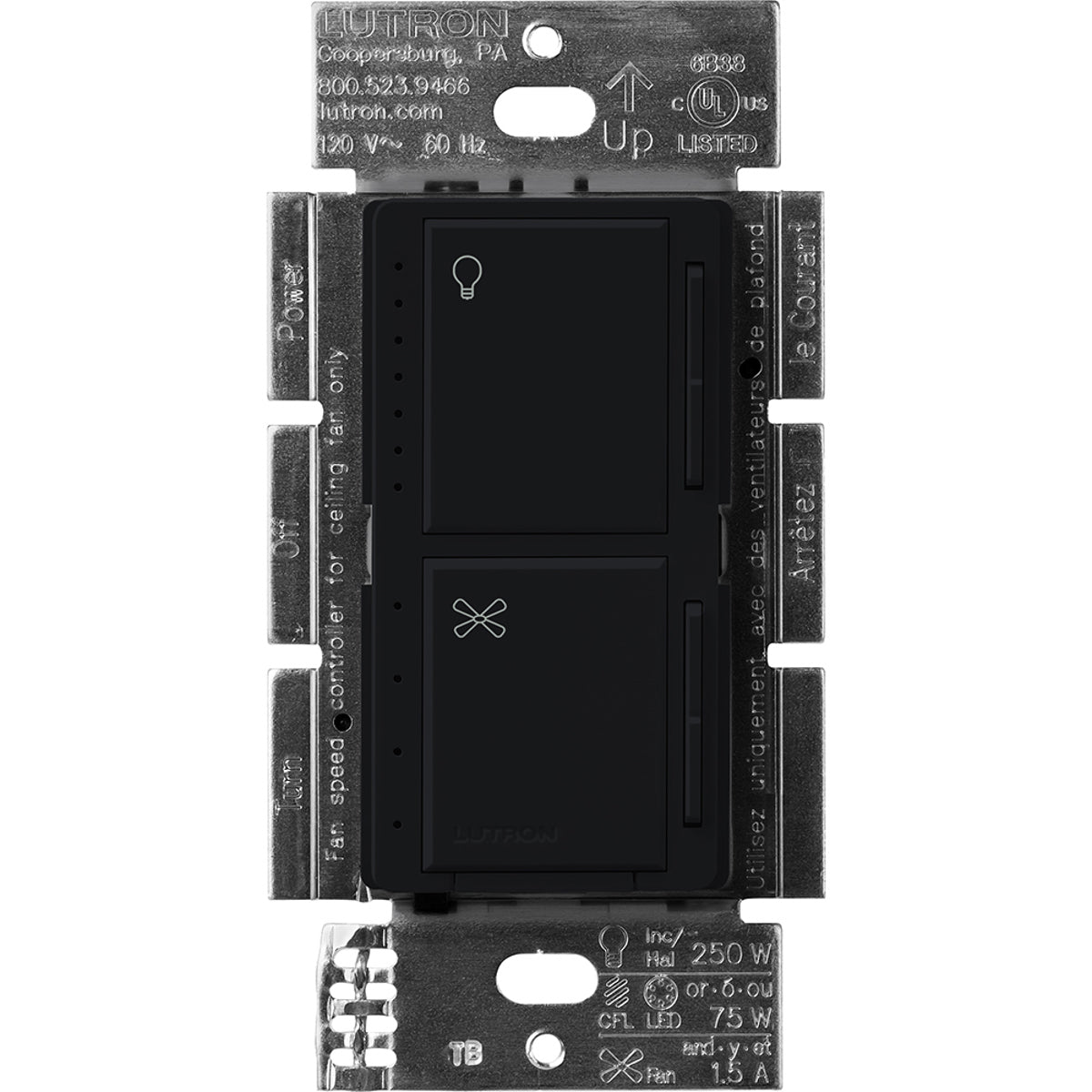

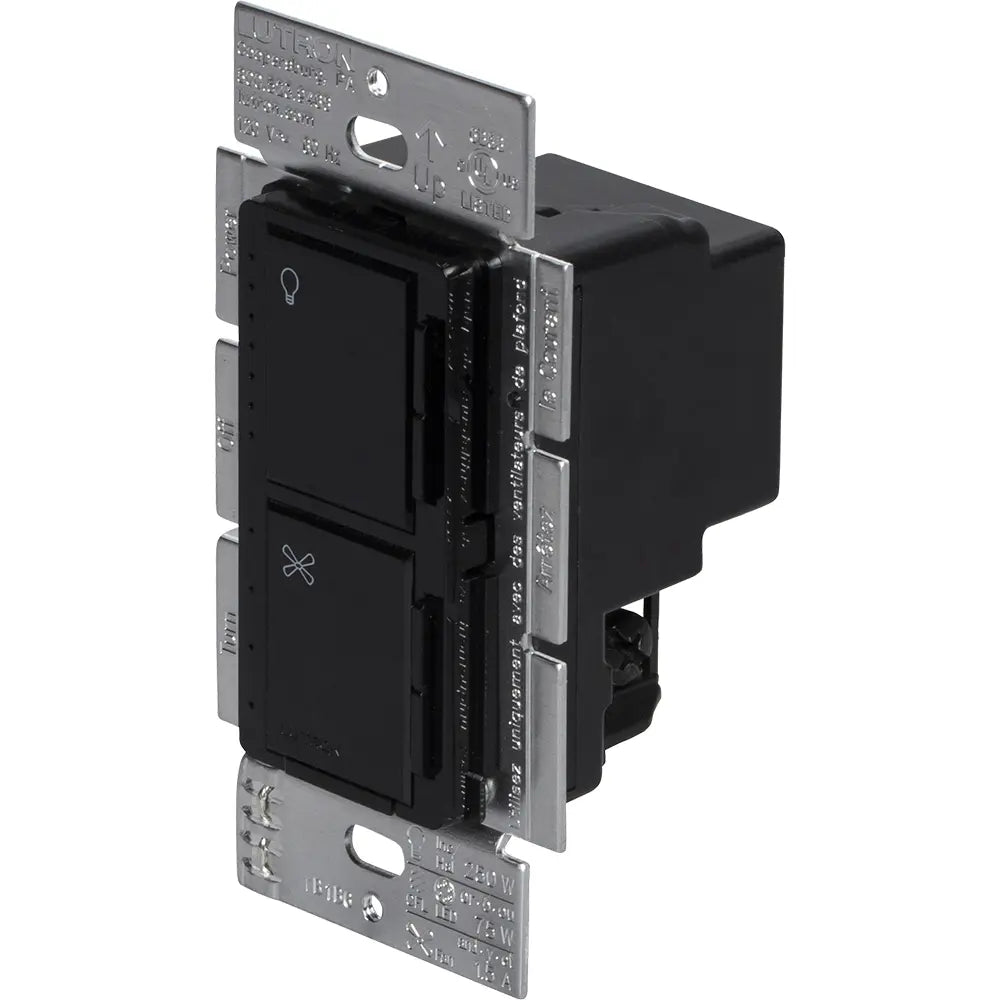

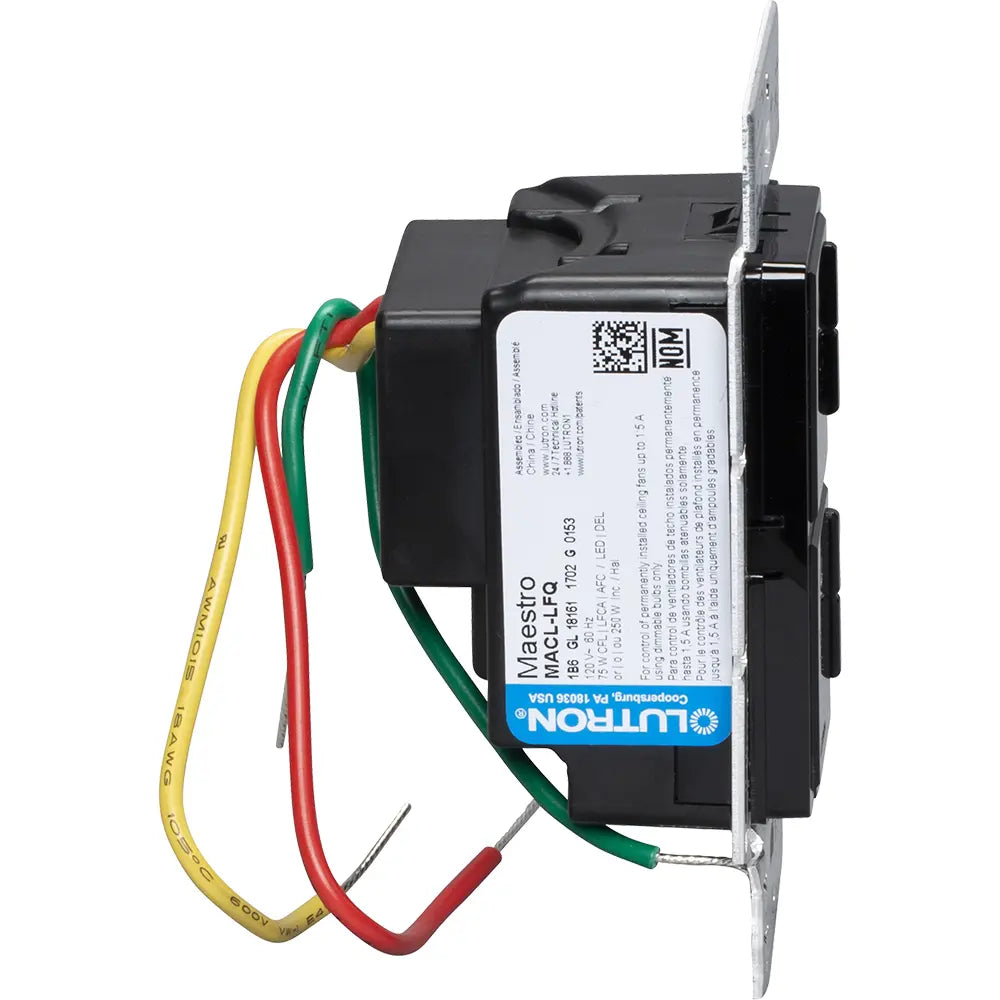

Lutron MACL-LFQ-BL Maestro LED+ Fan/Light Control 120V 75W (Pack of 1)

Product Description

Lutron MACL-LFQ-BL is a Maestro LED+ dual control that combines a 75W LED/CFL (or 250W incandescent/halogen) dimmer with a 4-speed fan controller for single-pole, 120V installations. The device uses a tap switch and raise/lower touch rocker for preset, full-on, dimming and speed adjustment, and installs via screw terminals or wire leads without a neutral or canopy module.

• LED+ dimmer: supports up to 75W dimmable LED/CFL or up to 250W incandescent/halogen with low-end trim programming and tap-to-preset/double-tap for full on
• Fan control: four quiet speeds for a single paddle fan, rated to 1.5 A, designed to reduce motor hum
• Installation: single-pole mounting with screw terminal and wire lead connections; no neutral required; plastic enclosure

Product Highlights

Dual single-pole 120V control: 75W LED dimmer and 4-speed 1.5A fan control; screw terminal installation; tap and touch-rocker operation.

Product Information

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: MACL-LFQ-BL
• Country of Origin: China

Technical Specifications

• Brand: Lutron
• MPN: MACL-LFQ-BL
• Product Name: Maestro LED+ fan/light control
• Type: Fan and light control
• Input Voltage: 120 VAC
• Light Capacity (LED/CFL): Up to 75 W dimmable LED/CFL
• Light Capacity (Incandescent/Halogen): Up to 250 W
• Fan Rating / Output Current: 1.5 A
• Number Of Poles: Single-pole
• Number Of Fan Speeds: 4
• Actuator: Tap switch and touch-rocker (raise/lower)
• Contact Rating: 1.5 Amperes at 120 VAC

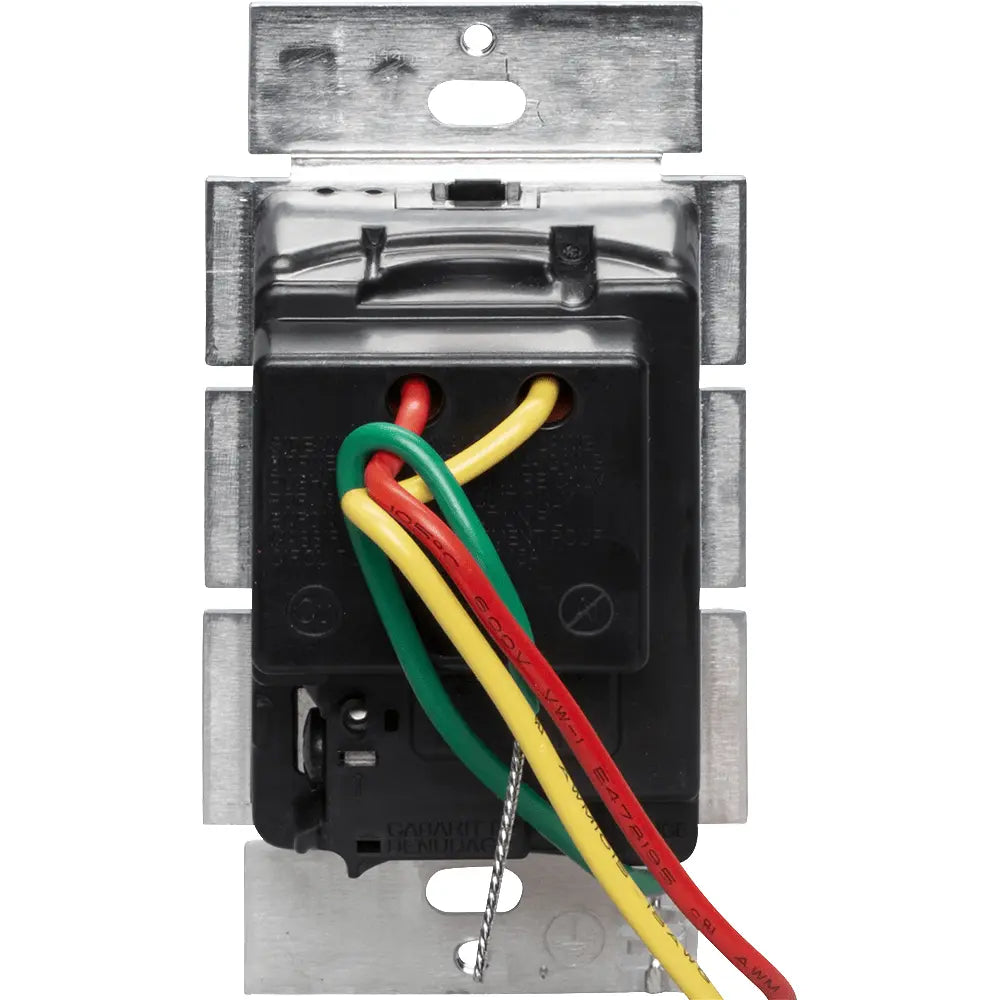

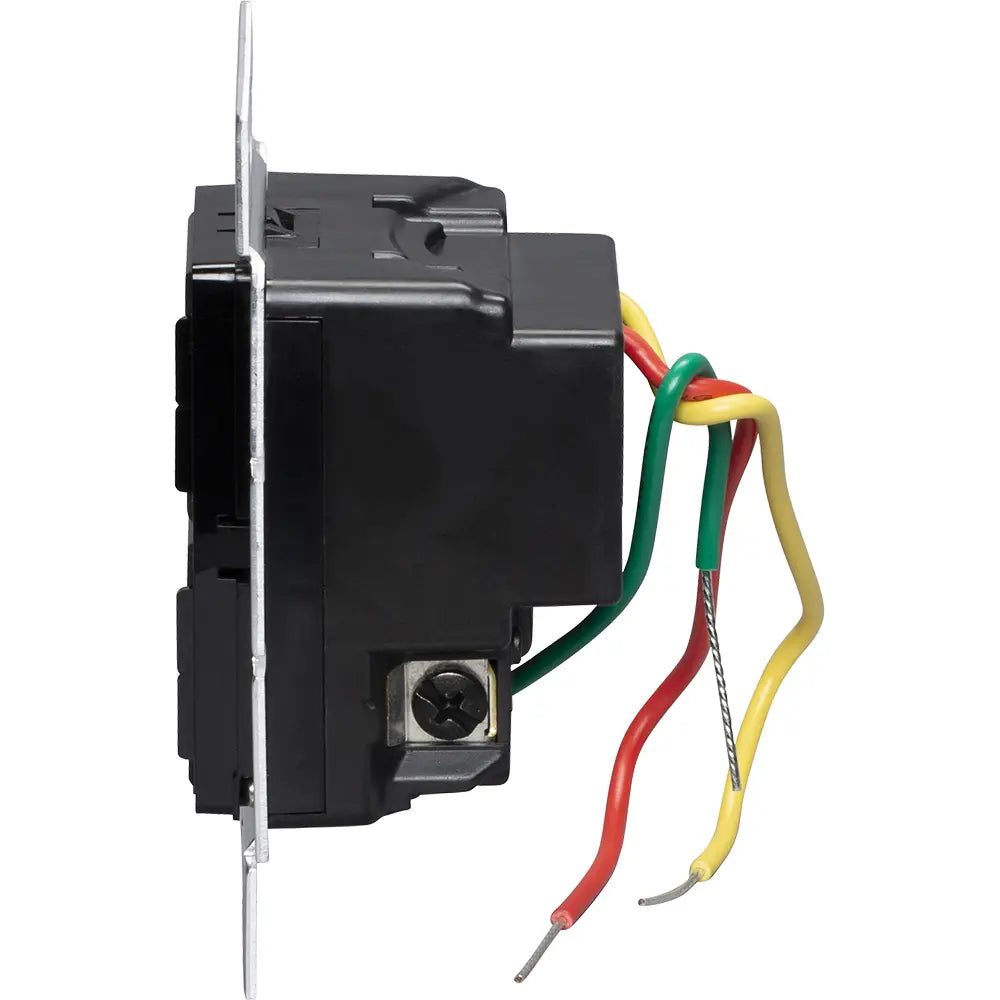

• Connection: Screw terminal and wire lead
• Mounting Type: Screw (wall, single-gang replacement)
• Enclosure Material: Plastic
• Programming: LED+ low-end trim programming; tap for preset; double-tap for full on; touch-rocker adjustment
• Environmental Conditions: Dry location
• Operating Temperature: 104�F
• Standards / Certifications: UL
• Dimensions (H x W x D): 4.68 in x 2.95 in x 1.85 in
• Weight: 0.3 Pounds
• Country of Origin: China
• UPC: 784276239301
• Datasheet: https://media.cityelectricsupply.com/media/lutron/macl-lfq-bl/documents/lutron_datasheet_1558146.pdf
• Pack Quantity: 1
