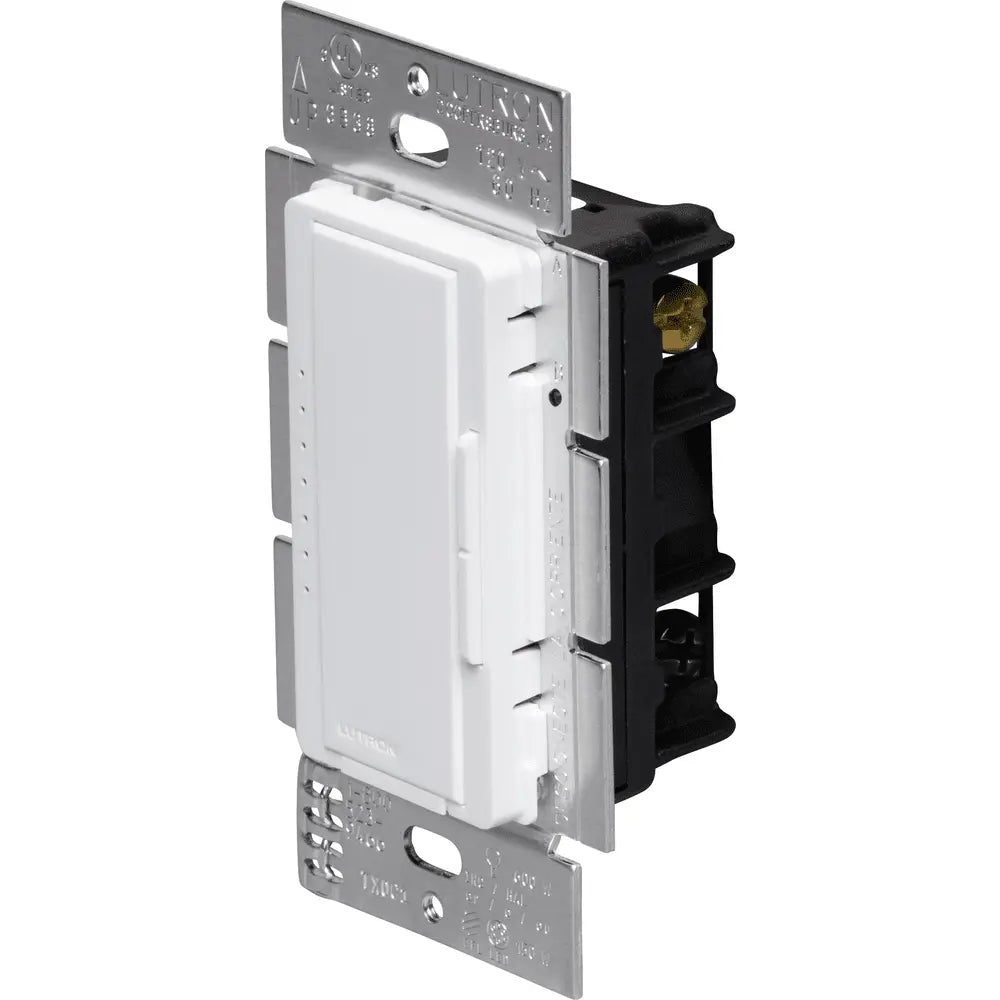

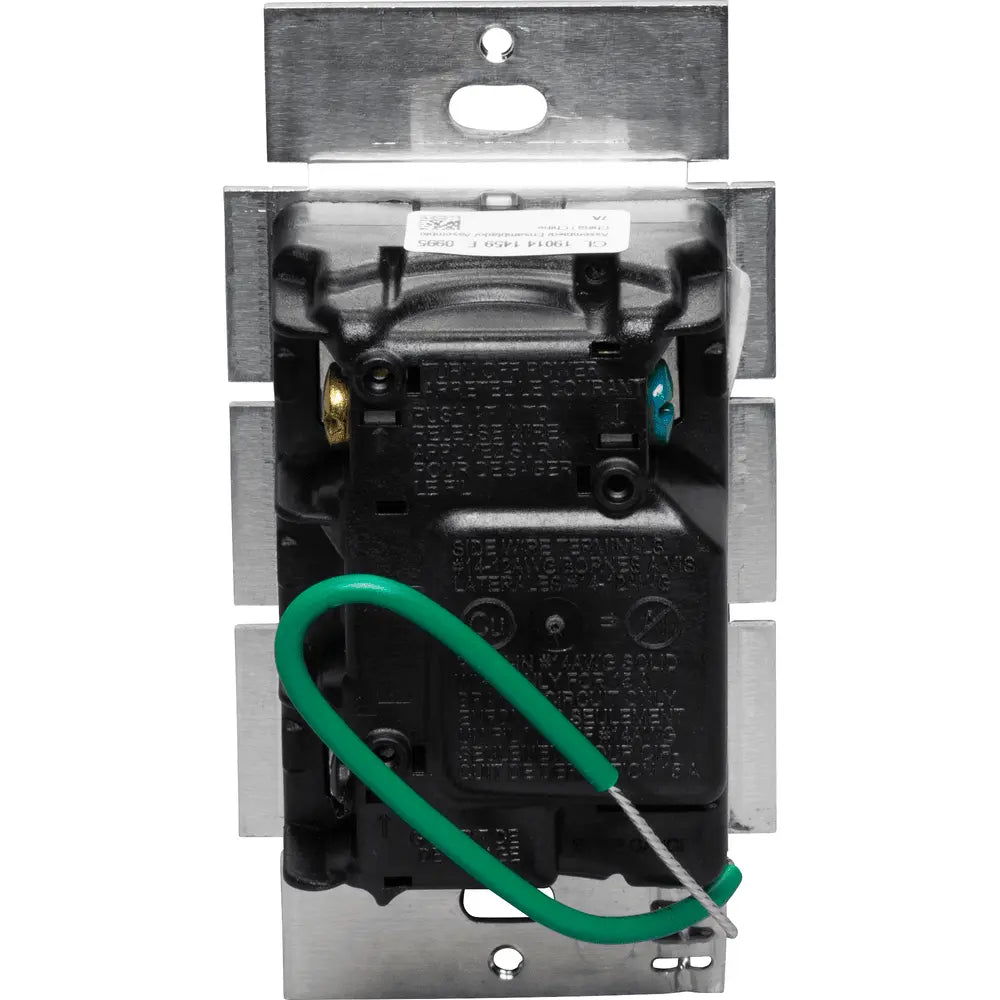

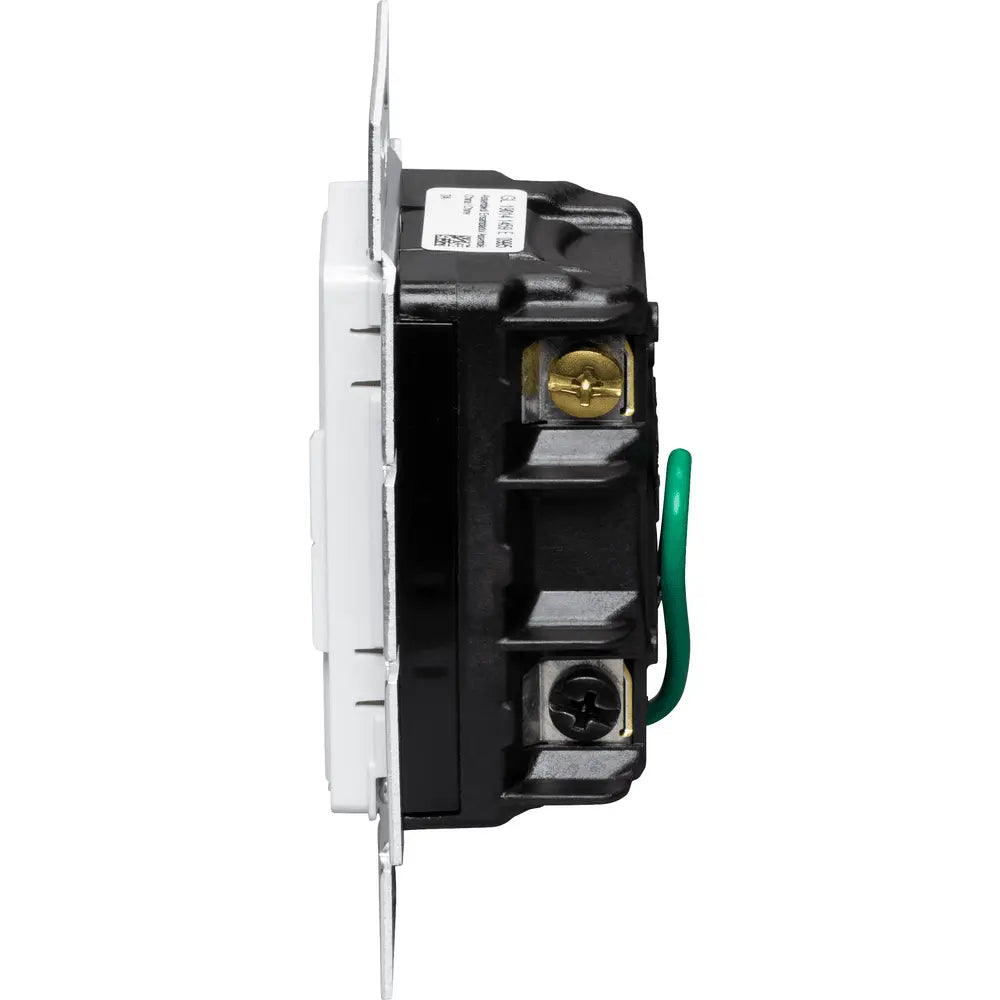

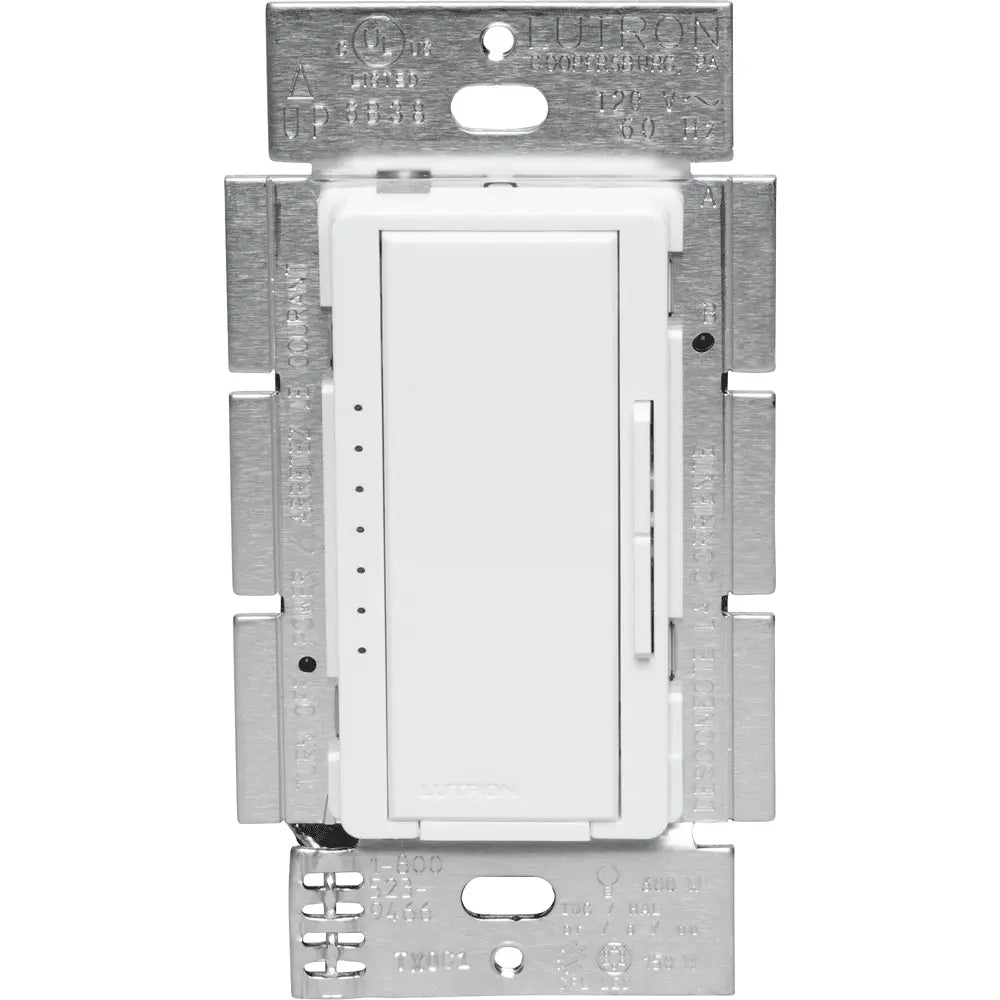

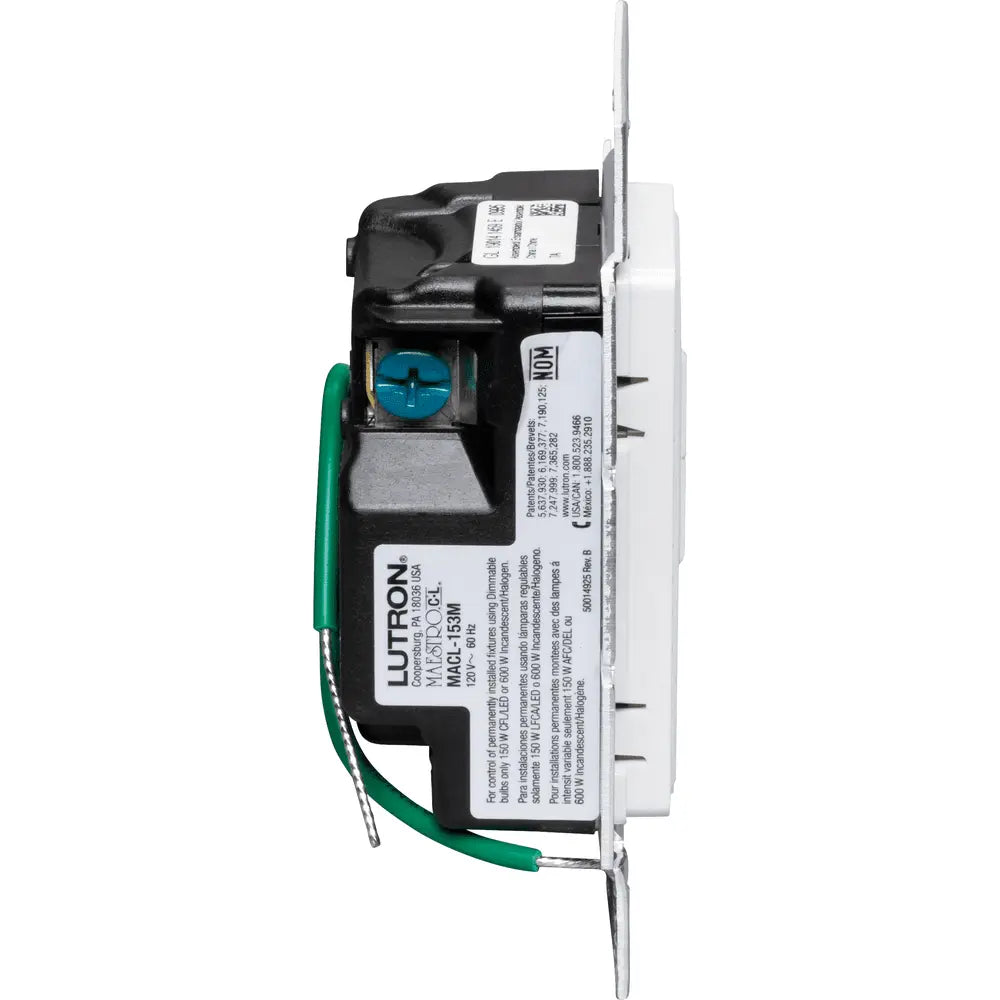

Lutron MACL-153MH-WH Maestro Dimmer 120VAC Single-Pole/3-Way

Product Description

The Lutron MACL-153MH-WH is a Maestro LED+ dimmer designed for use in single-pole and three-way applications. This dimmer allows for control over dimmable LED and CFL bulbs. It operates at 120VAC and has a load capacity of up to six hundred watts for incandescent and halogen bulbs, and up to one hundred fifty watts for CFL and LED bulbs. The sleek design fits standard wall plates and offers advanced features for optimal control.

• Compatible with a variety of bulb types.
• Features a tap switch for easy on/off operation.
• No neutral wire required for installation.

Product Highlights

The dimmer features customizable functions for user convenience, including programming for low-end trim adjustments. It maintains stable light levels with line frequency compensation, ensuring consistent performance even with fluctuating power.

Product Information

Standard Information

• Manufacturer: Lutron
• UPC: 784276010474

Technical Specifications

• Amperage Rating: 1.25 A
• Application: Indoor, Commercial and Residential
• Voltage Rating: 120 VAC
• Load Rating: 150 W (CFL/LED), 600 W (Incandescent/Halogen)
• Number of Poles: Single-Pole
• Frequency Rating: 60 Hz
• Temperature Rating: 0 to 40 deg C
• Control Type: Rocker with Tap On/Off
