Product Description
The Lutron MA-T51MN-LA Maestro Timer Switch for Fans and Lights is rated to work with up to 150W of LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV, or 3A general purpose fans. The Maestro Timer Switch requires a neutral wire making it suitable for DC and high efficiency exhaust fans. Save energy by using the Maestro Countdown Timer in closets, attics, bathrooms, and other low-traffic areas.
- Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans.
- Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms.
- Use with lighting.
- Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action.
- Touch rocker to adjust countdown time.
- One minute warning before lights/fan go off.
- Timer advanced programming features available.
Product Highlights
This timer switch is suitable for DC and high efficiency exhaust fans. It is compatible with 3-way/multi-location switching applications. It can save energy in closets, attics, and bathrooms.
Product Information
Standard Information
-
Brand: LUTRON
-
Manufacturer Part Number: MA-T51MN-LA
Technical Specifications
-
Catalog Number: MA-T51MN-LA
-
Manufacturer: Lutron Electronics
-
Brand: Lutron
-
Sub Brand: Maestro
-
Amperage Rating: 5
-
Application: Lighting Control
-
Connection: Screw terminal
-
Enclosure: Plastic
-
Mounting: Wall
-
Number of Poles: 1
-
Special Features: Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans. Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms. Use with lighting. Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action. Touch rocker to adjust countdown time. One minute warning before lights/fan go off. Timer advanced programming features available.
-
Standard: UL, cUL, IEC, ANSI/IEEE
-
UPC: 027557290876
-
GTIN: 00027557290876
-
Item Type: Countdown timer control switch, multi-location/single-pole
-
Timing Range: 5 - 60 min
-
Voltage Rating: 120
-
Wattage: 600 W
-

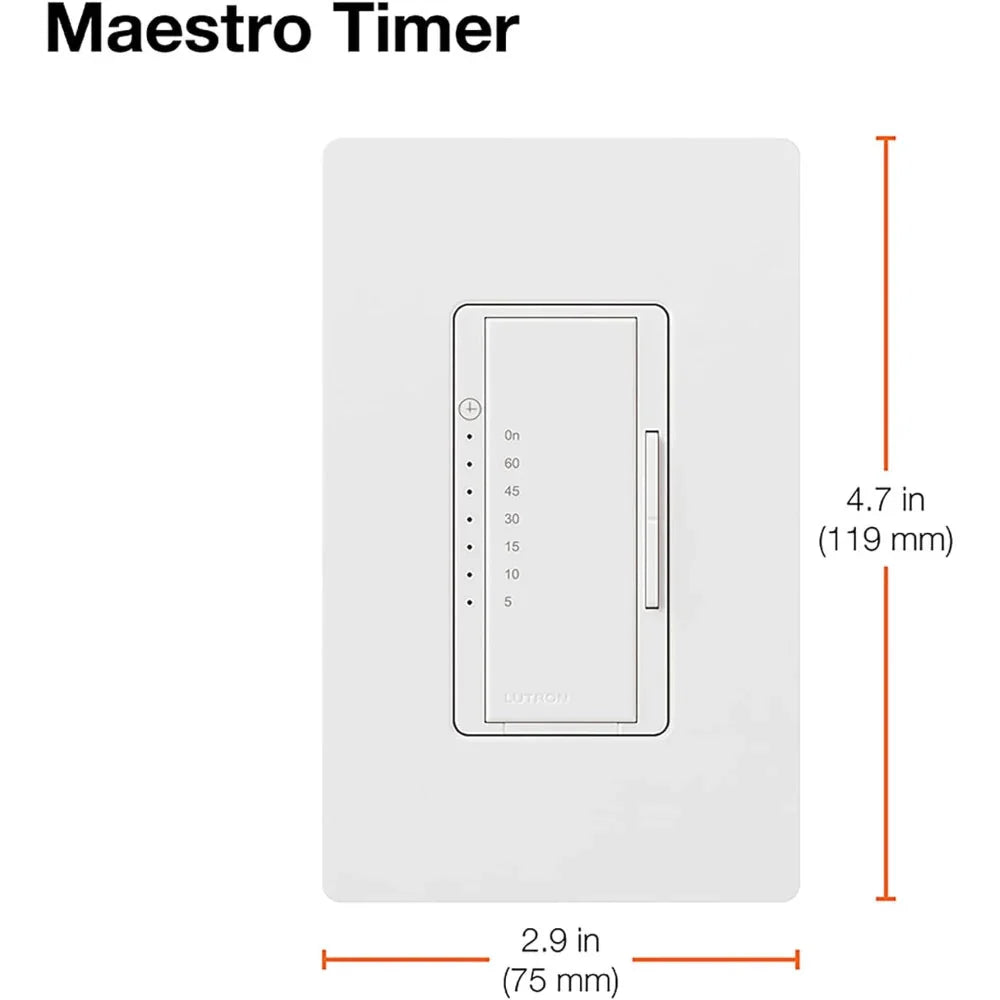

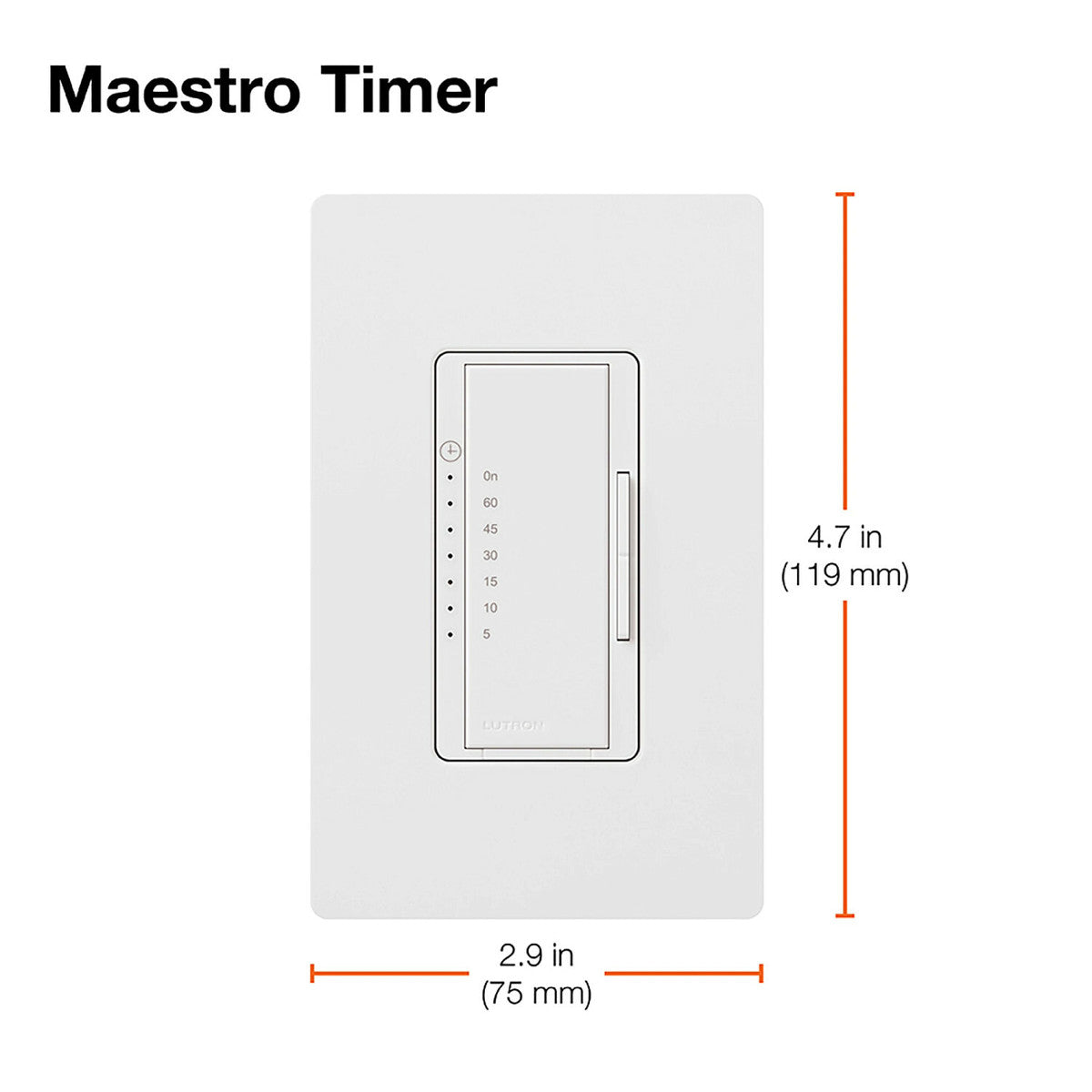

Dimensions Length/Depth: 1.2 in
-
Dimensions Width/Diameter: 2.8 in
-
Dimensions Height: 4.6 in
-
Material: Thermoplastic
-
Mounting Type: In-Wall mount
-
Function Type: Multi-Location, Single Pole
-
Voltage: 120V
-
Wattage Rating: 600.0W
-
Amps Rating: 5.0 A
-
SKU: MA-T51MN-LA
-
Family: Maestro
