Lutron MA-PRO-TP Maestro PRO LED+ Dimmer 600 W

Product Description

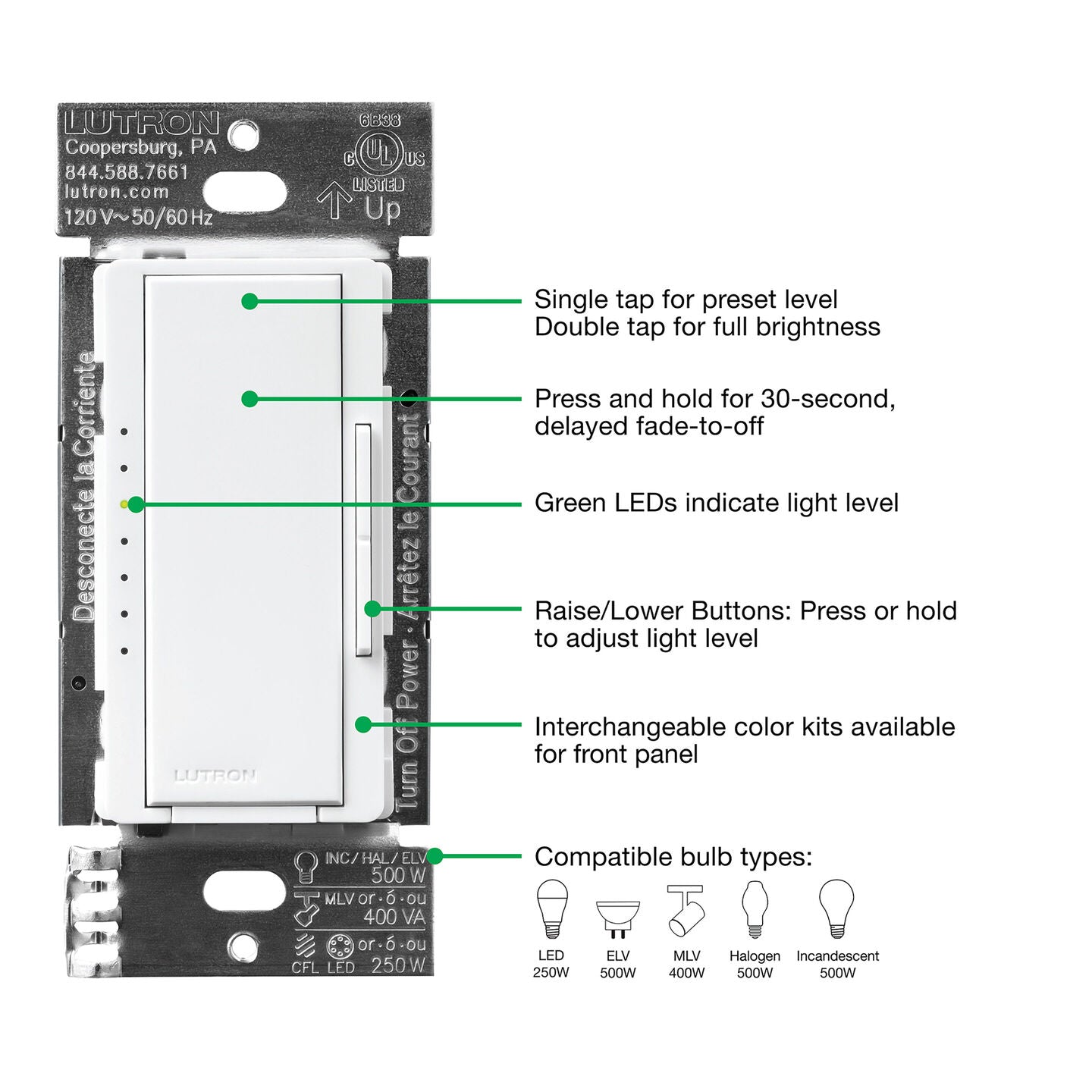

The Lutron MA-PRO-TP Maestro PRO LED+ dimmer features advanced phase selectable dimming and is designed for broader compatibility with high-efficiency lighting. The large decorator style tap switch turns lights on/off, and dimming buttons allow for local fine-tune dimming. It works with up to 9 Maestro Companion Dimmer Switches to create a multi-location dimming application. Screw terminal installation.

• Advanced phase selectable dimming.
• Designed for a broader compatibility range of high efficiency lighting.
• Compatible with dimmable LEDs, ELV, MLV, incandescent, and halogen loads.

Product Highlights

This dimmer provides broad compatibility with various lighting types and allows for multi-location dimming.

Product Information

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: MA-PRO-TP

Technical Specifications

• Catalog Number: MA-PRO-TP
• Manufacturer: Lutron Electronics
• Brand: Lutron
• Sub Brand: Maestro
• Actuator: Tapswitch
• Application: Lighting Control

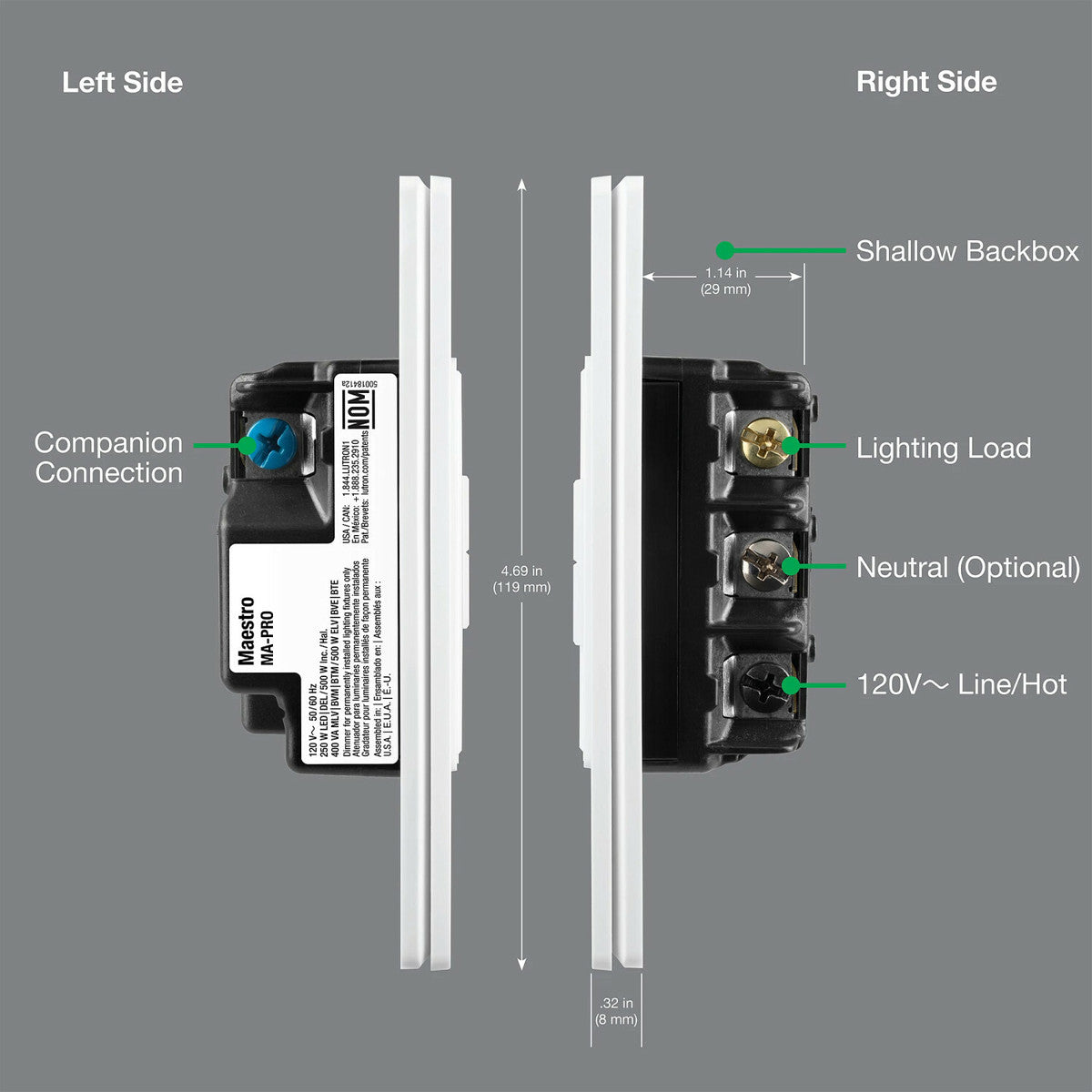

• Connection: Screw terminal
• Enclosure: Plastic
• Frequency Rating: 50 to 60 HZ
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wall
• Number of Poles: 1
• Special Features: Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
• Standard: UL, CSA, NOM
• Item Type: Digital fade dimmer, multi-location/3-way/single-pole
• Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
• Operating Temperature: 32 to 104 F
• Voltage Rating: 120
• Wattage: 600 W
• Wiring Type: Single pole or Multi-location with companion dimmer
• Wiring Requirements: Neutral required for ELV, MLV, Fluorescent ballasts, Hi-Lume 1% LED Drivers
• Indoor / Outdoor: Indoor
• Warranty: 10 years with product registration
• Voltage: 120 V~ 50/60 Hz
• Ratings: 150 W LED
• Ratings_incandescent/halogen: 600 W incandescent/halogen
• Ratings_MLV: 400 VA MLV
• Ratings_Hi-Lume: 20 Hi-Lume 1% 2-wire (LTE) LED Drivers
• Switch Type: Button
• Input Voltage: 120V
• Min Operating Temp: 32 Degrees F
• Width: 2.94"
• Height: 4.69"
