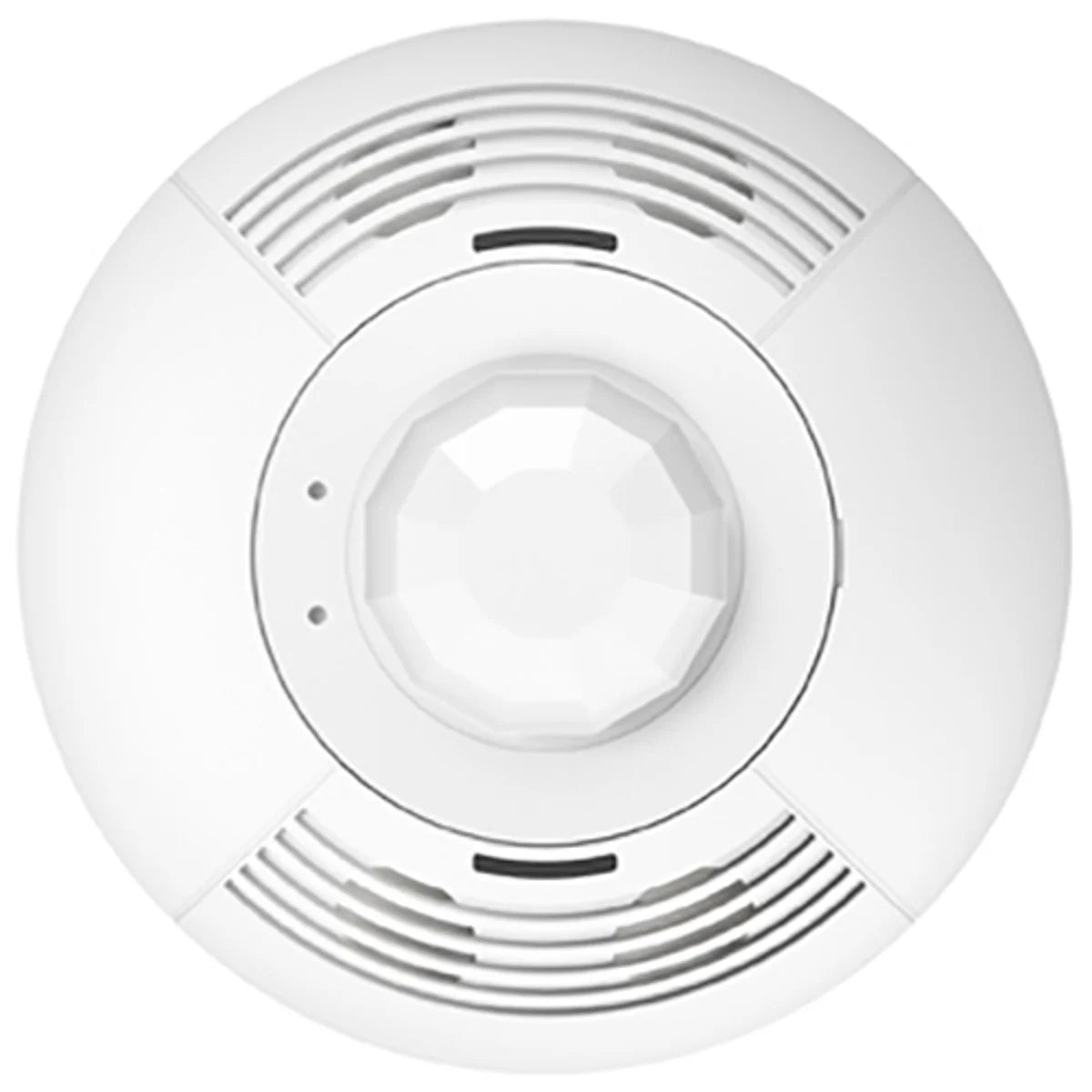

Lutron LOS-CDT-2000R-WH Occupancy Sensor 20-24VDC 2000 FT Coverage

Product Description

The Lutron LOS-CDT-2000R-WH is a dual technology ceiling mount occupancy sensor designed for efficient lighting control. Operating on a voltage range of twenty to twenty-four VDC, this sensor offers coverage of up to two thousand square feet with a 360-degree field of view.

• Dual technology with ultrasonic and passive infrared sensing.
• Coverage of up to two thousand square feet.
• Designed for easy integration with Lutron systems.

Product Highlights

This sensor combines both ultrasonic and passive infrared technologies to provide high sensitivity and reduce false tripping. It adapts automatically, requiring no manual adjustments after installation.

Product Information

Standard Information

• Manufacturer: Lutron Electronics
• Voltage: 20 to 24 VDC

Technical Specifications

• Catalog Number: LOS-CDT-2000R-WH
• Amperage Rating: 33 mA
• Application: Indoor Application
• Color: White
• Dimensions: 4.5 inches diameter x 1.4 inches depth
• Mounting Type: Ceiling
• Control Output: 20 to 24 VDC
• Sensing Range: 2000 ft² (186 m²)
• Viewing Angle: 360 degrees
• Temperature Rating: 32 to 104 F
• Standards/Approvals: UL, cUL Listed
