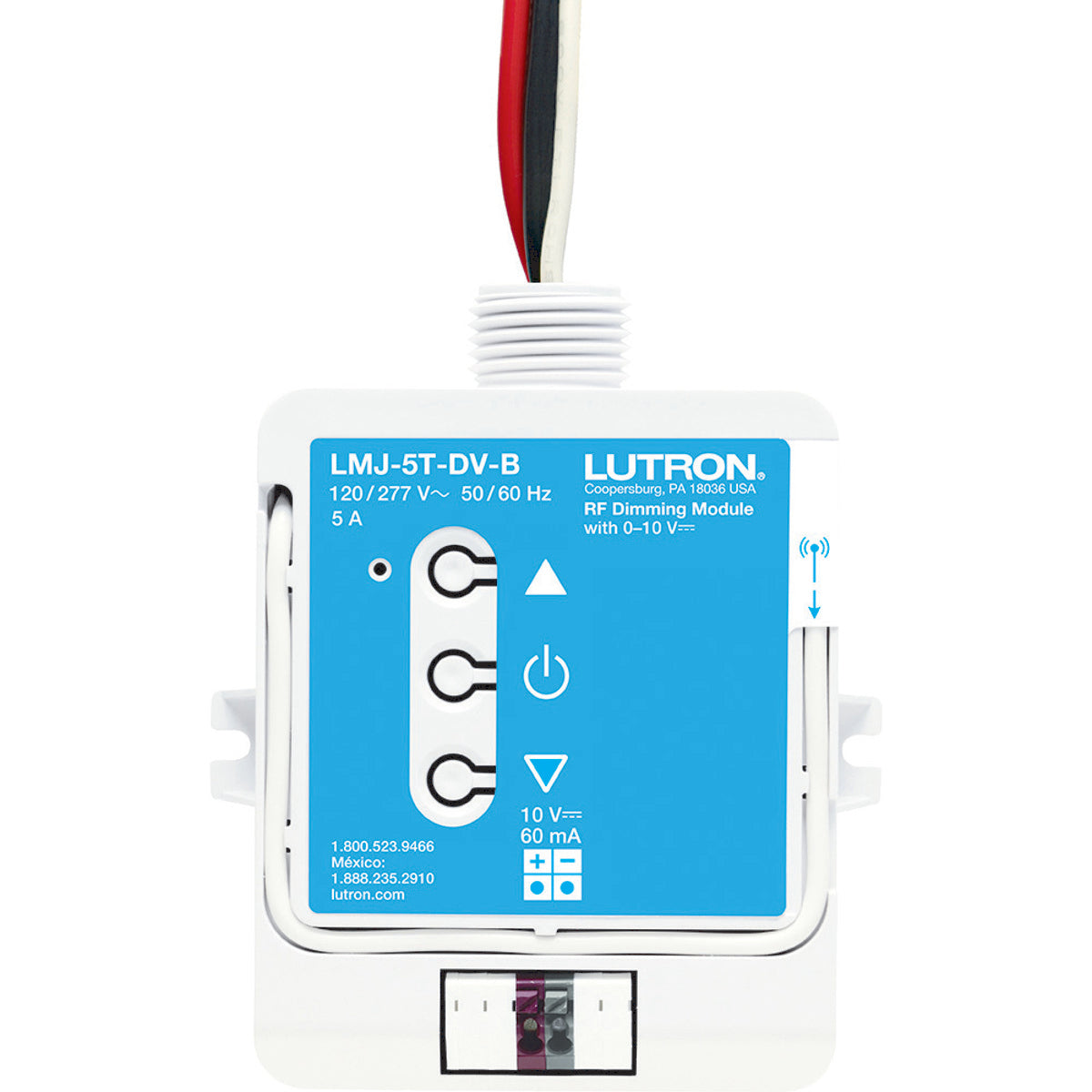

Lutron LMJ-5T-DV-B RF Dimming Module Controls up to 60mA of 0-10V ballasts, or LED drivers, switches up to 5A

Product Description

The Lutron LMJ-5T-DV-B RF Dimming Module controls up to 60mA of 0-10V ballasts or LED drivers, based on input from RadioRA 2 and Homeworks systems, and switches up to 5A. This module utilizes Lutron Clear Connect RF Technology and mounts to an electrical junction box. It is designed for lighting control applications.

• Radio frequency (RF) control operates 0-10 V controlled fluorescent ballasts or LED drivers based on input from RadioRA 2 and Homeworks QS systems.
• 0-10 VDC control link automatically sources or sinks up to 60 mA to third party fixtures.
• Switches line voltage up to 5 A.

Product Highlights

RF dimming module for lighting control with 0-10V control, compatible with RadioRA 2 and Homeworks systems.

Product Information

Standard Information

• Brand: LUTRON
• Manufacturer Part Number: LMJ-5T-DV-B
• Country of Origin: United States

Technical Specifications

• Catalog Number: LMJ-5T-DV-B
• Manufacturer: Lutron Electronics
• Brand: Lutron
• Amperage Rating: 5
• Application: Lighting Control
• Connection: Wire Leads
• Enclosure: Plastic
• Frequency Rating: 434 MHZ
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Junction Box
• Number of Poles: 1
• Special Features: Radio frequency (RF) control that operates 0-10 V controlled fluorescent ballasts or LED drivers based on input from RadioRA 2 and Homeworks QS systems. 0-10 VDC control link automatically sources or sinks up to 60 mA to third party fixtures. Switches line voltage up to 5 A. Configurable high- and low-end trim. Utilizes Lutron Clear Connect RF Technology. Mounts to an electrical junction box through a 1/2 in (21 mm trade-size) knockout opening. Complies with requirements for use in a compartment handling environmental air (plenum) per NEC 2011 300.22 (C)(3).
• Standard: UL, FCC, CSA, IC, NOM
• UPC: 784276079730
• GTIN: 00784276079730
• Item Type: Dimming module for 0-10 VDC control, RF
• Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
• Operating Temperature: 32 to 104 F
• Voltage Rating: 120 to 277
• Wattage: 600 W
• Manufacturer Part Number: LMJ-5T-DV-B
• Product Model: LMJ-5T-DV-B
• Product Name: RF Dimming Module with 0-10 V- Control
• Product Type: Smart Dimmers & Light Switches
• Power Source: AC
• Compatibility: Lutron Devices: RA2 Select RadioRA 2 HomeWorks systems
• Country of Origin: US
