Lutron EC3DT4MWKU2S EcoSystem 5 Percent 3-Wire Compact T4 Compact 2 Lamps Ballast Factor of 0.95 K-can

Product Description

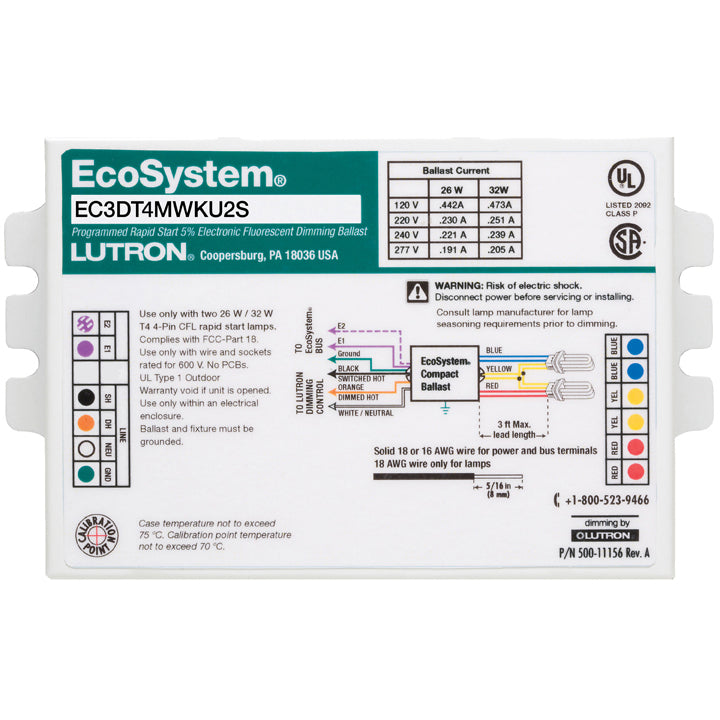

The Lutron EcoSystem 5 Percent 3-Wire and EcoSystem Digital Link Controlled ballast, model EC3DT4MWKU2S, is designed for use with two T4 4-Pin quad tube or triple tube lamps. This ballast operates at a voltage rating of one hundred twenty to two hundred seventy-seven volts AC and features a ballast factor of zero point ninety-five. With programmed rapid start technology, it provides reliable performance and efficiency.

• Dimmable from one hundred percent to five percent for energy savings.
• Compatible with various EcoSystem devices and controls for versatile applications.
• UL listed and CSA certified for safety and reliability.

Product Highlights

This ballast is ideal for lighting control applications, supporting standard three-wire line voltage phase control technology. It maintains low harmonic distortion for consistent power quality, enhances lamp life, and offers end-of-lamp-life protection circuitry.

Product Information

Standard Information

• Manufacturer: Lutron Electronics
• Sub Brand: EcoSystem

Technical Specifications

• Catalog Number: EC3DT4MWKU2S
• Application: Lighting Control
• Power Factor: Greater than 0.95
• Dimmable: Yes
• Frequency Rating: 50/60 Hz
• Voltage Rating: 120/220/240/277 V
• Wattage: 26/32 W
• Dimensions: 4.9 inches (Length) x 3 inches (Width) x 1.29 inches (Height)
